Mainboard D2264
Installing/removing or replacing processor (with heat sink)
!
Disconnect the system from the mains voltage before performing any of the tasks
described below. Details are contained in the operating manual of your system.
Technical data
● AMD Athlon 64/X2 and AMD Sempron with up to 1 GHz Front Side Bus (Hypertransport) in the
AM2 (mPGA 940) design
● A current list of the processors supported by this mainboard is available on the Internet at:
www.fujitsu-siemens.com/mainboards.
► Remove the fan that there may be and the heat sink.
3
2
A
4
5
1

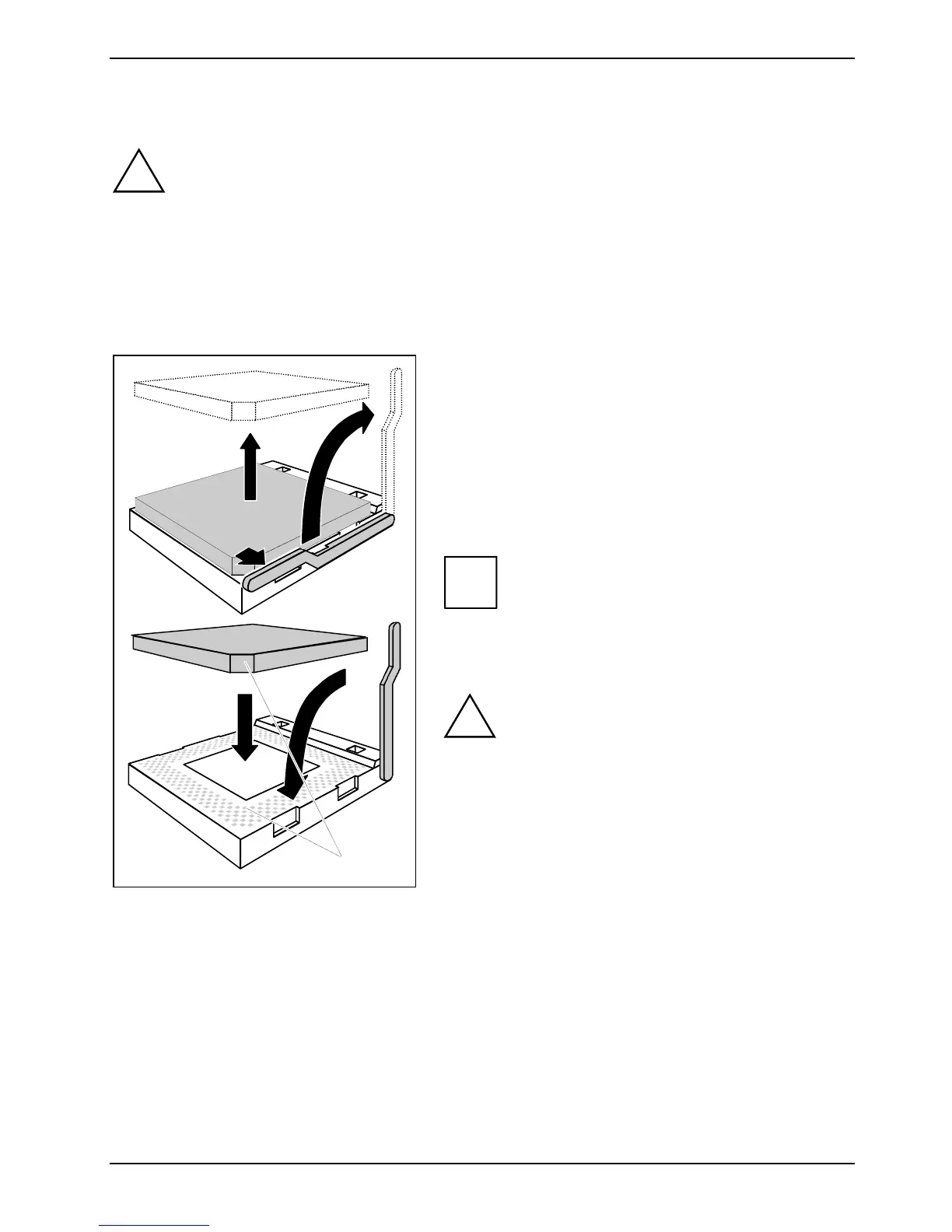

► Pull the lever in the direction of the arrow (1) and
lift it as far as it will go (2).
► Fold up the frame.
► Remove the old processor from the socket (3).
► Insert the new processor in the socket so that the
angled corner of the processor matches the
coding on the socket (A) with regard to the
position (4).
i
The angled corner of the processor can also
be at a different location than shown in the
illustration.
► Push the lever back down until it clicks into
place (5).
!
Please note that, depending on the heat
sink used, different heat sink mounts are
required on the mainboard.
► Depending on the configuration variant, you must
pull a protective foil off the heat sink or coat the
heat sink with heat conducting paste before fitting
it.
► Depending on the processor variant, clips may also be supplied for mounting the heat sink that
fix it in place.
A26361-D2264-Z110-1-7419, edition 2 English - 3
