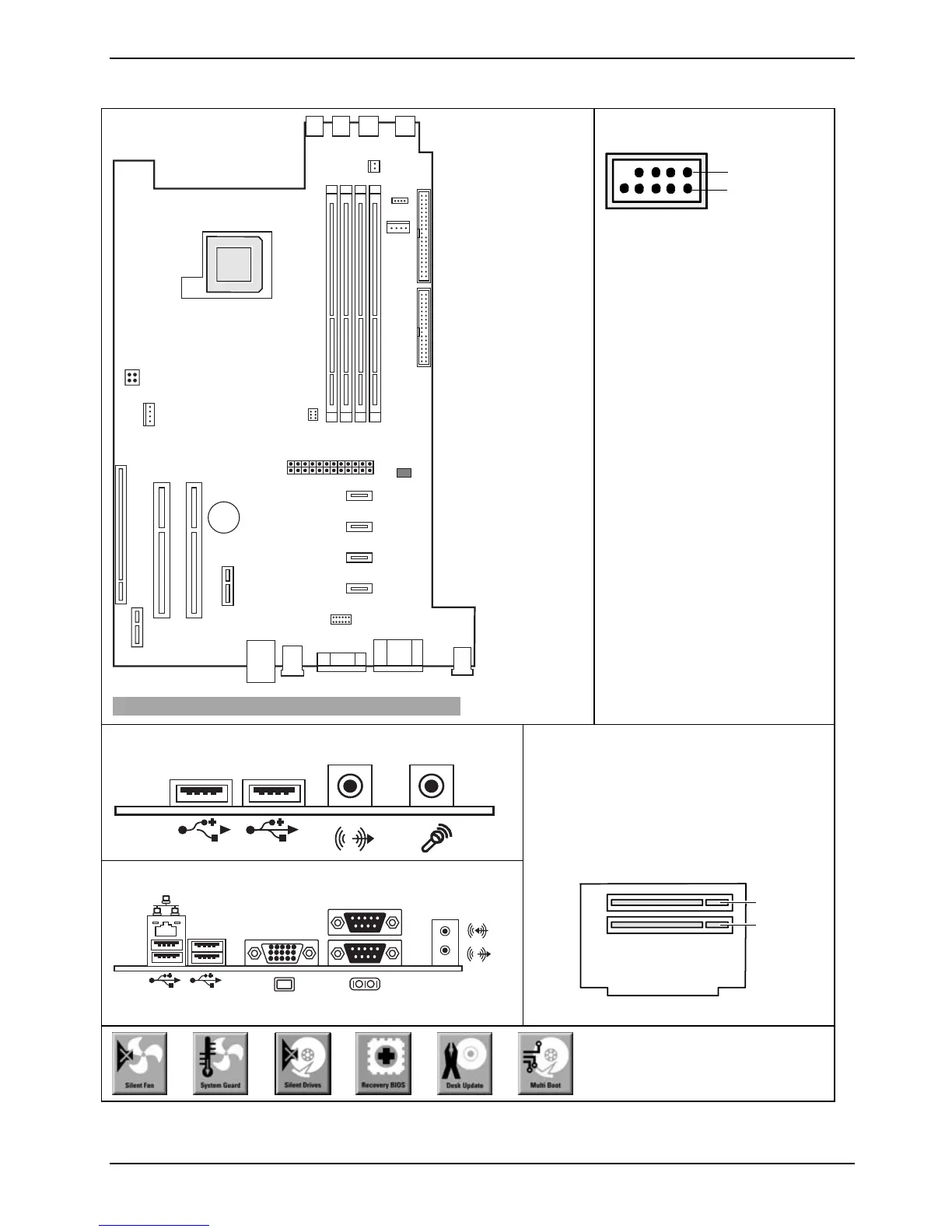

Mainboard D2264 - Internal connectors and slots
PCI
PCI
DVI
USB
Power supply
Fan 2
Battery
Additional
Power supply
Floppy disc
drive
Fan 1
External
speaker
Intrusion
Slot 1
Slot 2
Slot 3
Slot 4
Jumper
SATA4
SATA3
SATA2
SATA1
IDE-
drives 1/2
PCI Express x16
PCI Express x1
PCI 1
PCI 2
TPM
Optionale Komponenten / Optional components
USB - dual channel
1
2
1 = VCC C
2 = VCC D
3 = Data negative C
4 = Data negative D
5 = Data positive C
6 = Data positive D
7 = GND
8 = GND
9 = Key
10 = Not connected
External connectors front
RiserCard (optional)
1 = PCI slot 1
2 = PCI slot 2
External connectors rear
1
2
E318
A26361-D2464-Z110-1-7419, Ausgabe 1
