Choose Proper Parts for Your System
Power Supply Considerations
● Power connectors
D2568 is powered by a split plane PSU with six +12V-rails and 1000W continuous power. One rail is
for each processor, one for systemboard and three for peripherals (e.g. HHDs, add. 6-pin graphics
connector). There are three power connectors on this motherboard as listed below.

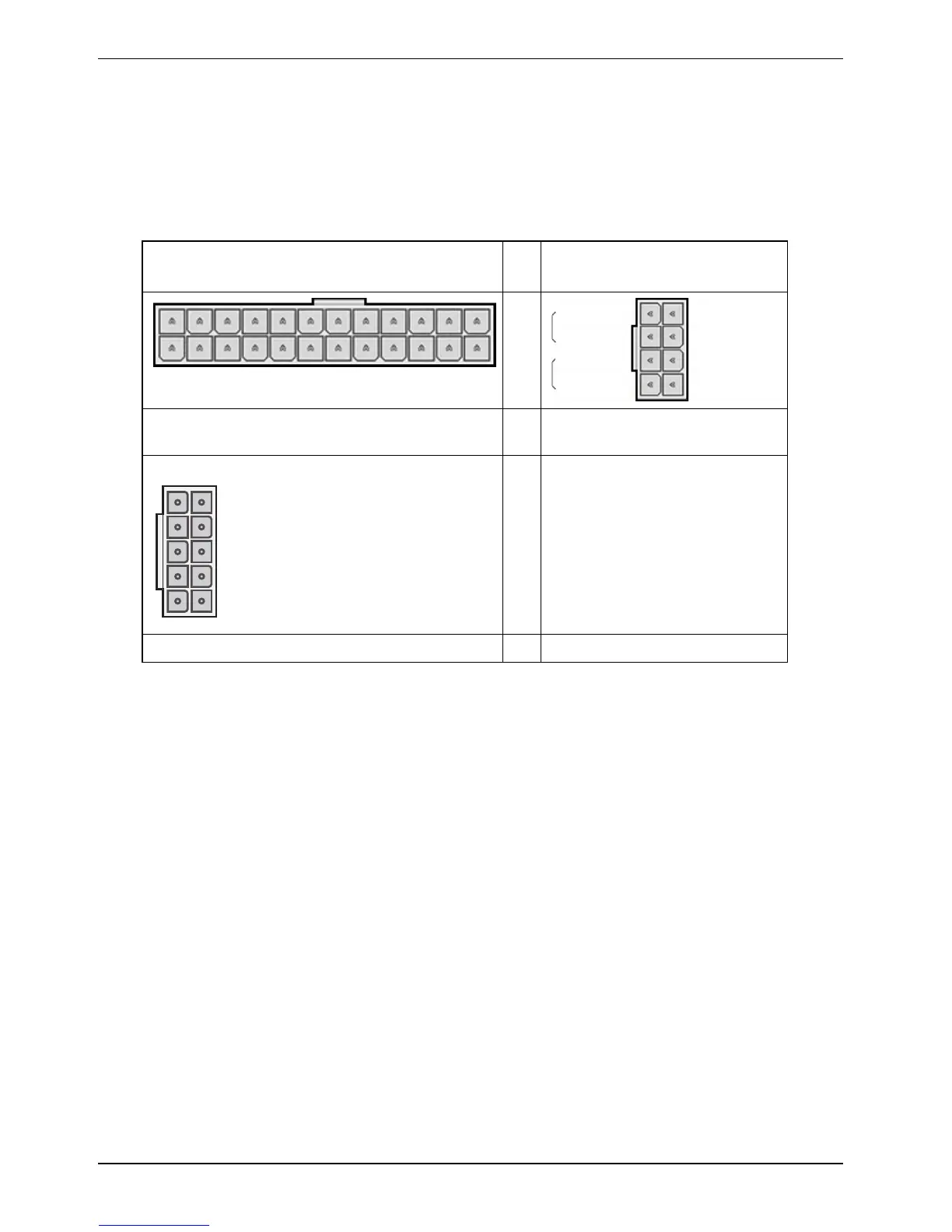

EPS/12V Power Connectors
+
+12V_CPU0
+12V_CPU0
+12V_CPU1
+12V_CPU1 GND
GND
GND
GND
24-pin baseboard power connector 8-pin CPU power connector
(split CPU power planes)
+12 GND
10-pin additional baseboard power connector
By following SSI EEB v3.51 specifications, D2568 is designed with two separate voltage
regulator circuits to provide the power for both onboard processors in separate power rail.
Using a power supply with a combined CPU power plane from the CPU power connector is not
allowed and may cause the system to fail to power up or damage to the power supply.
10 A26361-D2568-Z120-1-7619, edition 1
