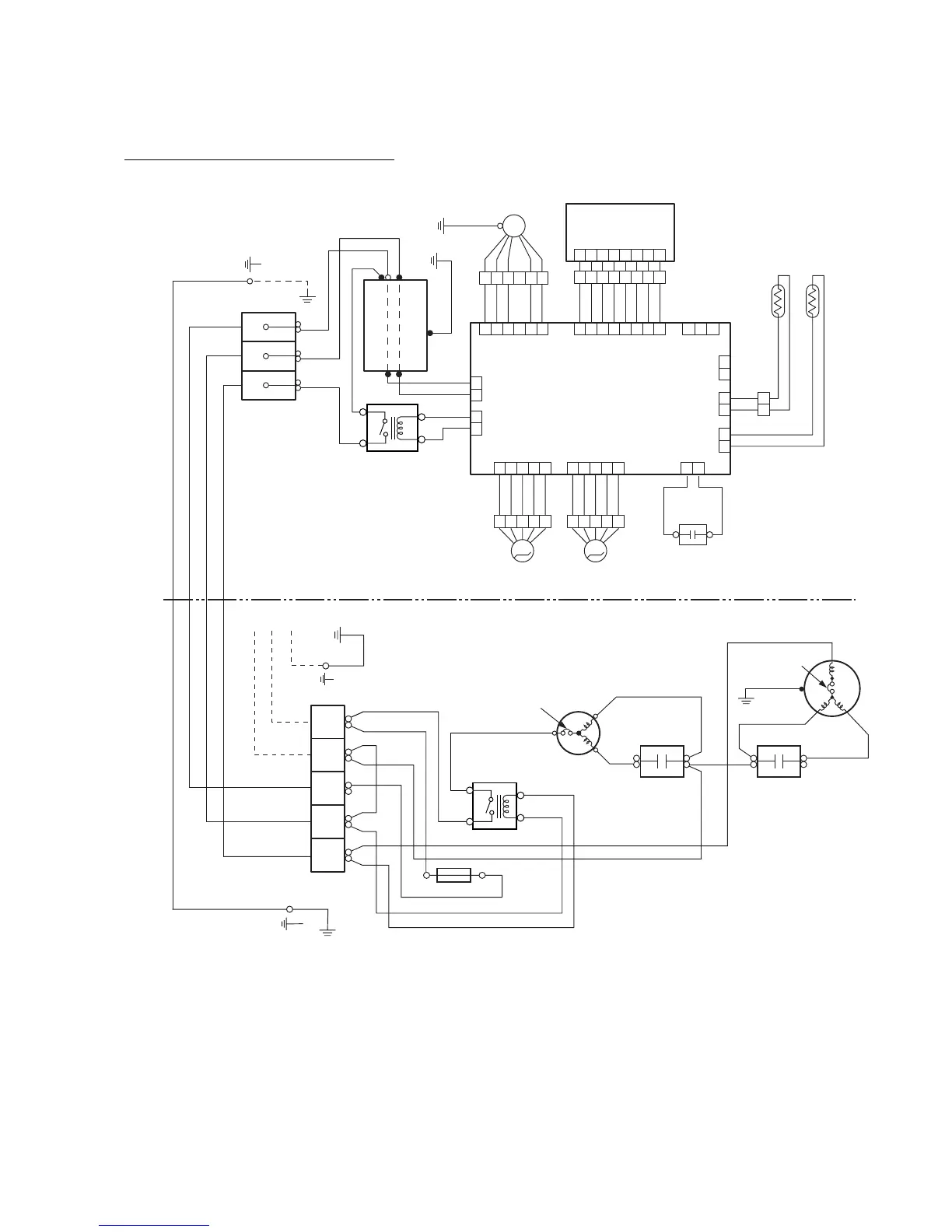

CIRCUIT DIAGRAM
Models : ABY24AGB-W / AOY24ANA
THERMISTOR (PIPE TEMP.) THERMISTOR (ROOM TEMP.)
BROWN RED RED ORANGE
CONTROL BOARD
STEP MOTOR
(UP/DOWN)
INDOOR UNIT
OUTDOOR UNIT
FAN MOTOR
CAPACITOR
YELLOW WHITE WHITE
BROWN RED ORANGE YELLOW
WHITE
BLACK
GRAY
GRAY
GREEN/YELLOW
BLUE GRAY BLUE
DISPLAY BOARD
PURPLE PURPLE
WHITE WHITE
GREEN
CN13
1234567
CN10
12345
CN4
12
CN7 CN6
12 12 12
CN12
12
CN15
3 2 1
BLACK
BLACK
CN8
12
1234567
8
8
12345678
CN201
M
STEP MOTOR
(LEFT/RIGHT)
BROWN RED ORANGE
RED
RED
CN1
12
BLACK
BLACK
N
L
BLACK
BLACK
WHITE
WHITE
YELLOW WHITE
CN11
12345
1234512345
M
FAN MOTOR
MAIN RELAY
FILTER BOARD
TERMINAL
CN5
123456
412536
FM
1
(L)
2
(N)
3
Use T3.15A–250V Fuse on F101
TERMINAL
2
(N)
1
(L)
N
L
WHITE
3
BLUE
BLUE
BLUE
BLACK
BROWN
BROWN
BLACK
BLACK
YELLOW/GREEN
To POWER SUPPLY
MAIN RELAY
FUSE 5A
RED
RED
WHITE
WHITE
WHITE
FAN MOTOR
CAPACITOR
COMPRESSOR
CAPACITOR
INTERNAL
OVERLOAD
PROTECTOR
COMPRESSOR
THERMAL
PROTECTOR
FAN
MOTOR
1
4
5
6
C
R
S
