ADJUSTING THE DIRECTION OF AIR CIRCULATION
Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle).
Begin air conditioner operation before performing this procedure.
Vertical Air Direction Adjustment
This instructions are applicable to “CEILING SUSPENSION TYPE”, “FLOOR CON-
SOLE/UNDER CEILING DUAL TYPE” and “CASSETTE TYPE”.
Press the VERTICAL AIR FLOW DIRECTION SET button .
Each time the button is pressed, the air direction range will change as follows:
1 2 3 4
The remote controller’s display does not change.

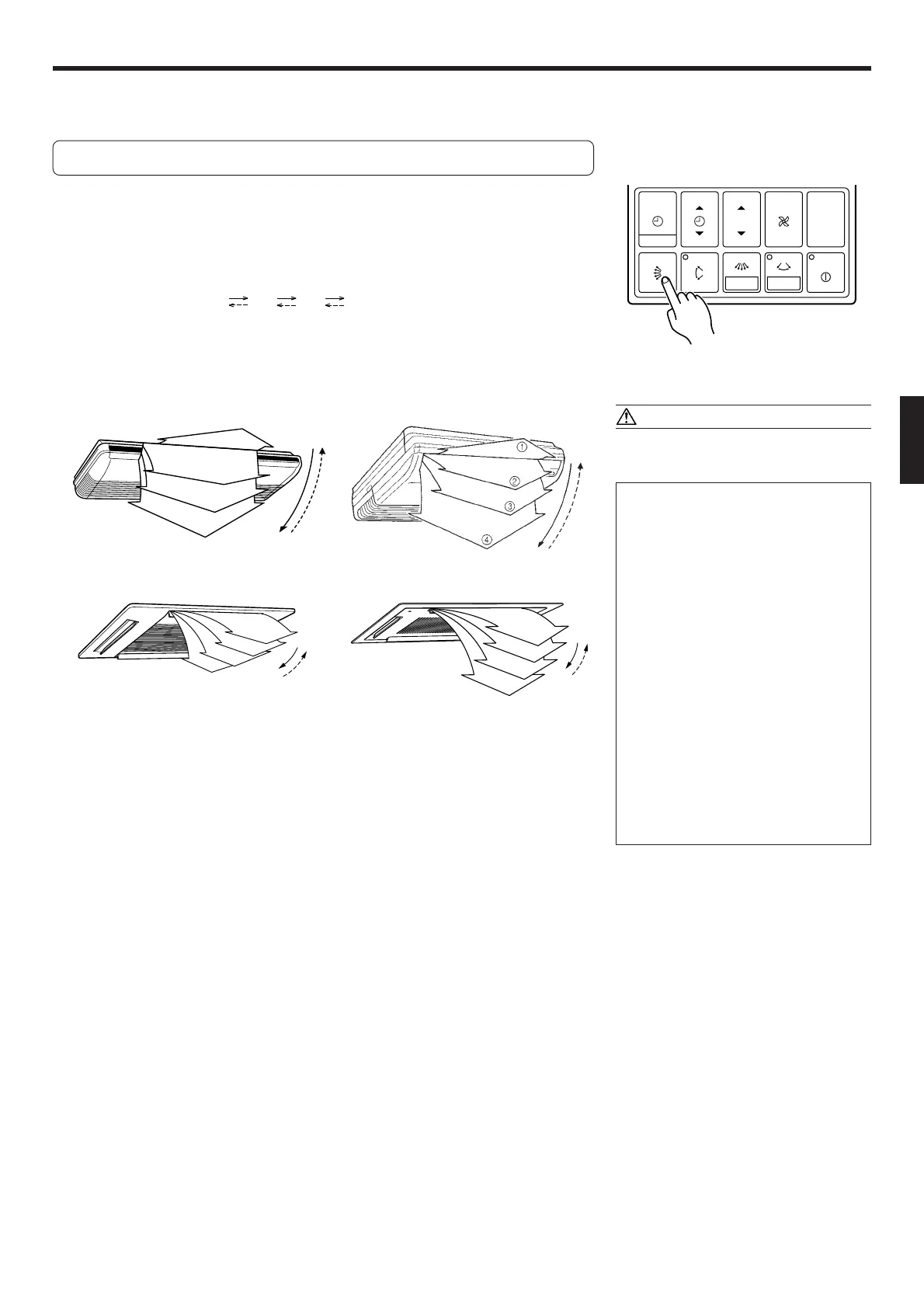

Fig. 13
■ CEILING SUSPENSION TYPE ■ FLOOR CONSOLE/UNDER CEILING
DUAL TYPE
■ CASETTE TYPE
● Use the air direction adjustments within the ranges shown above.
● The vertical airflow direction is set automatically as shown, in accordance
with the type of operation selected.
During Cooling mode : Horizontal flow 1
* During Heating mode : Downward flow 4
● During AUTO mode operation, for the first minute after beginning operation,
airflow will be horizontal 1; the air direction cannot be adjusted during this
period.
DANGER!
Never place fingers or foreign objects inside
the outlet port could cause personal injury.
● Always use the remote controller’s AIR
FLOW DIRECTION button to adjust the
UP/DOWN air direction flap or RIGHT/
LEFT air direction louvers. Attempting
to move them manually could result
in improper operation; in this case,
stop operation and restart. The flaps
should begin to operate properly
again.
● During use of the Cooling mode, do not
set the UP/DOWN air direction flap in
the 4 position for long periods of time,
since water vapor may condense near
the outlet port and drops of water may
drip from the air conditioner.
● When used in a room with infants, chil-
dren, elderly or sick persons, the air
direction and room temperature
should be considered carefully when
making settings.
Example: When set to vertical air
direction.
TIMER
MODE
START/STOP
CLOCK ADJUST
SET TIME TEMP./DAY FAN
CONTROL
MASTER
CONTROL
SET
DAY OFF
1
2
3
4
1
2
3
4
1
2
3
4
