En-3
FEATURES AND FUNCTIONS
AUTOMATIC OPERATION
HEAT & COOL MODEL (REVERSE CYCLE)
Merely press the START/STOP button, and the unit will be-
gin automatic operation in either the Heating, Cooling or
Monitor modes as appropriate, in accordance with the ther-
mostat setting and the actual temperature of the room.
WEEKLY TIMER FEATURES
● Set different operating times for each day of the week.
● Set one or two operating spans (one or two ON times
and one or two OFF times) per day.
● Set time to a resolution of 5 minutes.
● OFF time can be carried over to the subsequent day.
● Use the “DAY OFF” setting to cancel operation for any
day of the coming week (one-time cancellation).

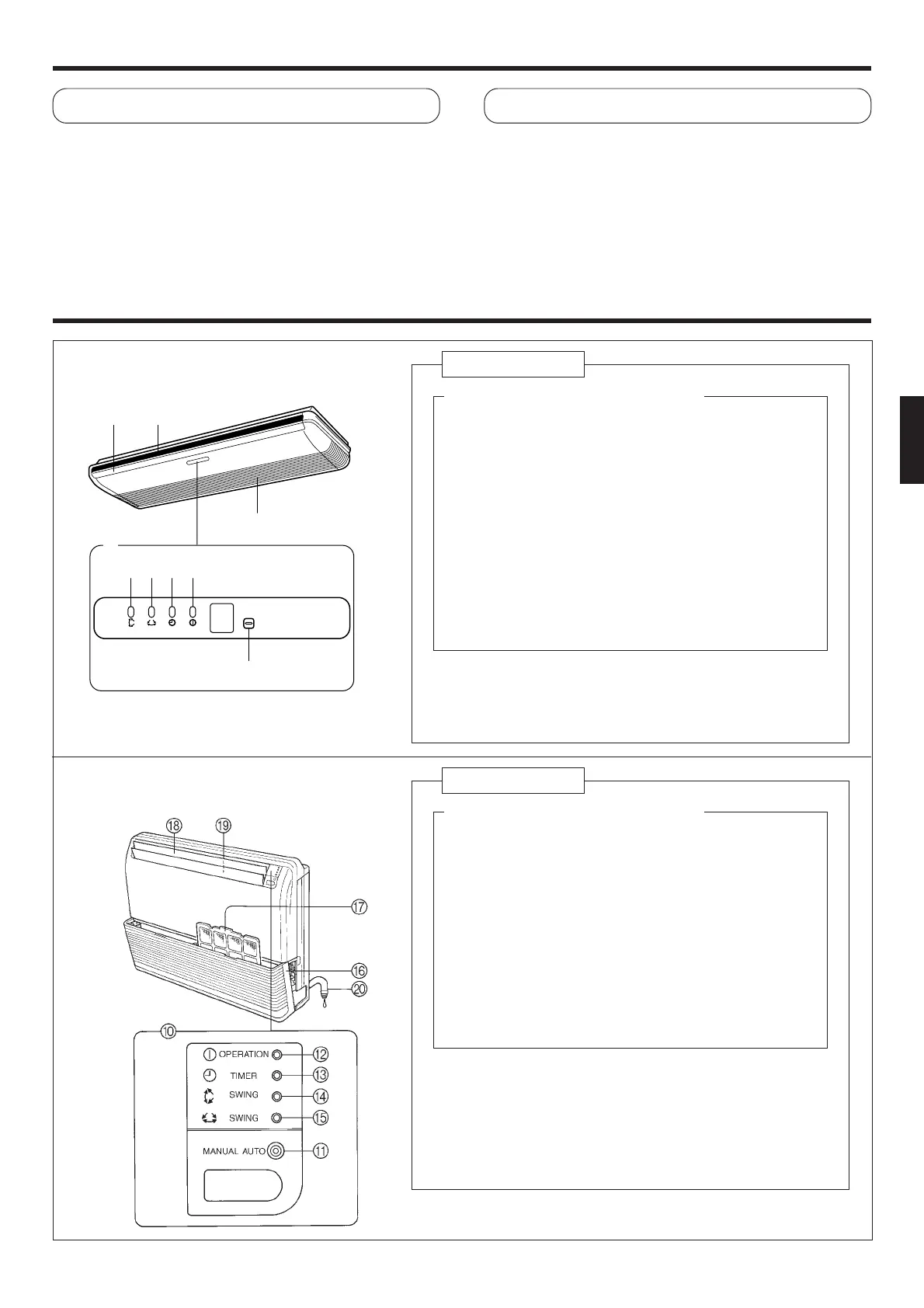

NAME OF PARTS
SWING SWING TIMER
OPERATION
MANUAL
AUTO
3456
2
1
8
7
9
■ CEILING SUSPENSION TYPE
Fig. 3 Indoor Unit
0 Operating Control Panel (Fig. 4)
A MANUAL AUTO button
This button has no function on this model of equipment.
B OPERATION Indicator Lamp (red)
C TIMER Indicator Lamp (green)
D SWING Indicator Lamp (orange)
(VERTICAL SWING)
E SWING Indicator Lamp (orange)
(HORIZONTAL SWING)
● If the TIMER indicator lamp flashes when the timer is
operating, it indicates that a fault has occurred with
the timer setting (See Page 25 Auto Restart).
F Intake Grille
G Air Filter
H UP/DOWN Air Direction Flaps
I RIGHT/LEFT Air Direction Louvers
(behind UP/DOWN Air Direction Flaps)
J Drain Hose
■ FLOOR CONSOLE/
UNDER CEILING DUAL TYPE
Fig. 1 Indoor Unit
1 Operating Control Panel (Fig. 2)
2 MANUAL AUTO button
This button has no function on this model of equip-
ment.
3 OPERATION Indicator Lamp (red)
4 TIMER Indicator Lamp (green)
5 SWING Indicator Lamp (orange)
(HORIZONTAL SWING)
6 SWING Indicator Lamp (orange)
(VERTICAL SWING)
● If the TIMER indicator lamp flashes when the timer is
operating, it indicates that a fault has occurred with
the timer setting (See Page 25 Auto Restart).
7 Intake Grille
8 UP/DOWN Air Direction Flap
9 RIGHT/LEFT Air Direction Louvers
(behind UP/DOWN Air Direction Flap)
Fig. 1
Fig. 2
Fig. 3
Fig. 4
