En-17
TIMER
MODE
START/STOP
CLOCK ADJUST
SET TIME TEMP./DAY FAN
CONTROL
MASTER
CONTROL
SET
DAY OFF
About Vertical Airflow Swing Operation
● The range of swing is relative to the currently set airflow
direction.
Air direction range (See page 15, Fig.13)
● If the swing range is not as desired, use the remote con-
troller’s VERTICAL AIR FLOW DIRECTION SET button to
change the range of swing.
● The SWING operation may stop temporarily when the air
conditioner’s fan is not operating, or when operating at
very low speeds.
● During use of the Cooling mode, do not set the air UP/
DOWN direction flap, in the 4 position for long periods
of time, since water vapor may condense near the outlet
port and drops of water may drip from the air conditioner.
To select Horizontal Airflow SWING Operation
This instructions are applicable to “CEILING SUSPENSION TYPE” and “FLOOR
CONSOLE/UNDER CEILING DUAL TYPE”.

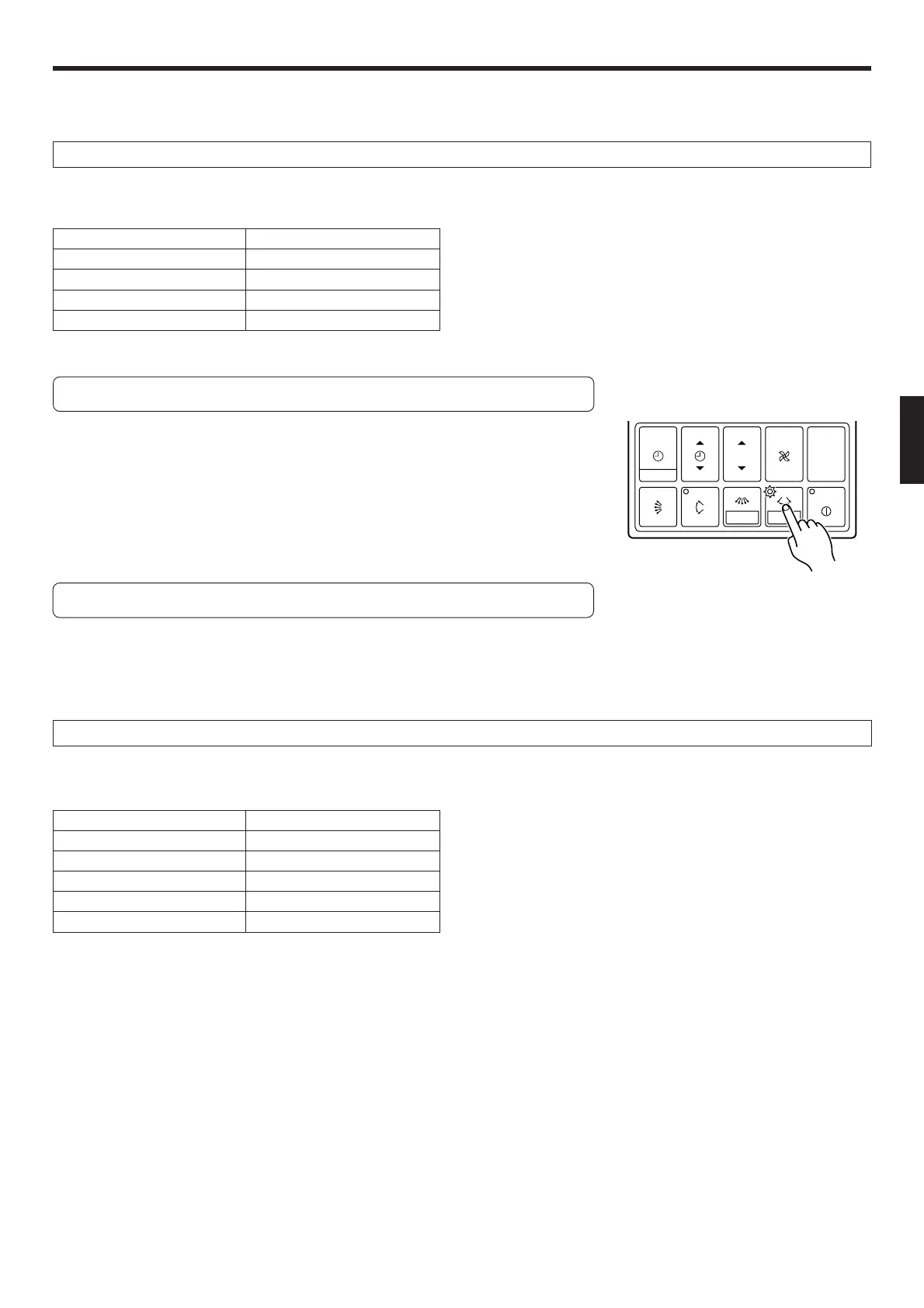

Press the HORIZONTAL SWING button.
The remote controller’s HORIZONTAL SWING lamp (orange) **and indoor unit’s
SWING indicator lamp (HORIZONTAL SWING) (orange) will light up.
In this mode, the RIGHT/LEFT air direction louvers will swing automatically to
direct the airflow both right and left.
Air flow direction set
1
2
3
4
Range of swing
1 to 3
2 to 4
2 to 4
1 to 4 (All range)
Example: When set to horizontal
swing.
To Stop Horizontal airflow SWING Operation
Press the HORIZONTAL SWING button once again.
The remote controller’s HORIZONTAL SWING lamp **and indoor unit’s SWING
indicator lamp (HORIZONTAL SWING) will go out.
Airflow direction will return to the setting before swing was begun.
About Horizontal Airflow Swing Operation
● If the swing range is not as desired, use the remote con-
troller’s HORIZONTAL AIR FLOW DIRECTION SET button
to change the range of swing.
● The SWING operation may stop temporarily when the air
conditioner’s fan is not operating, or when operating at
very low speeds.
Air flow direction set
1
2
3
4
5
Range of swing
1 to 5 (All range)
1 to 3
2 to 4
3 to 5
1 to 5 (All range)
Air direction range (See page 16, Fig.14)
● The range of swing is relative to the currently set airflow
direction.
Instructions relating to “the indoor unit’s indicator lamp” (**) are applicable to “CEILING SUSPENSION TYPE” and “FLOOR
CONSOLE/UNDER CEILING DUAL TYPE”.
SWING OPERATION
To Next Page
