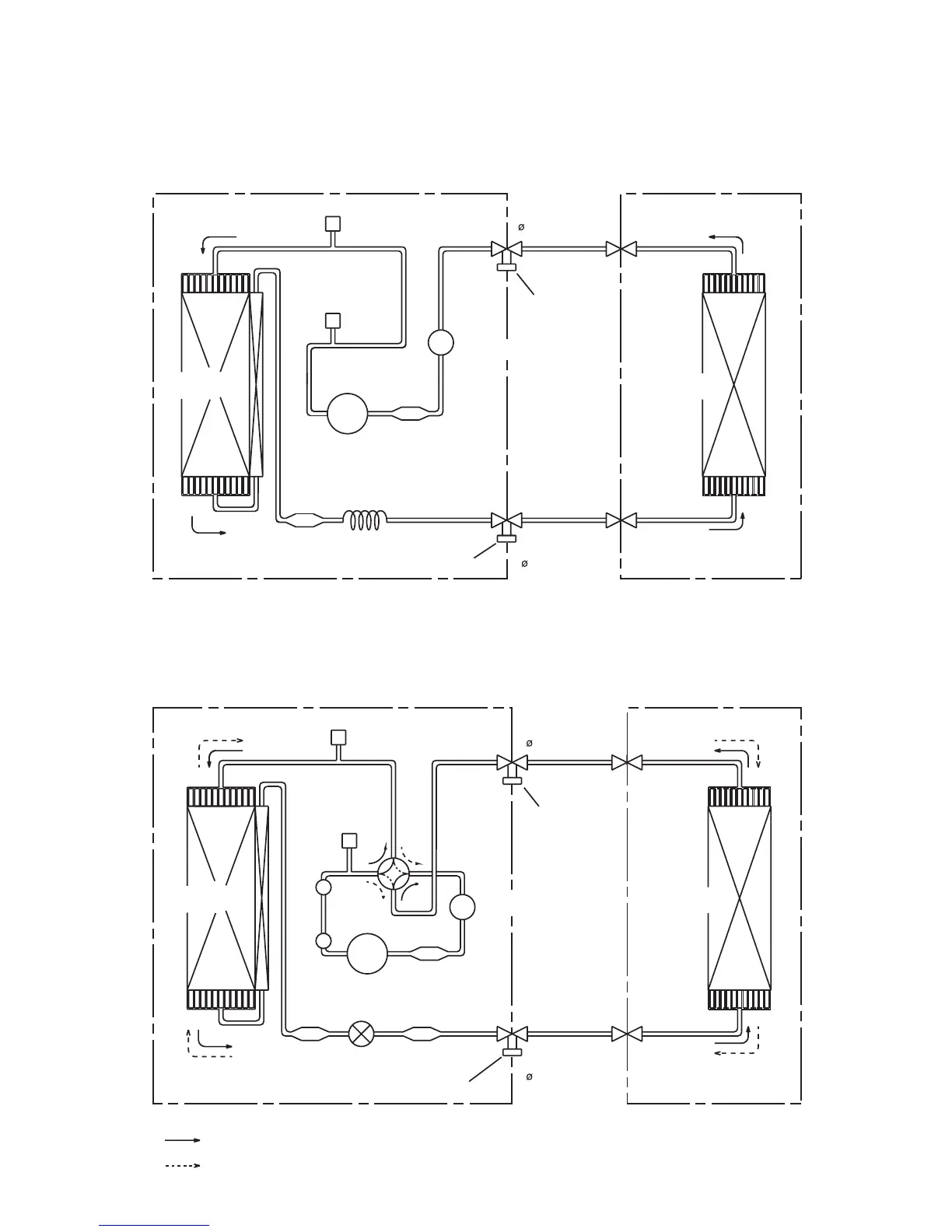

REFRIGERANT SYSTEM DIAGRAM
OUTDOOR UNIT INDOOR UNIT
EVAPORATOR
19.05mm (3/4")
9.52mm (3/8")
ACCUMULATOR
REFRIGERANT PIPE
CHARGING
VALVE
CHARGING
VALVE
CHARGING VALVE
4-WAY
VALVE
CHARGING VALVE
REFRIGERANT PIPE
REFRIGERANT PIPE
REFRIGERANT PIPE
CONDENSER
STRAINER
STRAINER
CAPPILLARY
TUBE
COMPRESSOR
PRESSURE
CHECK VALVE
PRESSURE
CHECK VALVE
HIGH
PRESSURE
SWITCH
HIGH
PRESSURE
SWITCH
OUTDOOR UNIT
INDOOR UNIT
19.05mm (3/4")
Cooling
Heating
EVAPORATOR
9.52mm (3/8")
ACCUMULATOR
STRAINER
COMPRESSOR
EXPANSION
VALVE
STRAINER
CONDENSER
STRAINER
MUFFLER x 2
2005.10.31 4
Models : ABY54FBAG / AOY54FMAYT
Models : ABY54UBAG / AOY54UMAYT
