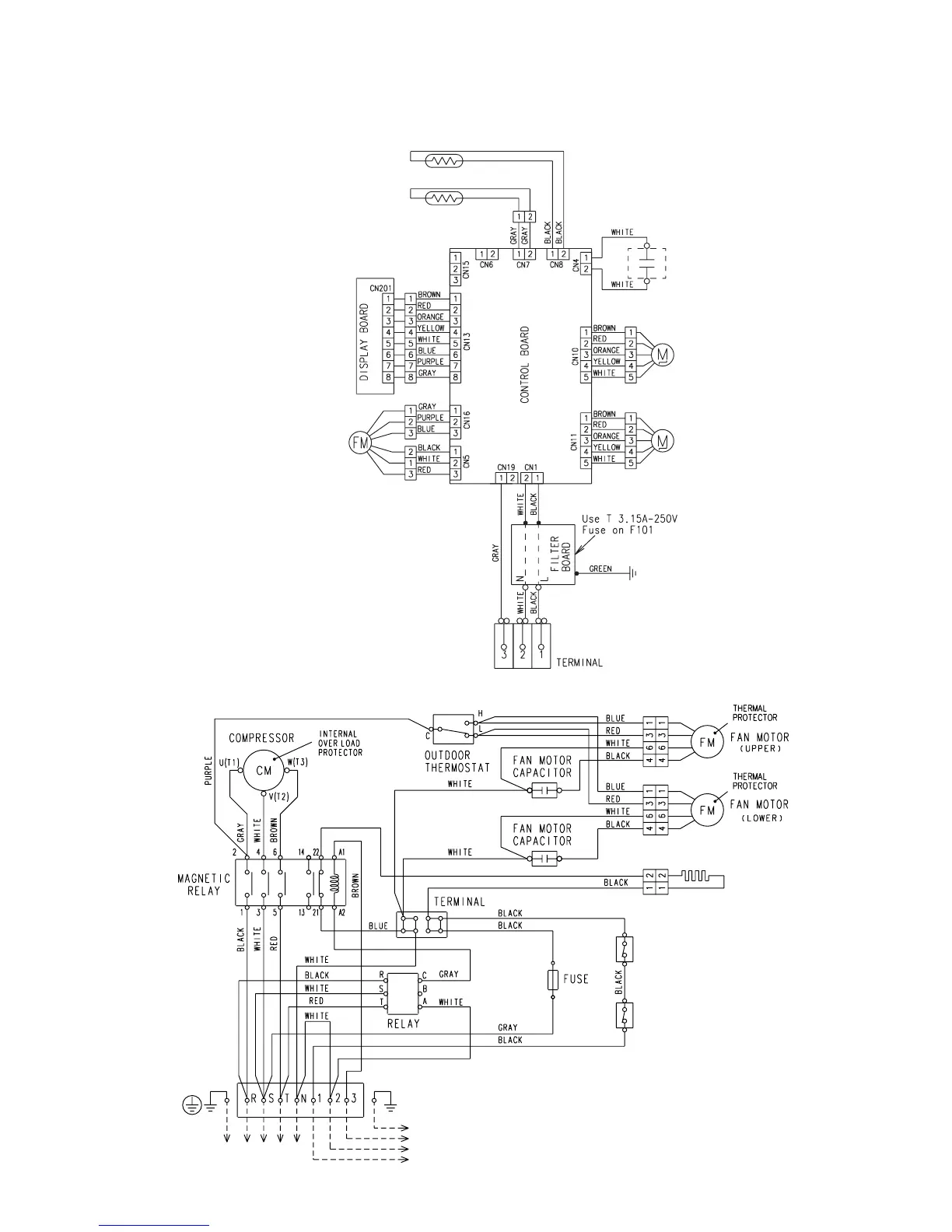

CIRCUIT DIAGRAM
2005.10.31 5
Models : ABY54FBAG
Models :AOY54FMAYT
Fan motor
Step motor
( left / right )
Step motor
( up / down )
Fan motor capacitor
Room thermistor
Pipe thermistor
Belt heater
Thermostat
(discharge pipe)
High pressure switch
to power supply
to indoor unit
Terminal
blue
