2. Dimensions

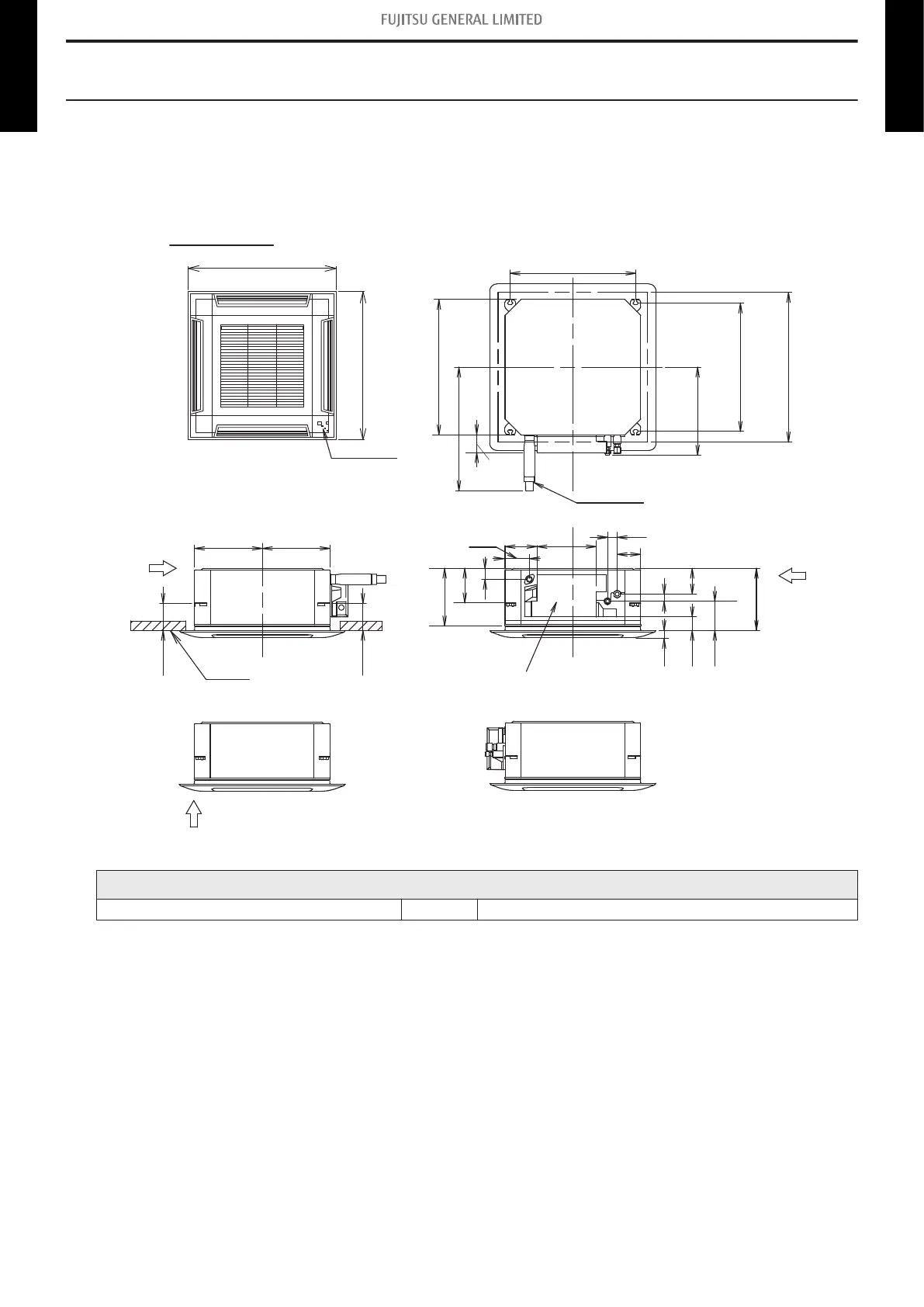

2-1. Indoor unit
¢
Models: ACUH09LUAS1, ACUH12LUAS1, and ACUH18LUAS1
Unit: in (mm)
Ceiling
B
View A
22-7/16 (570): Indoor unit
Hanging bolt position
a: Ceiling openings
20-7/8 (530)
Hanging bolt position
Drain hose
A
4-7/8 (124)
Control Box
C
24-7/16 (620)
24-7/16 (620)
IR receiver
Grid type grille
View B
View C
20-7/8
(530)
2-15/16
(75)
14-9/16
(370)
21-1/4 (540)
11-1/4
(285)
11-1/4
(285)
4-1/2 (114)
4-1/2 (114)
10-5/16
(262)
9-5/8
(245)
5-13/16
(146)
1-9/16
(40)
4
(102)
5-5/16
(135)
9-13/16
(250)
1-3/5
(40)
3-7/8
(99)
1-3/16
(30)
1-3/16 (30)
2-5/16 (58)
4-1/8
(108)
a: Ceiling openings
Cassette grille (Option [Grid type]) in (mm) 22-13/16 to 24 (580 to 610)
2-1. Indoor unit - (01-4) - 2. Dimensions
