Fujitsu ACUH09LUAS1 - Outdoor Unit Dimensions

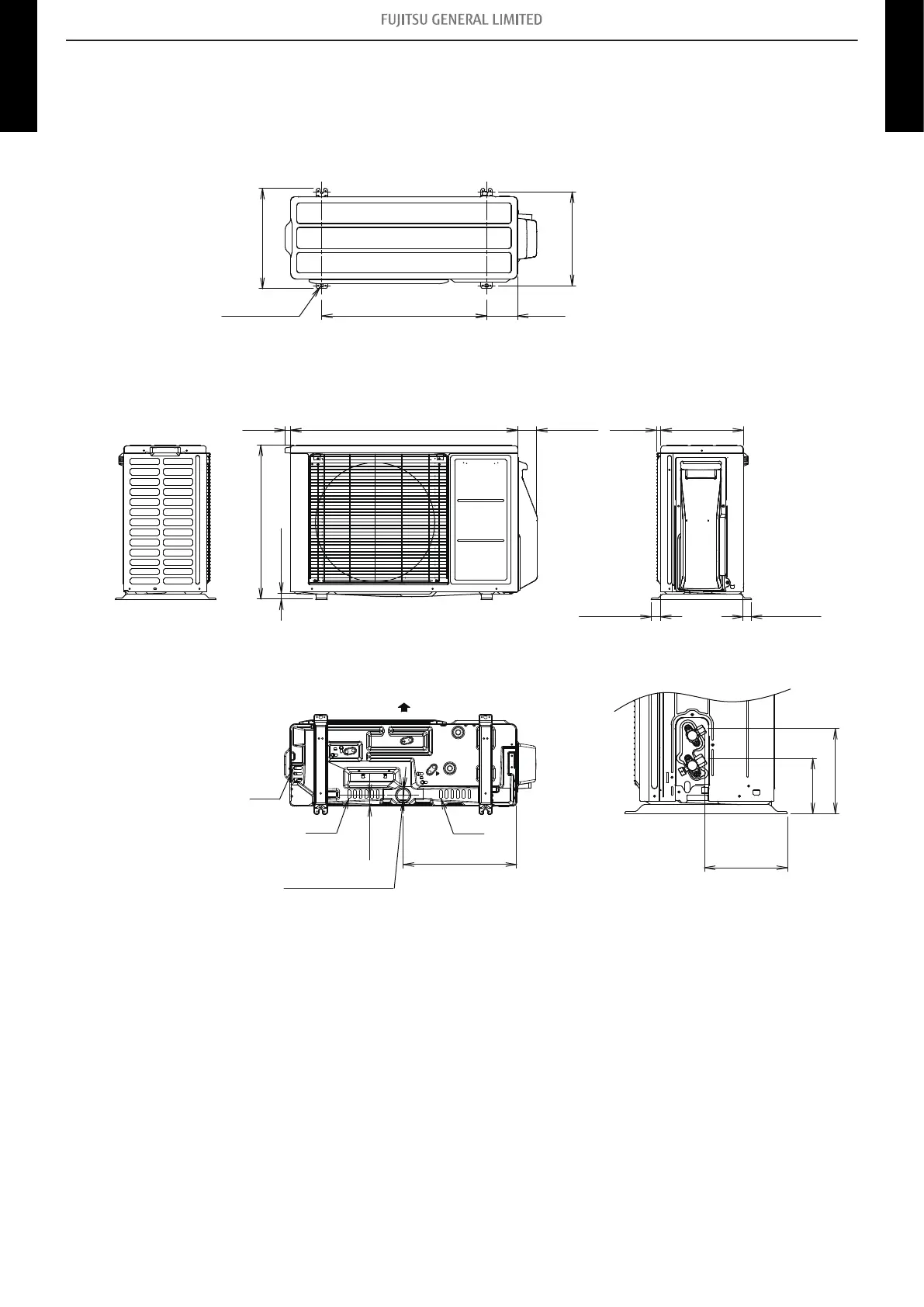

2-2. Outdoor unit
¢ Models: AOUH09LUAS1
Top view
22-13/16 (580) 4-5/16 (109)
13 (330)
13-7/8 (353)
Pitch of bolts for installation
Pitch of bolts for installation
4- M1 0 hole
31-7/16 (799) 2-11/16 (68)
1-5/16 (33) 1-3/16 (30)
3/4 (19)
21-5/16 (542)
13/16 (20)
Side viewSide view
Front view
11-7/16 (290)1/2 (13)
Unit: in (mm)
Bottom view
Airflow
Drain port Ø1-5/8 (42)
Side view (Valve part)
4-3/4 (120)
4-1/4 (184)
7-1/16 (180)
1-7/16 (37)
15-11/16 (399)
Hole
Hole
Hole
2-2. Outdoor unit - (01-6) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION
