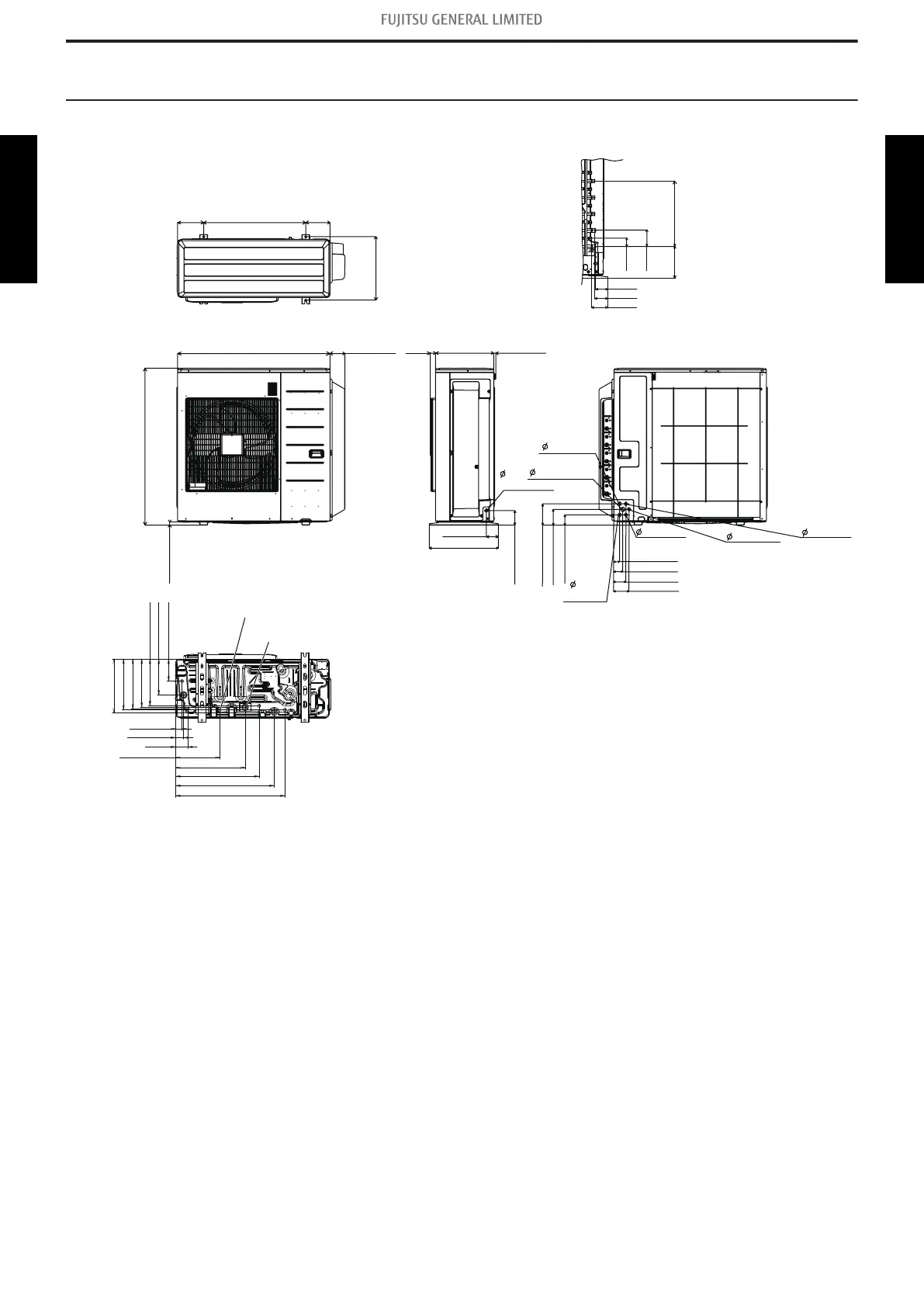

2. Dimensions
2-1. Model: AOU45RLXFZ
6-9/16 (166)
25-9/16 (650)
6-1/16 (154)
16-1/8 (410)
38-3/16 (970)
3-3/4 (95)
39-5/16 (998)
13/16 (21)
1-5/16
(33)
14-9/16
(370)
9/16 (14)
(cable port)
3-5/8 (92.5)
3 (76.3)
17-5/16 (440)
5-5/16 (135)
3-15/16 (100)
2-9/16 (65)
7/8 (22.2)
(cable port)
1-2/16 (27.8)
(cable port)
1-1/2 (38)
2-5/16 (58)
3-1/16 (78)
3-7/8 (98)
7/8 (22.2)
(cable port)
7/8 (22.2)
(cable port)
7/8 (22.2)
(cable port)
Unit: in (mm)
7/8
(22.2)
(cable port)
7/8
(22.2)
3-15/16 (100)
3-3/16 (81)
3 (76)
2-1/16 (52)
4-1/8 (104)
7-13/16 (198)
7-13/16 × 4 = 16-3/8
(104 × 4 =416)
Top view
Rear view
Front view
Side view
Bottom view
5-1/2 (140)
8-15/16 (227)
11-5/8 (296)
12 (305)
1-9/16 (40)
12-3/8 (315)
12-5/8 (321)
13-7/16 (341)
1-15/16 (50)
10-15/16 (278)
3 (76)
17-1/4 (438)
20-11/16 (526)
24-1/2 (622)
27-3/16 (690)
Drain cap mounting hole × 7
Drain pipe mounting
hole × 1
- 240 -
2-1. Model: AOU45RLXFZ 2. Dimensions
OUTDOOR UNIT AOU45RLXFZ OUTDOOR UNIT AOU45RLXFZ
