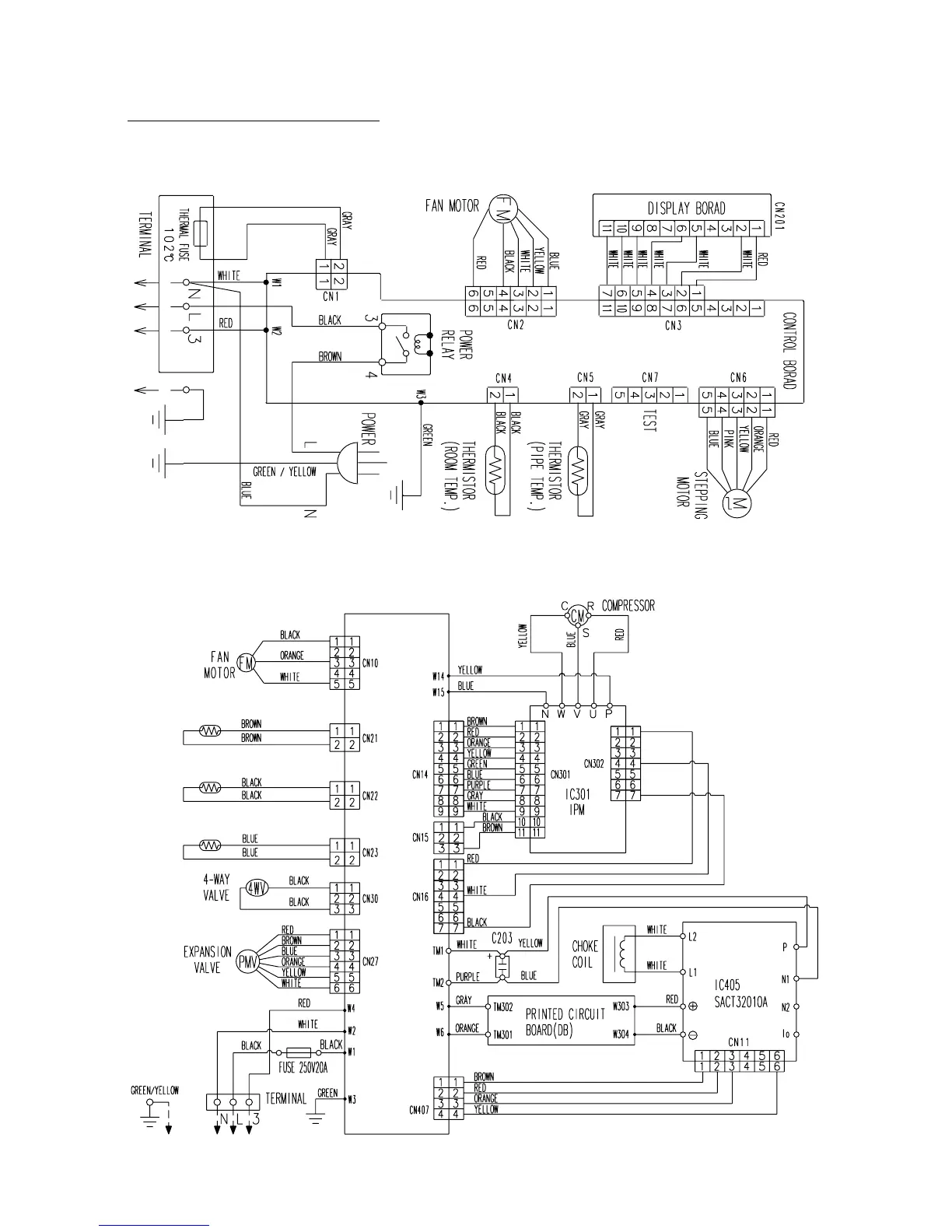

CIRCUIT DIAGRAM
INDOOR UNIT
OUTDOOR UNIT
Models : ASY9LSACW / AOY9LSAC
ASY12LSACW / AOY12LSAC
3
2004.10.07
Controller PCB
Thermistor
(pipe)
Thermistor
(discharge pipe)
Thermistor
(outdoor temp.)
