Input signal type
• Indoor unit
Input signal type is only "Edge".
• External input and output PCB
The input signal type can be selected.

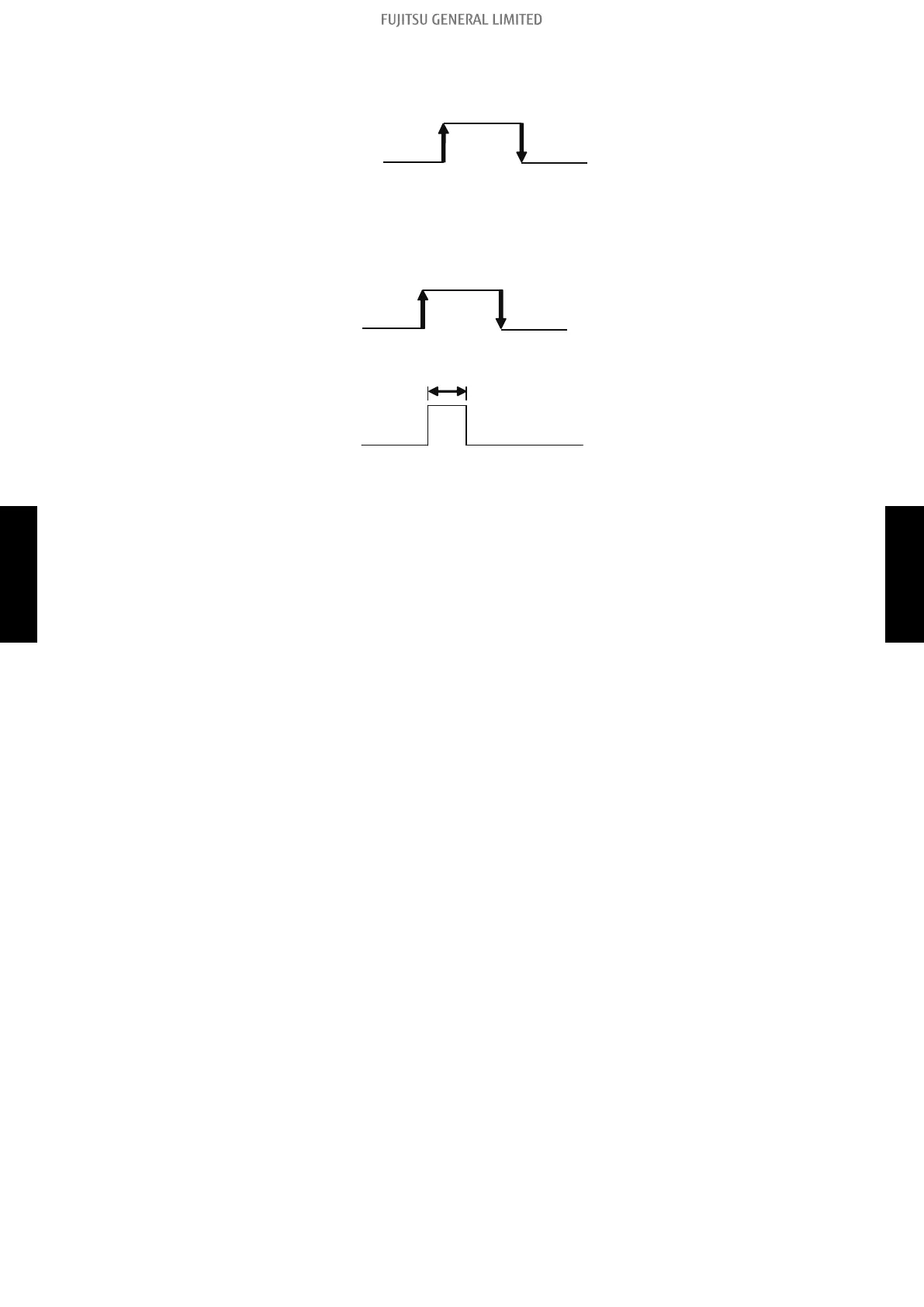

Signal type (edge or pulse) can be switched by the DIP switch 2 (SW2) on the External input and
output PCB.
Edge
Pulse
The width of pulse must be
longer than 200 msec.
4-3. Combination of external input and output - (05-27) - 4. External input and output
