Fujitsu AMUG36LMAS

¢
Space requirement
Provide sufficient installation space for product safety.

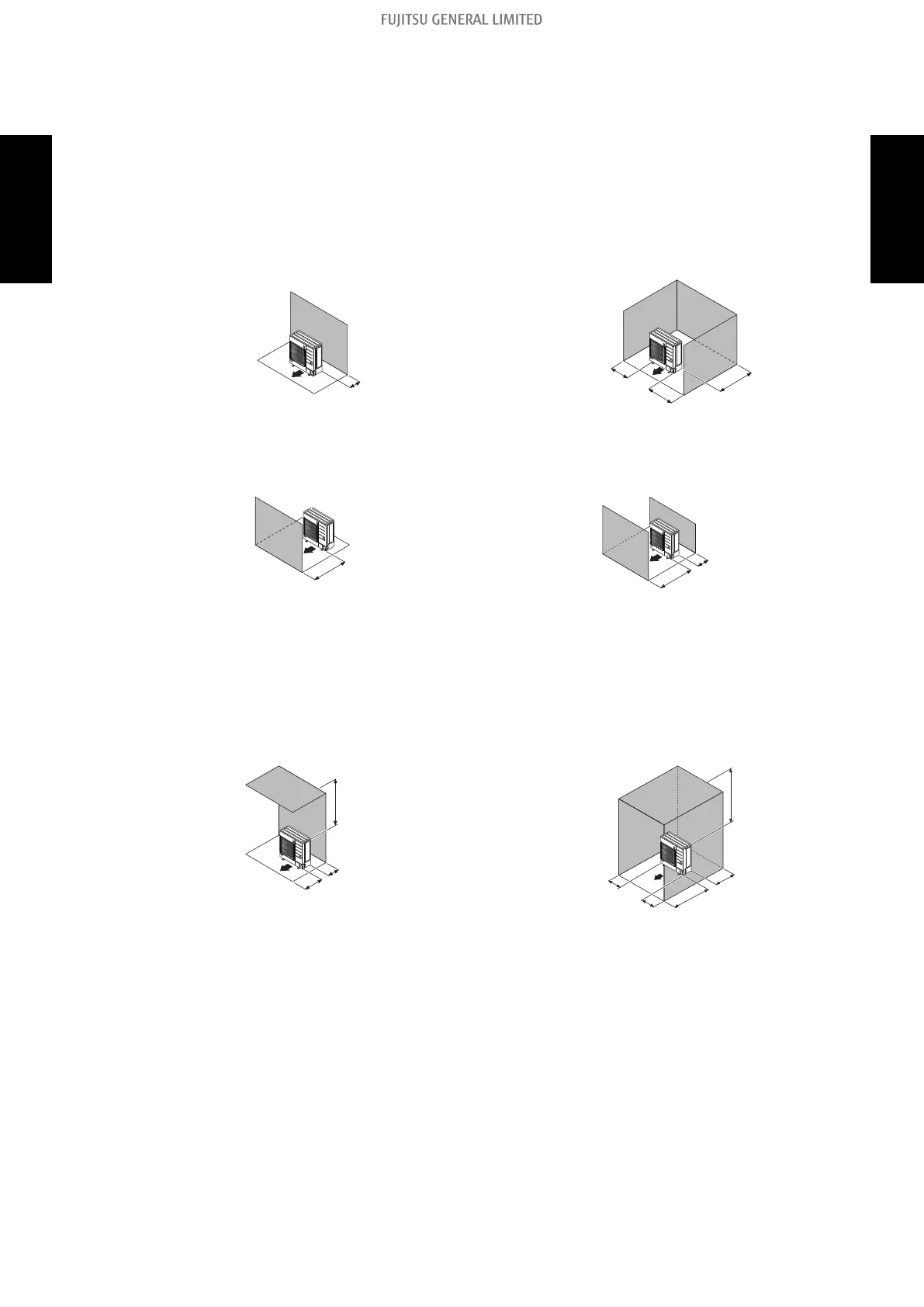

 Single outdoor unit installation
• When the upper space is open:
Unit: in (mm)
When there are obstacles at the rear only. When there are obstacles at the rear and
sides.
6 (150)
or more
8 (200)
or more
12 (300)
or more
8 (200)
or more
When there are obstacles at the front only. When there are obstacles at the front and
rear.
40 (1000)
or more
40 (1000)
or more
6 (150)
or more
• When there is an obstruction in the upper space:
Unit: in (mm)
When there are obstacles at the rear and
above.
When there are obstacles at the rear, sides,
and above.
6 (150)
or more
Max. 19 (500)
40 (1000)
or more
40 (1000)
or more
6 (150)
or more
6 (150)
or more
6 (150)
or more
Max. 19 (500)
