Fujitsu AO G12KATA Series Design & Technical Manual

¢
Mini duct type, Slim duct type, and Medium static pressure duct
type
Front view
Microphone
Side view
Product
Air
1.5 m
2 m 1 m
Microphone
Measuring duct
(Set the static pressure
as rating in this area.)
Measuring duct
¢
Wall mounted type
0.8 m
1 m
Microphone Microphone
NOTE: Detailed shape of the actual indoor unit might be slightly different from the one illustrated
above.
¢
Ceiling type
Microphone
Microphone
1 m
1 m
- 178 -

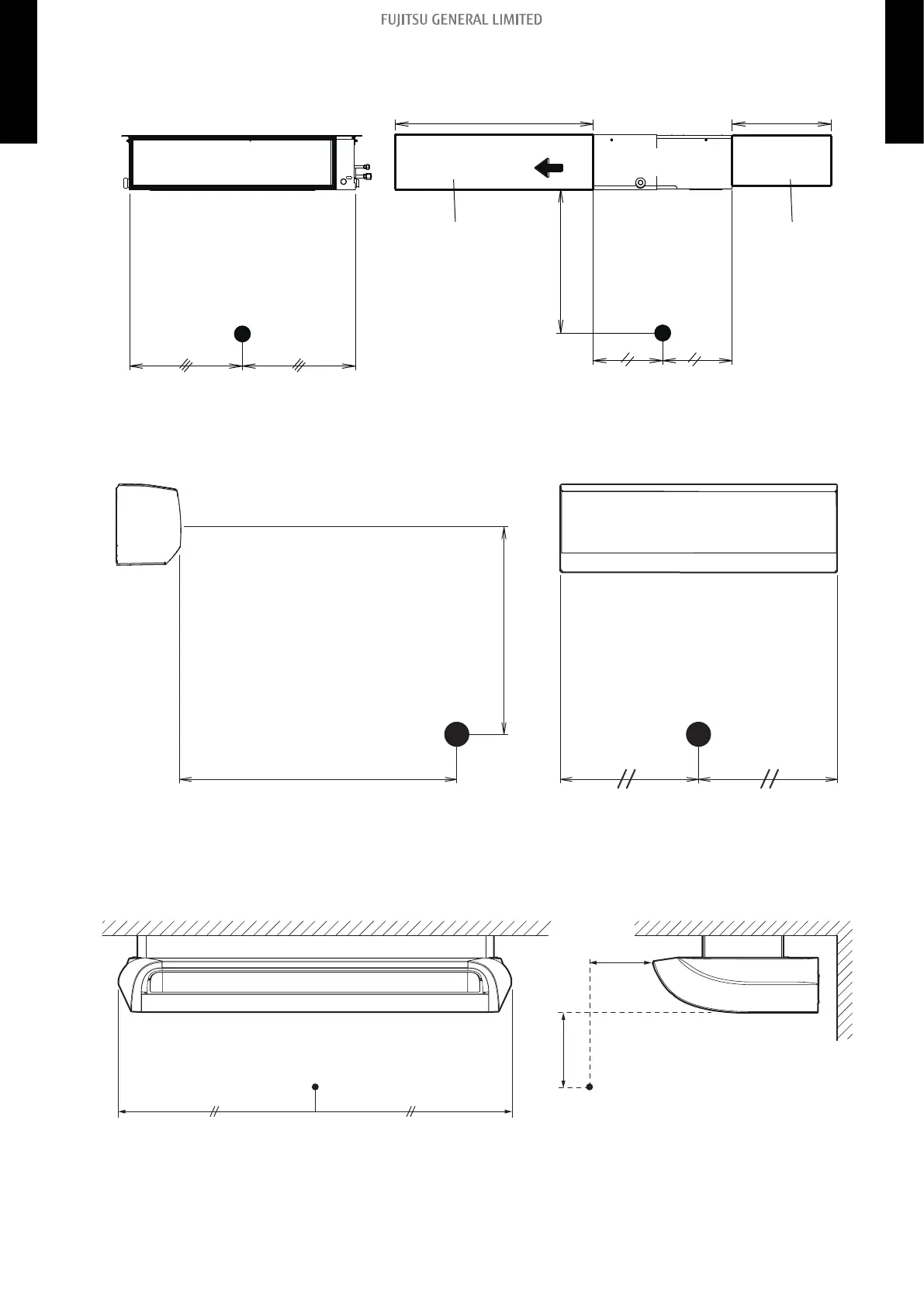

9-8. Sound level check point
9. Noise level curve
