Specifications

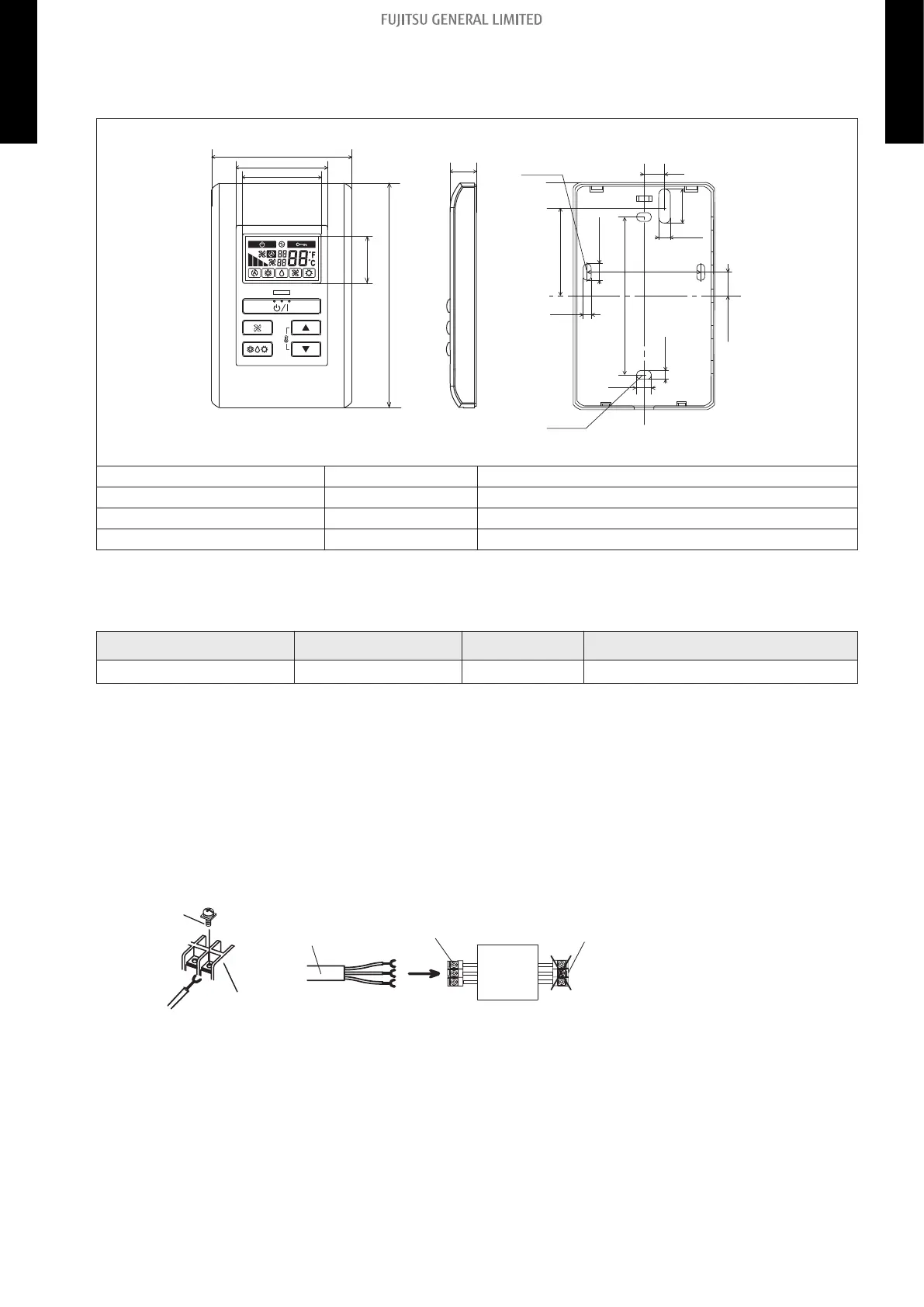

Dimensions and other specifications on the wired remote controller are as follows.
Unit: mm
120
75
49
39
23.5
14
4
11
4.5
12.5
hole x 2
hole x 2
8
60
6
18
9
47.5
83.5
Front View Side View Rear View
Size (H × W × D) mm 120 × 75 × 14
Weight g 90
Cable length (accessory) m 10
Power V 12
 Wiring specifications
Use Size Wire type Remarks
Remote controller cable
0.33 mm
2
Polar 3 core Use sheathed PVC cable.
¢
Installation
Connection pattern of wired remote controller varies by the type of the connected indoor unit.

When connecting to terminal block (for Compact cassette, Slim
duct, and Mini duct types)
Connect the end of remote controller cable directly to the exclusive terminal block.
PCB
M4 screw
Terminal block
Remote controller cable
Remote controller
terminal block
Outdoor unit or Power supply terminal
block or Remote controller terminal block
NOTE: It may be failed if it is connected to the outdoor unit or the terminal block for power supply.
- 292 -
14-12. Simple remote controller (UTY-RSNYM: Optional part)
14. Remote controller
4-5 UNIT MULTI-SPLIT TYPE 4-5 UNIT MULTI-SPLIT TYPE
