Fujitsu AO G18KATA Series Service Manual

¢
Models: AOYG30KATA and AOYG36KATA
Unit: mm
Top view
Bottom view
Side viewFront view
940
3 Way valve
(Liquid)
786.2
23.4
12.9
129.1
85.3
50
95
29
296.2
265.7
Pipe port
(Gas valve)
3 Way valve
(Gas)
(Liquid valve)
Ф28: Cable port
Ф28: Cable port
89
650
35.748
143147
39.8
53.9: Liquid
40 320
354.8
62.9: Gas
320
139.8
Ф28: Cable port
Ф28: Cable port
96
50 120
Pipe port
5525
40 5
264.6
351.9
Pipe & Cable port
47.6
15.262.6
15.6
Rear view
50
Ф28: Cable port
Ф28: Cable port
25
141.9
70
67
Pipe port

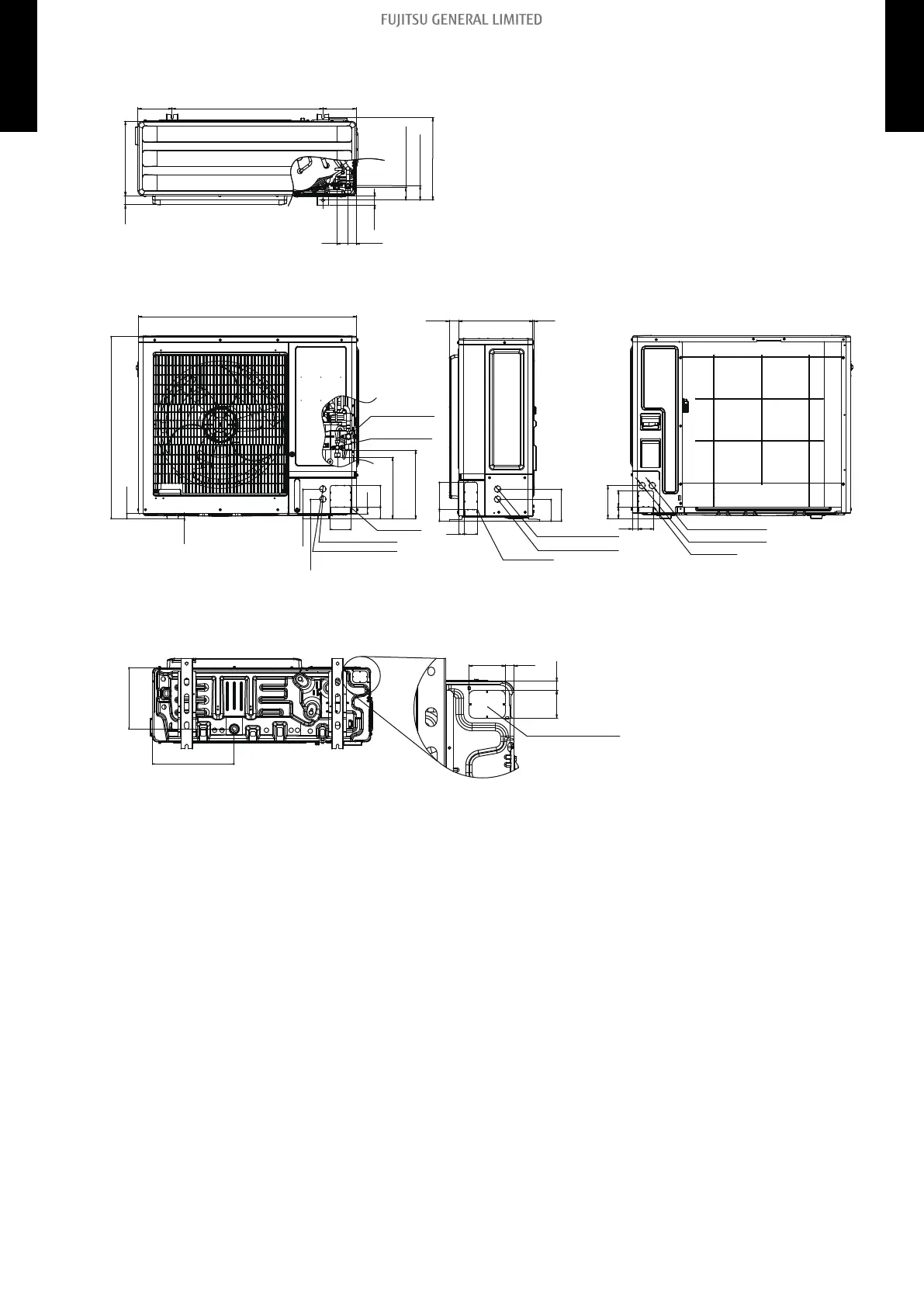

2-2. Outdoor unit - (01-13) - 2. Dimensions
