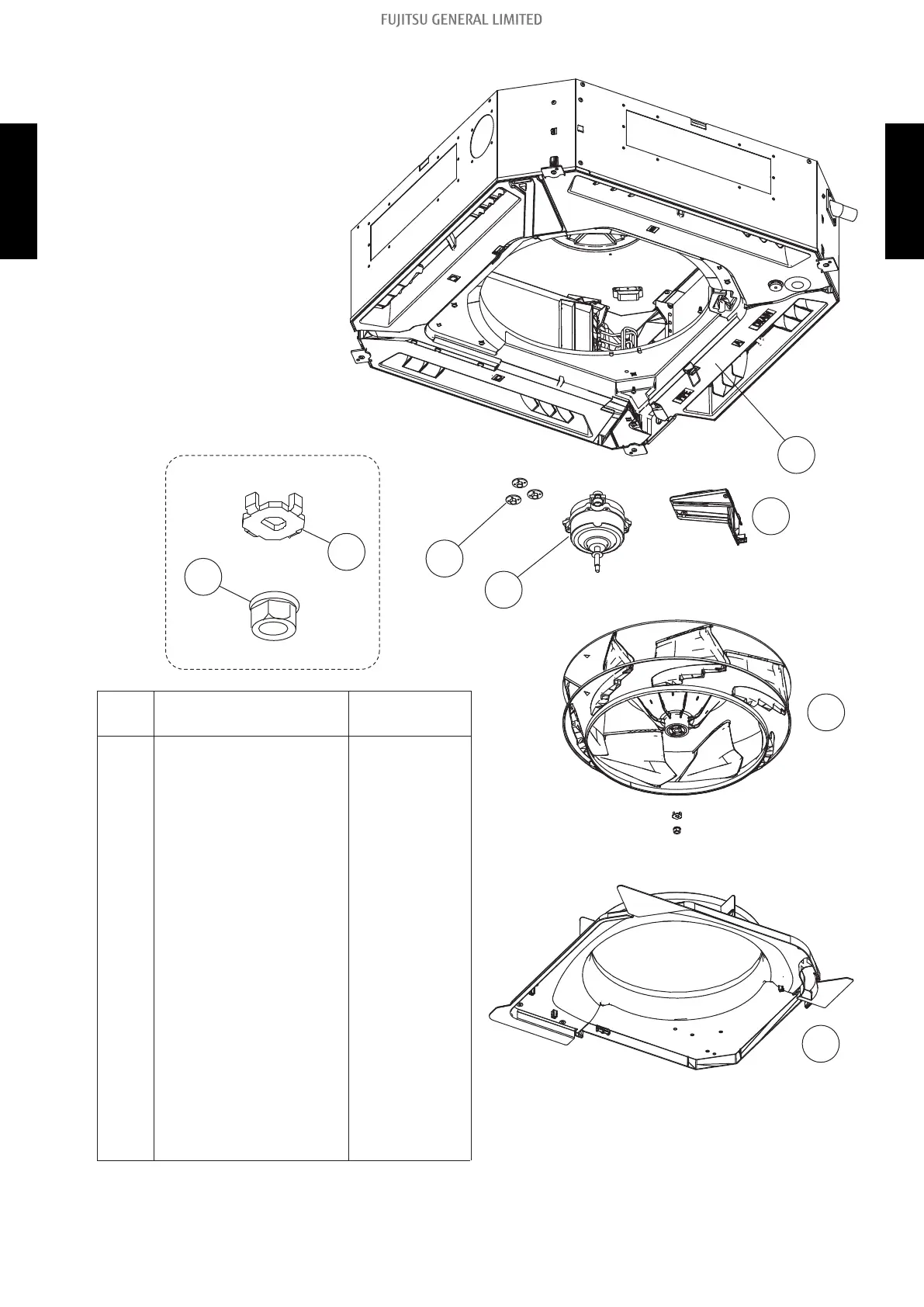

¢ Fan and motor
21 Bellmouth (24)
22 Turbo fan assy
24 Nut
25 Brushless motor
9381484003
9381303007
9356998009
23 Turbo Fan Washer 9378394018
28 Drain pan sub assy 9381789009
9603443009
27 Motor Wire Holder
26 Special Nut
9381351008
9378388017
Ref. Description
Part number
24
23
21
25
22
26
27
28
21 Bellmouth (30,36,45,54) 9381345007
3-1. Models: AUXG24KRLB, AUXG30KRLB, AUXG36KRLB, AUXG45KRLB, and
AUXG54KRLB
- (02-7) - 3. Indoor unit parts list
