(Liquid pipe) (Gas pipe)
(Liquid pipe) (Gas pipe)

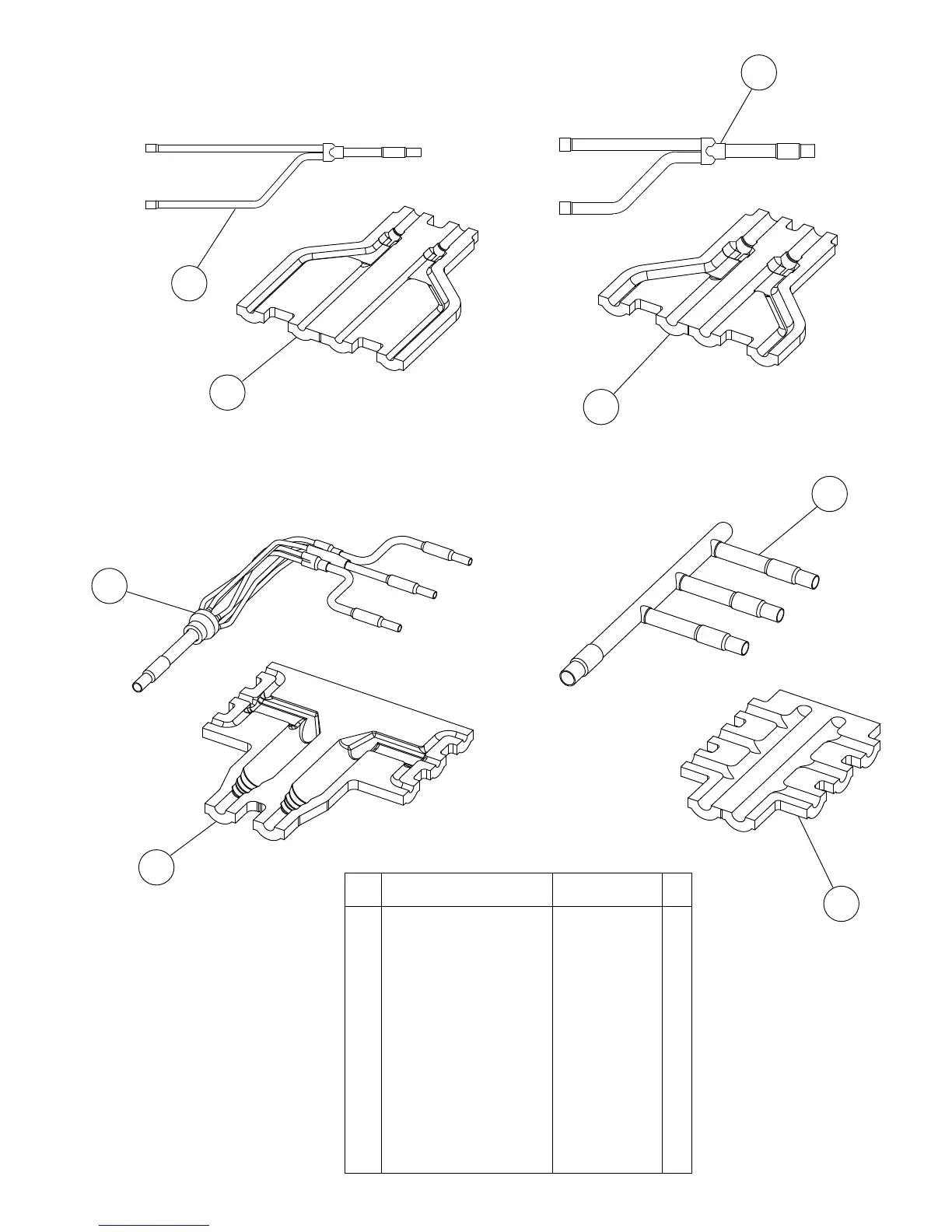

BRANCH PIPE
UTP-SX254A
BRANCH PIPE
UTP-SX354A
2012.04.23 40
1 Branch Pipe A Assy 9379102018
Ref. Description Parts number
6 Insulation 9379111010
7 Branch Header B Assy 9379108010
4 Insulation 9379101011
5 Branch Pipe A Assy 9379116015
3 Branch Pipe B Assy 9379105019
2 Insulation 9379100014
8 Insulation 9379112017
7
8
5
6
1
2
3
4
