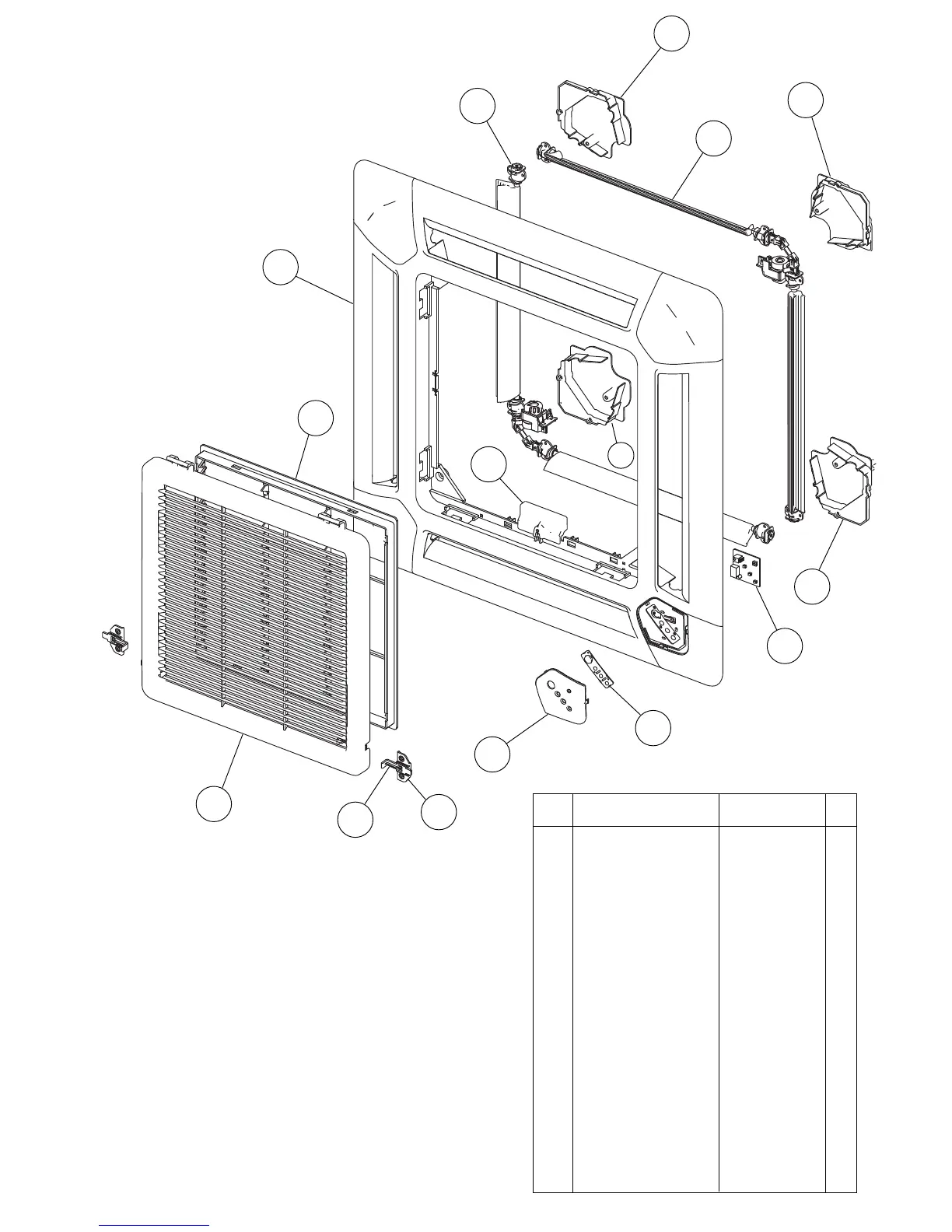

DECORATION PANEL
UTG-UFYD-W
PARTS
Ref. Description
1 Decoration Panel 9375525040
2 Display Panel 9375529123
3 Receiver Window 9375547011
4 Intake Grille 9375531027
5 Long Life Filter 9375533014
11 Flap Total Assy 9377760029
6 Hook Bracket 9375546014
9375532024
9375530013
7 Grille Hook
8 Panel Cover
9 Indicator PCB Assy 9707371031
10 Connector Cover 9375549015
