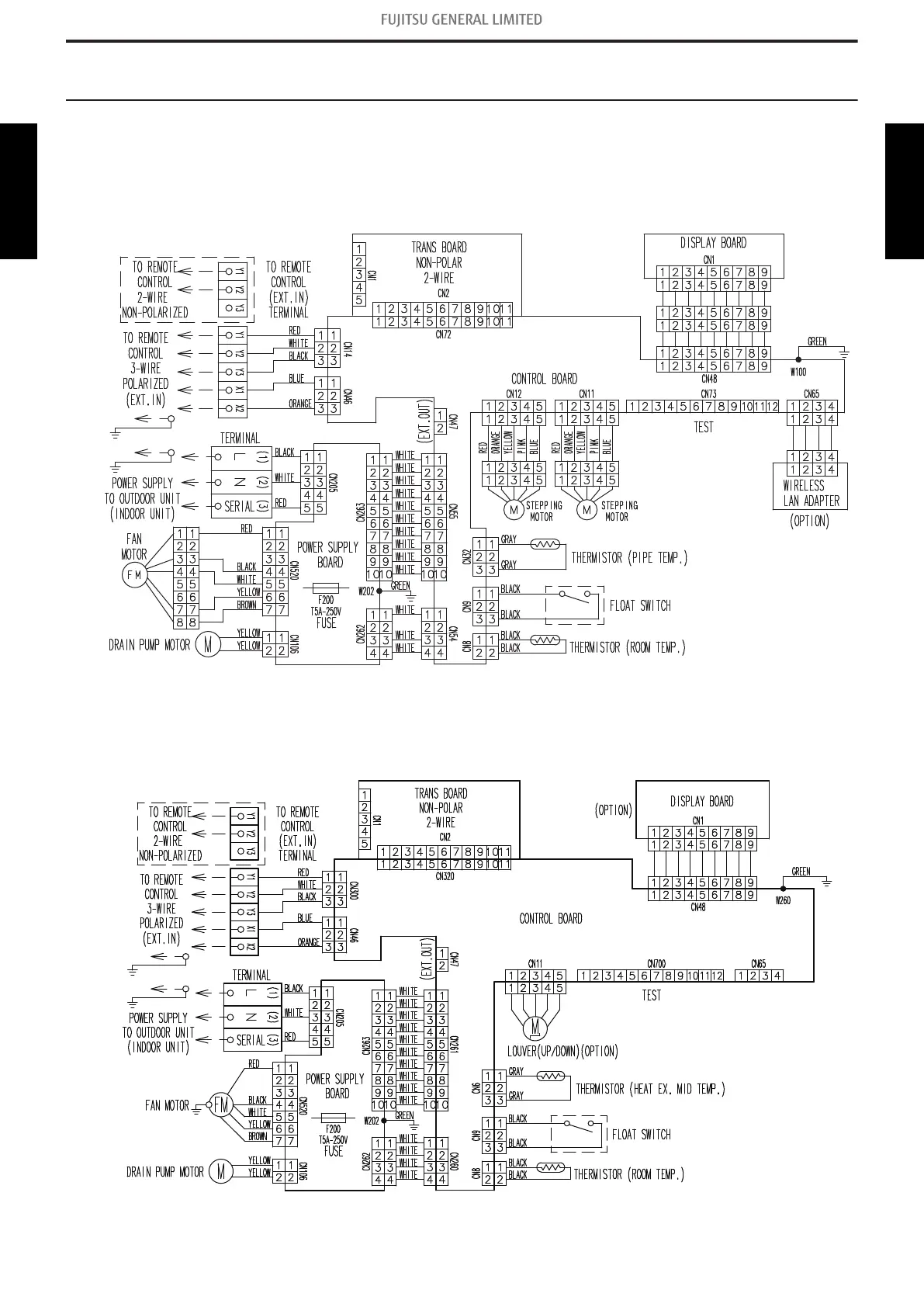

8. Wiring diagrams
8-1. Indoor unit
¢
Compact cassette type
Models: AUXG18KVLA, AUXG22KVLA, and AUXG24KVLA
¢
Slim duct type
Model: ARXG18KLLAP
WLAN adapter,
Converter etc.
(Option)
8-1. Indoor unit - (02-37) - 8. Wiring diagrams
