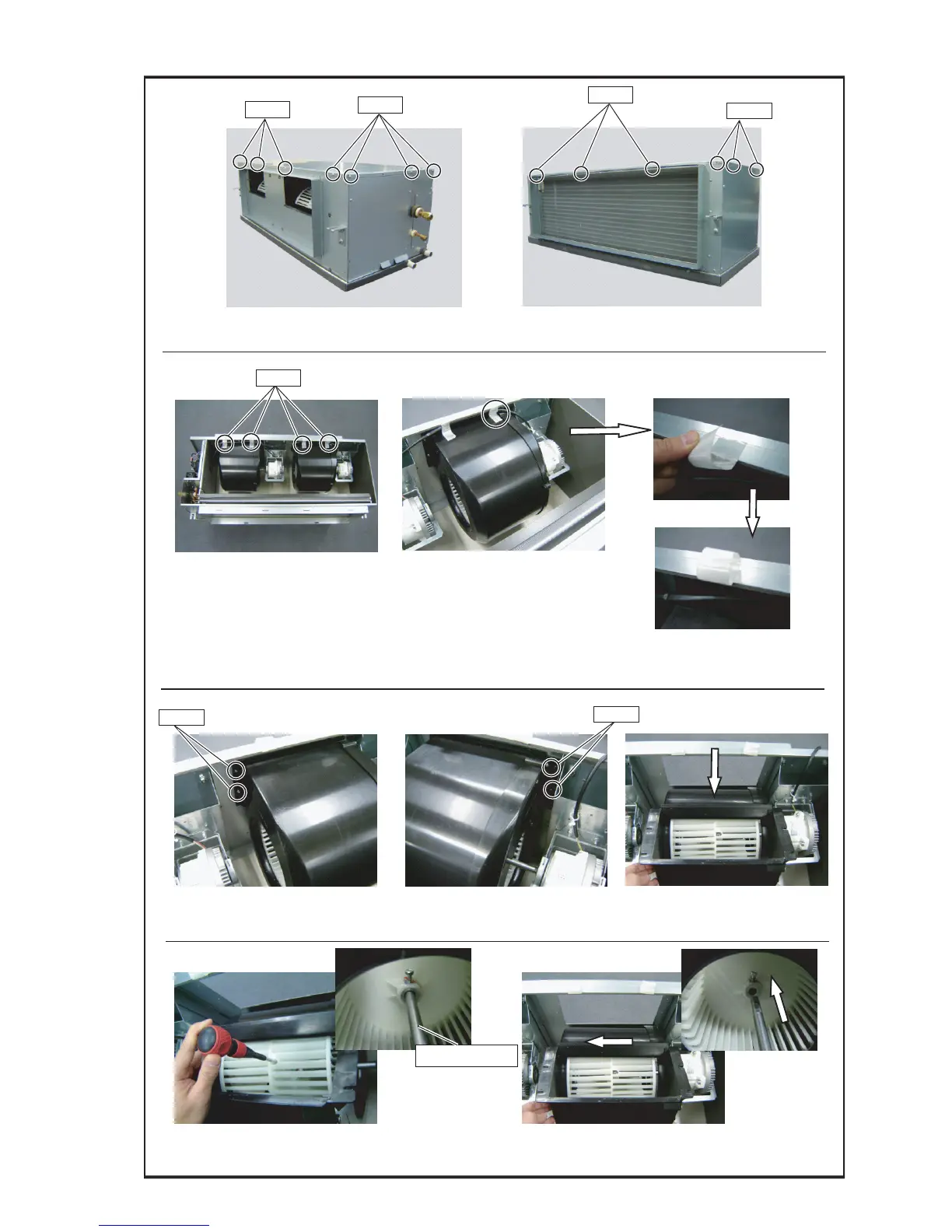

4. FAN MOTOR removal
03-03
1) Remove the mounting screws(13 places).
screw
screw
screw
screw
2) Remove the PANEL TOP ASSY.
screw
screw
4) Remove the mounting screws(4 places).
6) Loosen the MOTOR SHAFT screw. 7) Slide the left with the SIROCCO FAN and CASING.
5) Pull the CASING.
Tape
Reuse the tape.
MOTOR SHAFT
3) Peel off the tapes.
