Fujitsu AOTG30LATL Service Instruction

03-04
Note at the installation.

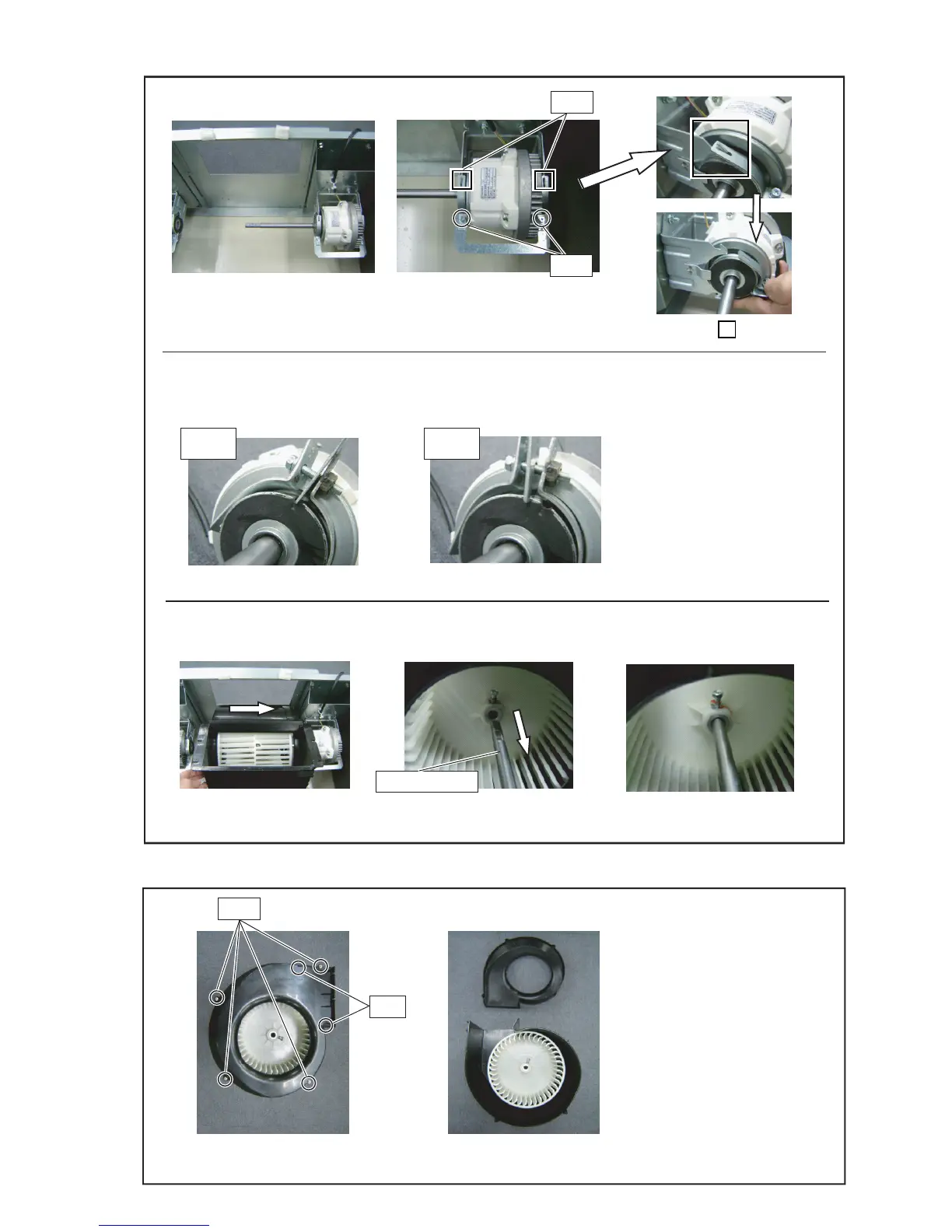

5. SIROCCO FAN removal
1) Remove the screws(4 places).
screw
hook
2) Take it out the SIROCCO FAN.
■Insert SIROCCO FAN and MOTOR SHAFT reference D cutting position.
Please insert it till a SIROCCO FAN stop.
■Please install it so that a motor band touches rubber.
2) Tighten the screw.
1) Insert it till a SIROCCO FAN stop.
9) Loosen the screw.
8) Take out the SIROCCO FAN
and CASING.
screw
hook
Unlock the point.
MOTOR SHAFT
NGOK
