- (01 - 06) -
DUCT TYPE ARTG54LHTC DUCT TYPE ARTG54LHTC

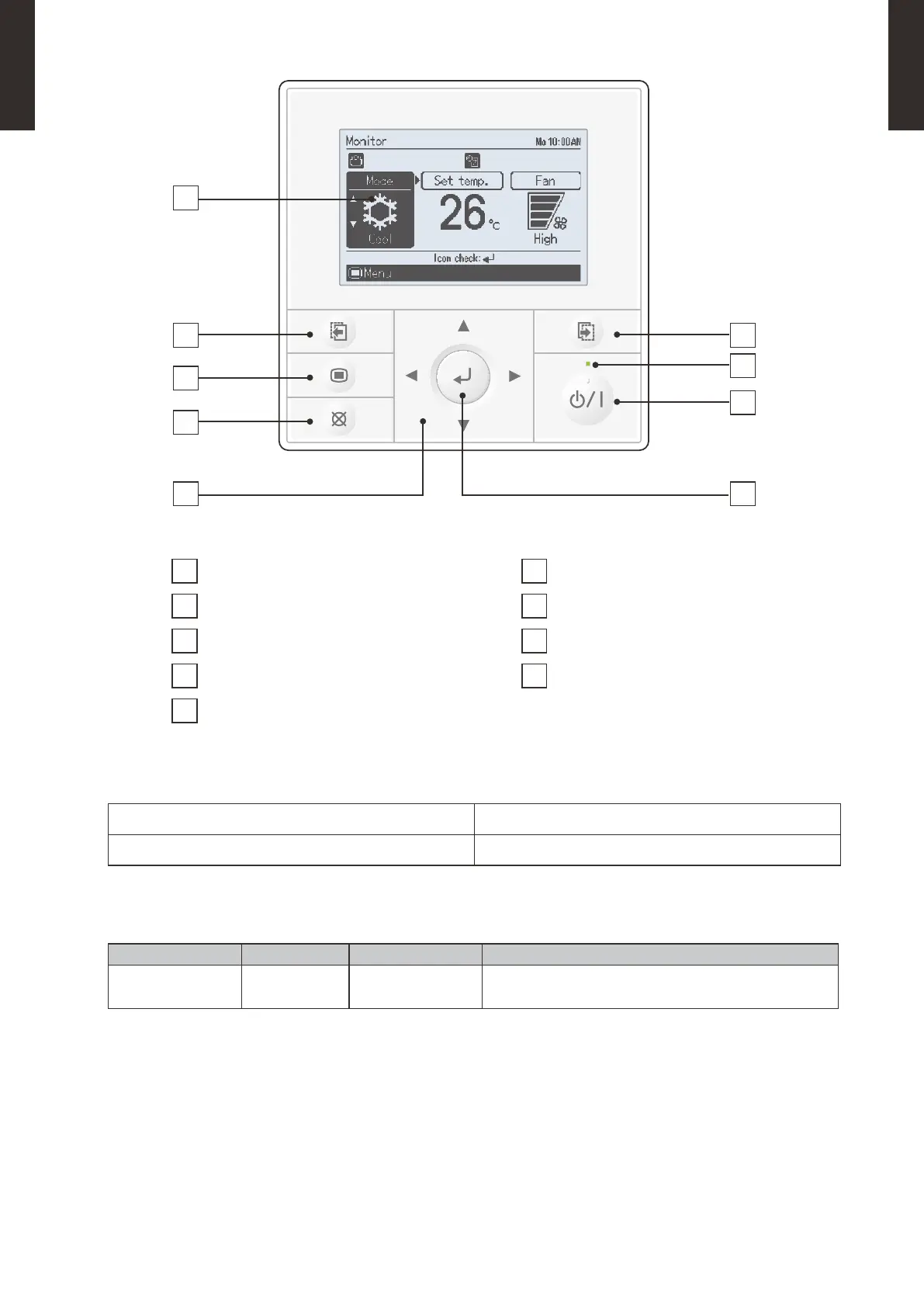

FUNCTIONS

1
2 6
8
7
3
4
5 9
1
Display panel (with backlight)
2
Screen switch button (Left)
3
Menu button
4
Cancel button
5
Cursor button
6
Screen switch button (Right)
7
Power indicator
8
On / Off button
9
Enter button
SPECIFICATION

SIZE (H x W x D mm) 120 x 120 x 21.3
WEIGHT ( g ) 220
WIRING SPECIFICATIONS

Use Size Wire type Remarks
Remote controller
cable
0.33mm
2
( 22AWG )
Polar 3 core
Use shielded cable (eld supplied) in accordance
with the regional cable standard.
