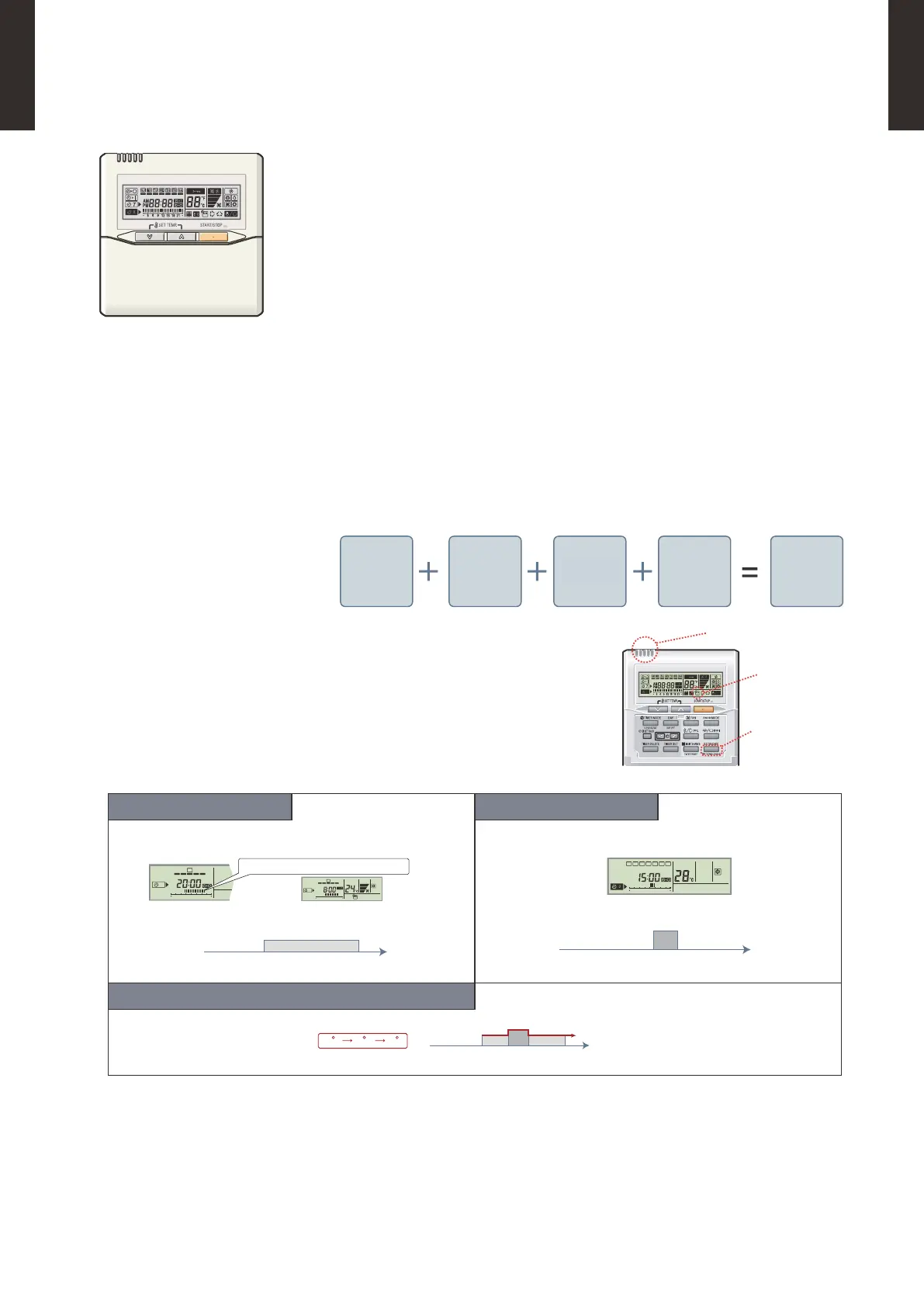

- (01 - 07) -
DUCT TYPE
ARTG54LHTC
DUCT TYPE
ARTG54LHTC
AR-WAF1E (Option: UTY-RNNYN)2-2.
FEATURES
Various timer setup (ON/OFF/WEEKLY) are possible.
¾
Equipped with weekly timer as standard function.
¾
(Possible to set START/STOP time to operate twice each day of the week.)
When setting up a timer, operation mode and a temperature setup
¾
can be changed.
When a failure occurs,the error code is displayed.
¾
Error history.(A maximum of 16 error code's are memorizable.)
¾
Up to 16 indoor units can be simultaneously controlled.
¾
Economy operation are possible.
¾
Easy installation with a slim shape with no bulge in the back.
¾
The room temperature can be controlled by being detected the
¾
temperature accurately with Built-in thermo sensor.
Simple function setting
z
Setting of the air conditioner selection function is performed by remote controller.
High performance and
z
compact size
Accurate and comfortable
z
Indoor temperature can be detected accurately by the inclusion of a
thermo sensor in the body of the wired controller.
Our system can correspond to various scenes.
This wired remote controller and the optional remote sensor allows
exibility in sensor location, and suitable for all requirements.
Built-in timers
z
Weekly timer Set back timer
Possible to set START/STOP time to operate twice each day
of the week.
Possible to set temperature for two time spans and for each
day of the week.
At "Weekly timer" + "Set back timer" setup
0 3 6 9 12 15 18 21 Time
24°C
SU
MO
TU
WE
TH FR SA
7
3
12
6 9
15 1 8 21
SU
MO
TU
WE
TH FR SA
7
3
12
6 9
15 18 21
Easy-to-understand time bar display
Example : setup screen
(Set to Wednesday: 8:00 to 20:00.)
Screen
after setup
0 3 6 9 12 15 18 21 Time
28°C
SU
MO
TU
WE
TH FR SA
3
12
6 9
15 1 8 21
Example : setup screen
(Set from Sunday to Saturday: 12:00 to 15:00, 28 °C.)
24°C
0 3 6 9 12 15 18 21 Time
28°C
24 C 28 C 24 C
Sensor part
Thermo sensor
display
Control part for
changing the
thermo sensor
Thermo
sensor
Individual
control
Weekly
timer
Setback
timer
Wired
remote
controller
