Fujitsu AOU12RLS2 Design & Technical Manual

- (01 - 06) -
WALL MOUNTED TYPE ASU9-15RLS2 WALL MOUNTED TYPE ASU9-15RLS2
DIMENSIONS4.
MODEL

: ASU9RLS2, ASU12RLS2, ASU15RLS2
Unit : in. (mm)
7-7/8 (35)7-7/8 (200)
1-15/16 (49)
(3-5/16 (84)) 13-29/32 (353)
8-7/16 (214) 7 (178)
14-11/32 (364) 2-3/4 (70)
1-15/16 (49)
(11-3/32 (282))
25/32 (20)
12-1/4 (311)12-13/32 (315)

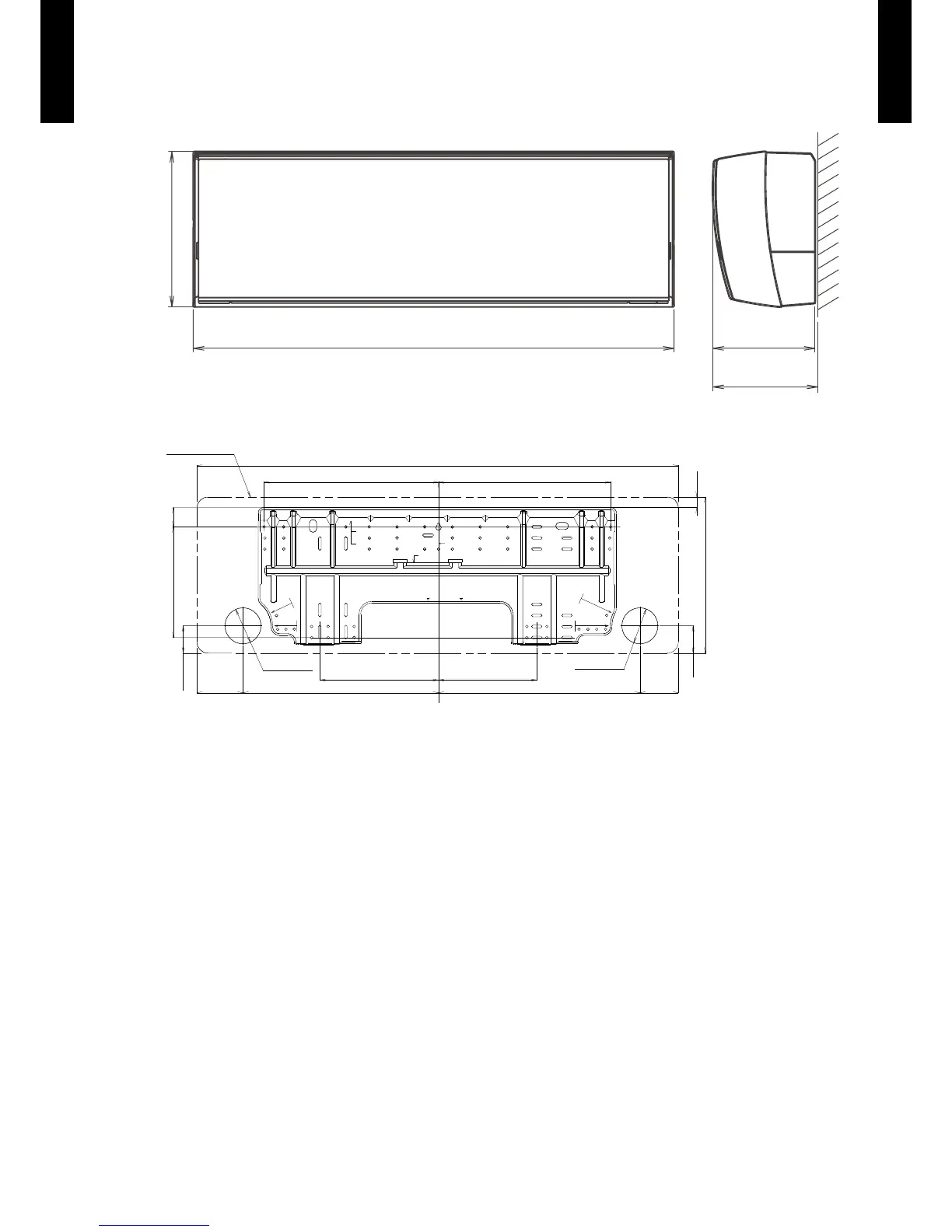

Outline of Unit
Ø2-9/16 (65)
for pipe inlet
(34-1/4 (870))
Ø2-9/16 (65)
for pipe inlet
11-3/32 (282)
7-9/32 (185)34-1/4 (870)
7-3/8(187) : Installed state

Fujitsu AOU12RLS2 Specifications

General

Brand	Fujitsu
Model	AOU12RLS2
Category	Air Conditioner
Language	English
