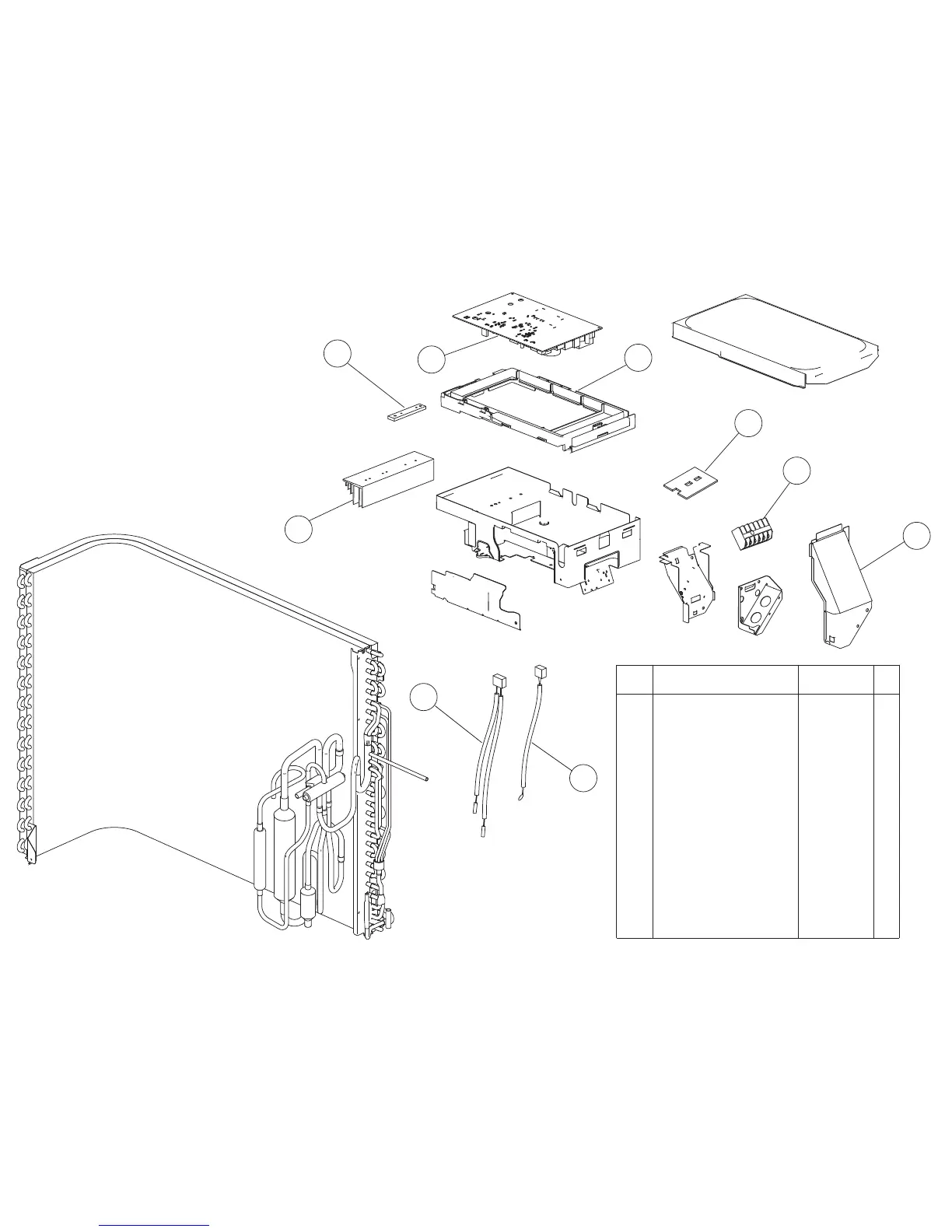

OUTDOOR UNIT
2014.12.18
16
Ref.
Description
Part number
28
Outdoor Thermistor
9900544010
Terminal
bracket
Conduit bracket
24
Terminal
9900016081
23
Terminal Cover Assy
9317898034
29
Thermistor Assy
9900614027
Sealed panel
Inverter case
Inverter
case cover
Main PCB (AOU9RLS3)
21
9709221426
Main PCB (AOU12RLS3)
21
9709221440
22
PCB Holder
9313074029
27
Heat Sink B
9314090011
26
Heat Sink A
9314410017
25
Semiconductor Accessory
9705840010
24
23
21
27
26
22
28
29
25
16
18
Table of Contents
Table of Contents
1
Wall Mounted Type
1
Specifications
2
Dimensions
3
Refrigerant System Diagram
4
Circuit Diagram
5
Indoor Pcb Circuit Diagram
6
Outdoor Pcb Circuit Diagram
7
Error Detection
8
P Arts Indoor Unit
10
Parts (Outdoor Unit)
16
Accessories
19
