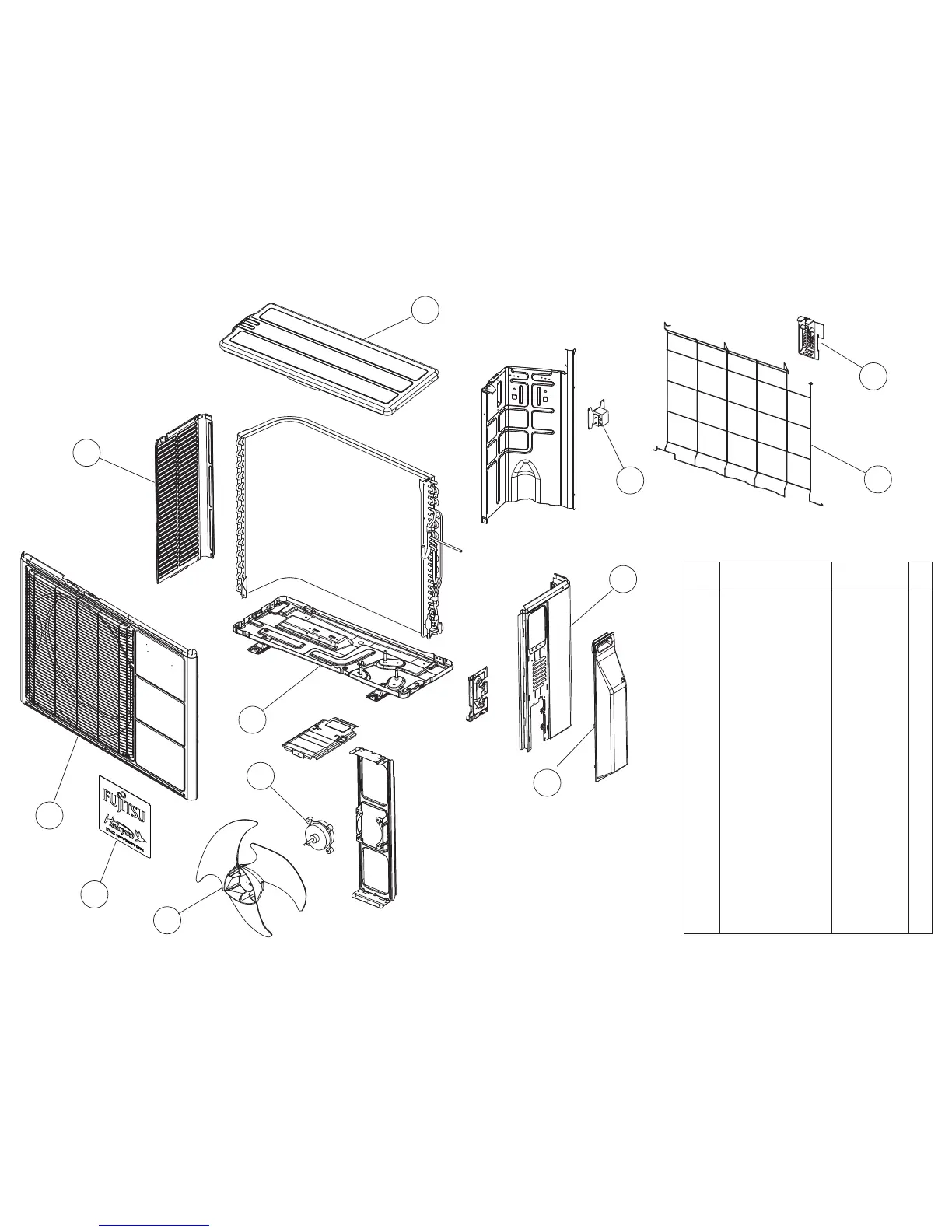

OUTDOOR UNIT
PARTS
2014.12.18 15
3 Top Panel Assy 9318464023
4 Front Panel Assy 9318463026
2 Protective Net
6 Cabinet Left Assy 9318461015
5 Emblem
Valve bracket
Motor bracket
10 Propeller Fan 9313808013
9 Base Assy 9316885059
12 Reactor Assy 9900611019
Separator assy
11 Fan Motor 9602724017
Ref. Description Part number
9
1 Thermistor Holder 9313954031
9332492002
1
7
9317903011
Switch Cover 9317692021
8 Cabinet Right Assy 9316044050
