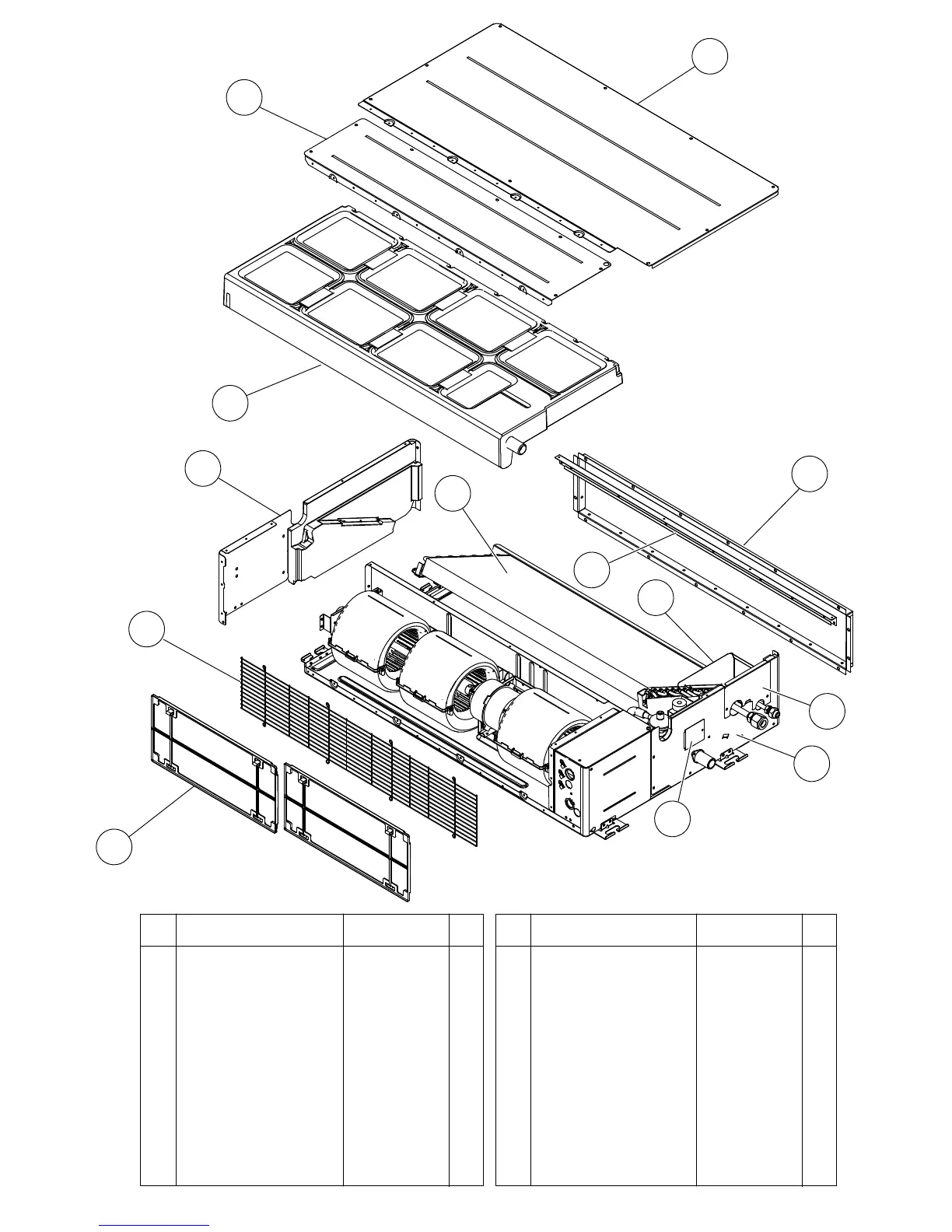

INDOOR UNIT
PARTS
3 Pipe Panel Sub Assy
1 Side Panel R Sub Assy
2 Side Panel L Sub Assy
5 Outlet Frame Assy
Parts numberDescriptionRef
9379906012
9379900003
9379907019
9380042013
Panel (Window) Sub Assy
9379915007
152013.03.11
11 Cabinet Panel (3 Fan)
8 Fan Guard (3 Fan)
10 Main Panel (3 Fan)
12 Drain Pan Sub Assy
9380598008
9380590002
9380603009
9379901055
4
Parts numberDescriptionRef
13 Evaporator Total Assy 9380682066
9 Air Filter 9379575003
7 Valve Cover Sub Assy 9379576017
6 Front Panel (3 Fan) 9380595007
3
11
10
12
7
2
8
9
4
1
5
6
13
