Fujitsu AOU36RLXB Service Manual

White
Connector :
Yellow
Blue
Red

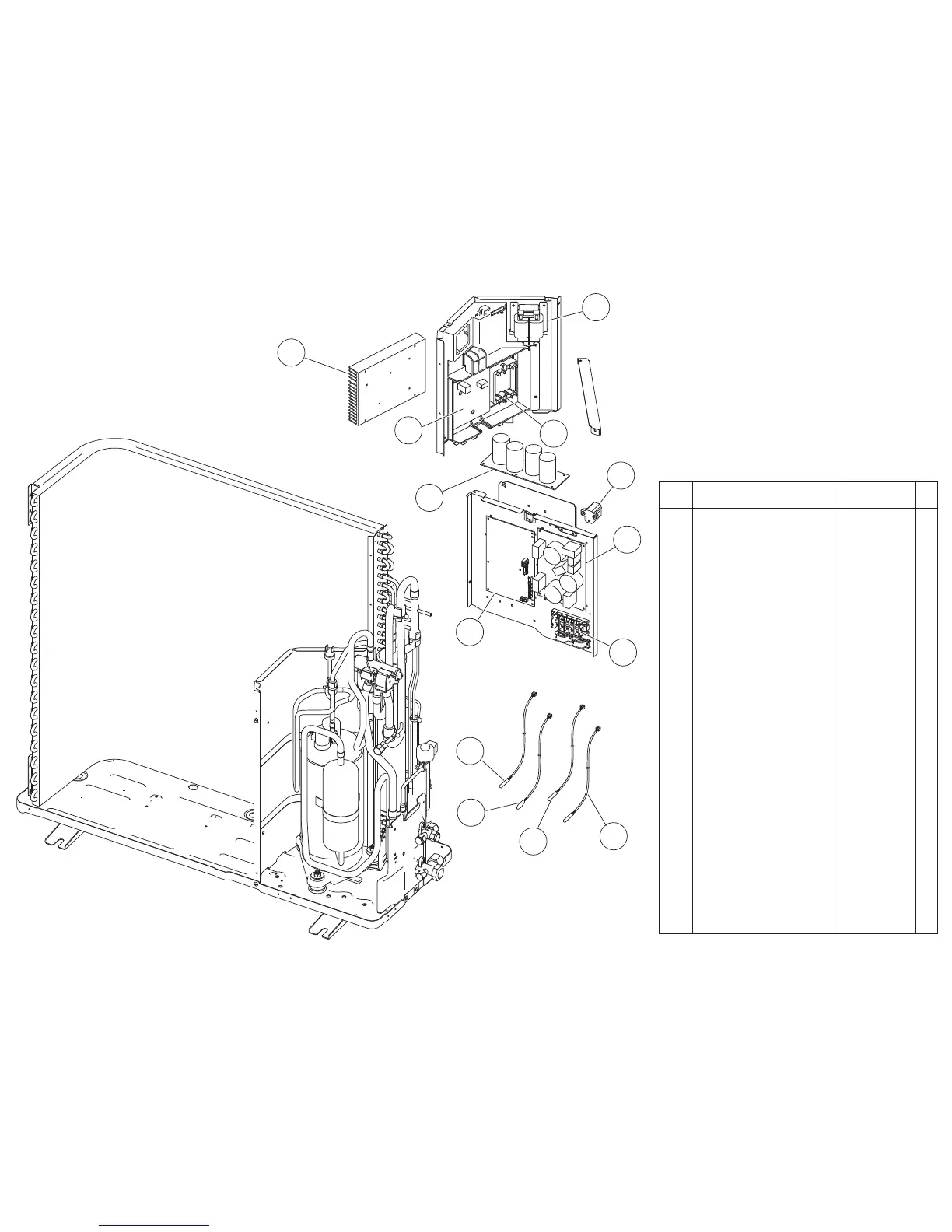

OUTDOOR UNIT
2014.10.29 14
22 ACTPM 9707592016
29 Thermistor 9704265012
25 Main PCB (AOU30RLXB)
25 Main PCB (AOU36RLXB)
9708511719
26 Filter PCB 9708513072
24 Capacitor PCB 9709894040
21 Transistor PCB 9708512112
23 Choke Coil 9900223014
27 Terminal 9900203023
28 Heat Sink 9378530010
30 Discharge Thermitor 9900461003
31 Outdoor Thermistor 9900463007
32 Compressor Thermistor 9900466015
33
Heat Exchanger Thermistor 9900514013
9708511726
Ref. Part numberDescription
31
32
33
23
24
29
26
27
25
30
22
21
28

Fujitsu AOU36RLXB Specifications

General

Brand	Fujitsu
Model	AOU36RLXB
Category	Air Conditioner
Language	English
