Fujitsu AOU36RML1 Service Manual

5V
TM101
TM102
C111
2.2
<LE>
L4 RCH3818-022PF07
C107
2.2
<LE>
TM100
L2 N200500K1D7C
CT1 CT-1B
5V
D60 DAN217U
C64 0.1 <F>
R68 22K <1/10W>
C65 0.1 <F>
VR1
KVSF687AC202
+
R61 3.74K
<1/10W>
(1%)
C60 220/16V <PJ>
R60 680 <1/10W> (1%)
SA100 RA-302M
C106
1.0
<LE>
C104 0.015 <YE> C105 0.015 <YE>
C101
1.0
<LE>
VA101 470V <TNR>
VA102 470V <TNR>
B
B
B
B
B B
B
BLACK
WHITE
TO INDOOR UNIT
POWER SOURCE
EARTH
AC VOLT OUT
W5 W6
BLACK
WHITE
W7
GREEN
W3
W8
BLACK
WHITE
W9 W4
L1 RCH3818-022PF07
CN1 B03B-XASK-1-A
WHITE
CT OUT
1
2
3
2009.02.02 14

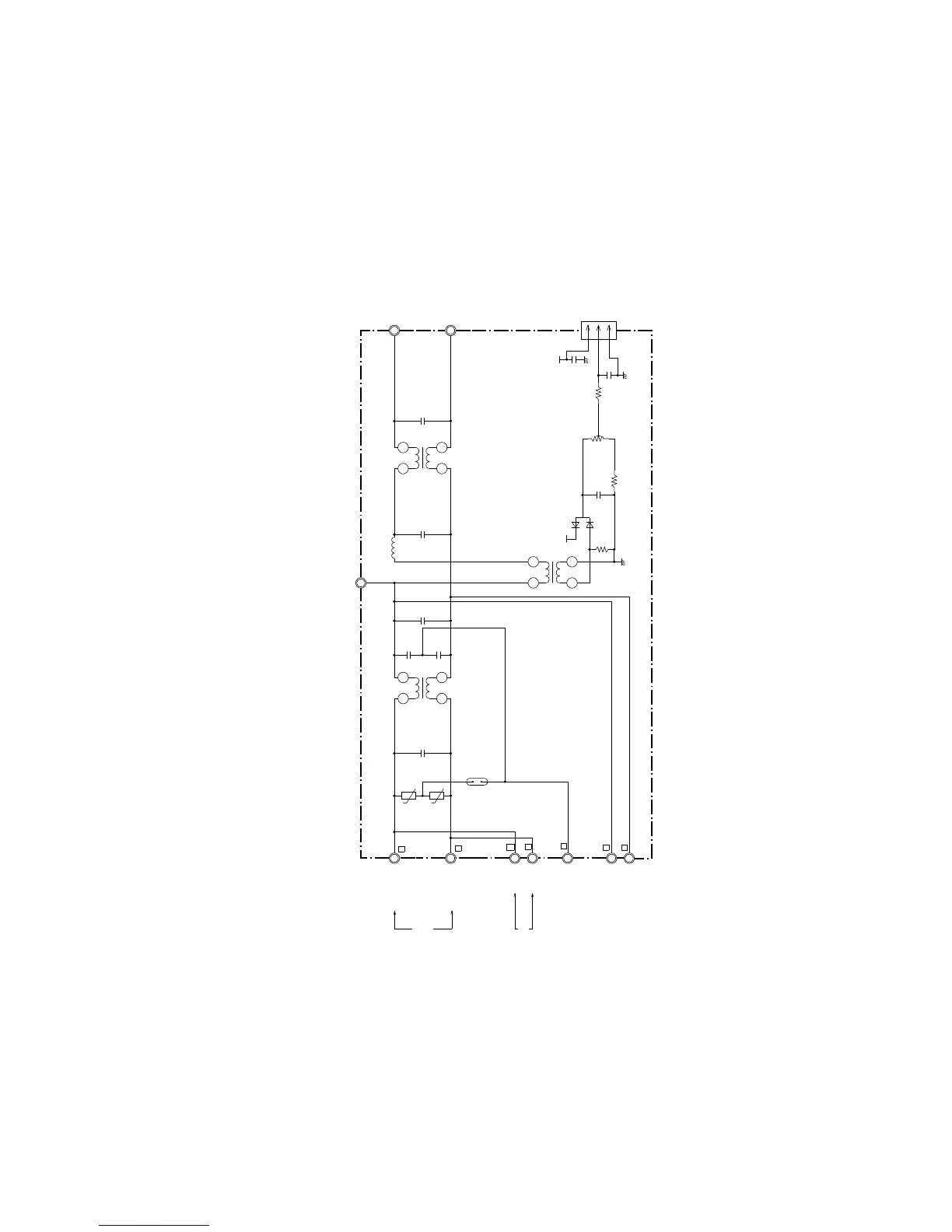

OUTDOOR UNIT POWER SUPPLY PCB ASSEMBLY K04BA-0703HUE-P0
