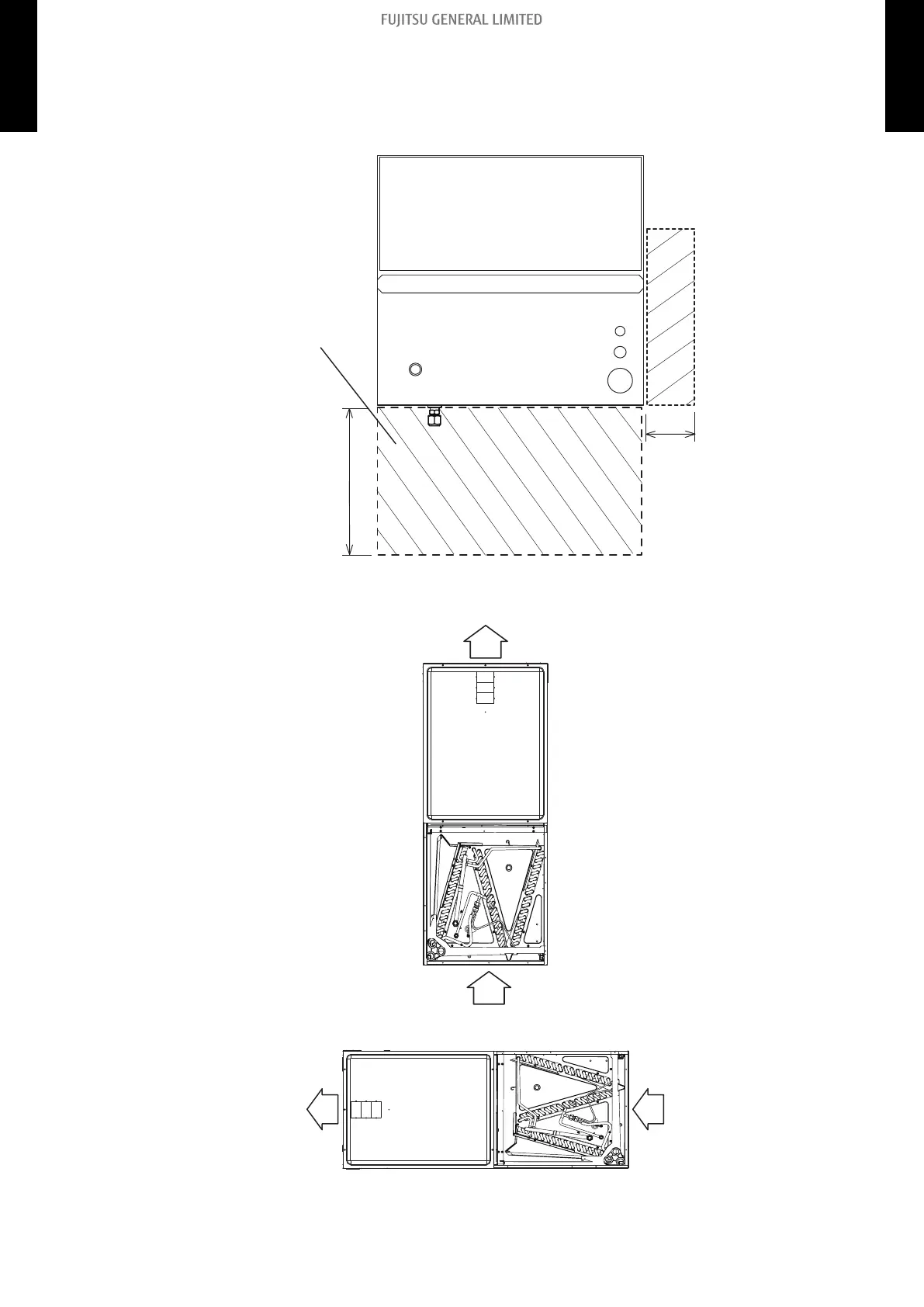

Provide sufficient installation space for product safety.
(T
op side)
24 (600)
or more
Service
access
4 (100)
or more
For installation method, the following 4 patterns
•
Pattern A: Vertical installation, air intake port at the bottom
AIR
AIR
•
Pattern B: Horizontal installation, air intake port at the right
AIR
AIR
2-1. Indoor unit
- (01-6) -
2. Dimensions
GENERAL
INFORMATION
GENERAL
INFORMATION
11
13
Table of Contents
1. General Information
6
Default Chapter
6
Table of Contents
6
1 Specifications
7
Indoor Unit
7
Outdoor Unit
9
2 Dimensions
11
Indoor Unit
11
Outdoor Unit
14
2. Technical Data and Parts List
18
1 Precautions
19
2 Indoor Unit Parts List
20
Models: AMUG24LMAS, AMUG30LMAS, AMUG36LMAS, and AMUG48LMAS
20
3 Outdoor Unit Parts List
26
Models: AOU24RGLX and AOU30RGLX
26
Models: AOUG36LMAS1 and AOUG48LMAS1
32
4 Accessories
38
Indoor Unit
38
Outdoor Unit
38
5 Optional Parts
39
Indoor Unit
39
6 Refrigerant System Diagrams
41
Models: AOU24RGLX and AOU30RGLX
41
Models: AOUG36LMAS1 and AOUG48LMAS1
42
7 Wiring Diagrams
43
Outdoor Unit
43
Models: AOU24RGLX and AOU30RGLX
43
Models: AOUG36LMAS1 and AOUG48LMAS1
44
4. Control and Functions
107
Compressor Frequency
108
Compressor Preheating
115
Auto Changeover Operation
116
Indoor Fan Control
118
Outdoor Fan Control
122
Timer Operation Control
124
Economy Operation
129
Minimum Heat Operation
129
Test Operation Control
130
Forced Operation
131
Defrost Operation Control
132
Off Defrost Operation Control
135
Auto Restart
136
Prevent to Restart for 3 Minutes (3 Minutes St)
136
Way Valve Extension Select
136
Electric Expansion Valve Control
137
Various Protections
138
Pump down
145
5. Filed Working
148
1 Function Settings (for Indoor Unit)
149
Function Settings on Indoor Unit
149
Function Settings by Using Remote Controller
150
2 Function Settings (for Outdoor Unit)
158
Setting Methods
158
Outdoor Unit Low Noise Operation Function (Option)
161
3 Test
162
Test Run
162
Error Code
164
Pump down
167
4 External Input and Output
169
External Input
169
External Output
171
Combination of External Input and Output
173
Details of Function
176
