En-17

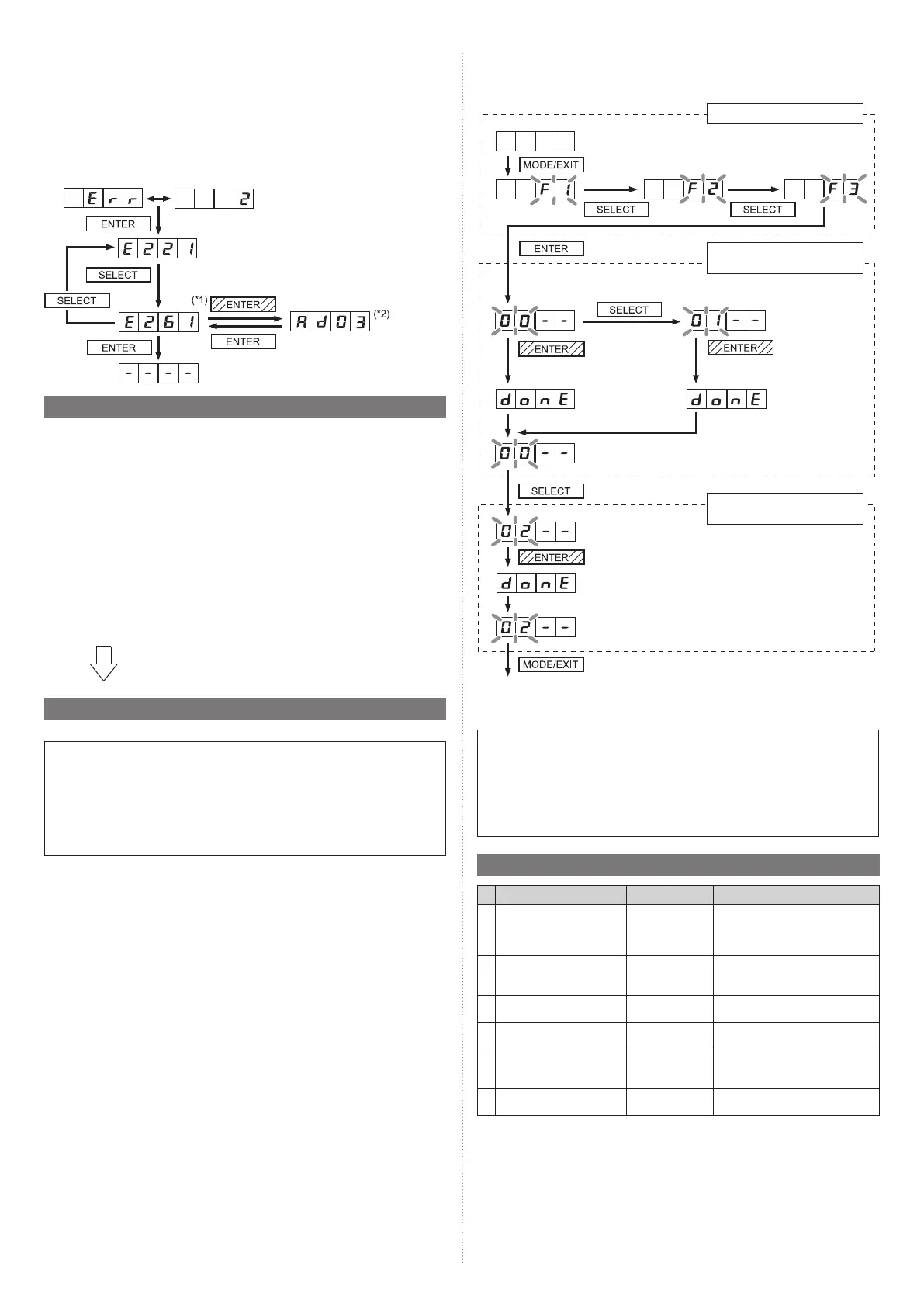

Test operation setting method
Use the “MODE/EXIT”, “SELECT”, and “ENTER” buttons on the indoor unit PC board to
configure settings according to the procedures below.
Settings for starting test run
operation
Settings for stopping test run
operation
Press the “ENTER” button for
more than 3 seconds.
Press the “ENTER” button for more than 3 seconds.
Press the “ENTER” button for
more than 3 seconds.
This will be displayed when the cooling operation mode is
canceled.
This will be displayed
when the cooling test
operation is complete.
This will be displayed
when the heating test
operation is complete.
This will be displayed after 5 seconds.
This will be displayed after 5 seconds.
First 2 digits
Last 2 digits
Set to Function mode [F3].
(When [F4] to [F9] are displayed, continue to press
the “SELECT” button until [F3] is displayed.)
For heating operation, press the “SELECT”
button until “01” is displayed.
Function settings
EXIT
After the test operation is complete, turn off the power. Attach the cover of the electrical
component box and the front panel of the outdoor unit.
NOTE:
• Check that the indoor and outdoor units connected to the same refrigerant system are
operating normally.
• When indoor or outdoor units are not operating, or when the indoor and outdoor units
of other refrigerant systems are operating, the indoor/outdoor unit address are not
configured correctly.
• The system will not operate normally with an incorrect DIP switch setting.
Stop the system immediately and recheck the DIP switch setting.
9.4. Checklist
Check description Check method Criteria
1
High and low pressure
values are normal.
Check it with a
pressure gauge.
Cooling: low pressure approx.
116 psi (0.8 MPa)
Heating: high pressure approx.
435 psi (3.0 MPa)
2
Drain water is discharged
smoothly through the drain
hose.
Check it by pour-
ing water.
―
3
Indoor and outdoor unit
fans are operating.
Check them visu-
ally.
―
4
Compressor operates after
the indoor unit operates.
Check the operat-
ing sound.
―
5
Difference between inlet
and outlet temperatures is
normal.
Measure the
inlet and outlet
temperatures.
Temperature difference 10 degrees
6
Error is not displayed
Check the 7 seg-
ment LED display
Error blinking or no error code
display
9.1.3 Error displays
• When error occurs, “Err” and “Number of errors occurred” are alternately displayed on
the 7 segment display every 1 second.
• For the content of error, please refer to the “10.2. Error codes”.
• When error codes are displayed, all the error codes can be confirmed by pressing the
“SELECT” button.
Example:
When “Indoor unit capacity error [E221]” and “Indoor unit duplicate address error [E261]”
occurred.
(*1) When the address of the overlap indoor unit is
displayed, press and hold the “ENTER” button
for more than 3 seconds.
(*2) When errors other than the address of the
overlap indoor unit exist, press “SELECT” but-
ton to switch to the next error.
If error occurs, it will display “-”.
[Ad + address number]
9.2. Pre-check for test run
Before the test operation, check the following items.
(1) Is there a gas leakage? (At pipe connections {fl ange connections and brazed areas})
(2) Is the system charged with the specifi ed volume of refrigerant?
(3) Is the refrigerant system address correct?
(4) Is a breaker installed at the power supply cable of outdoor unit?
(5) Are the cable connected to the terminals without looseness, and in accordance with
the specifi cations?
(6) Are the initial settings of the switches of the outdoor unit correctly confi gured?
(7) Is the 3-way valve of the outdoor unit open? (Gas pipe and liquid pipe)
(8) Is power supplied to the crank case heater for more than 12 hours? Electricity current
in short period of time may result in compressor damage.
(9) Are all the indoor units within the same refrigerant system connected to the power?
Operating indoor units which are not connected to the power may result in malfunc-
tions.
(10) Is Indoor unit connection check performed? Test run doesn't operate if Indoor unit
connection check is not performed.
After checking that the above items are all in order, refer to
“9.3. Test run method” to test operation the unit.
If there are problems, adjust immediately and recheck.
9.3. Test run method
Be sure to configure test run settings only when the outdoor unit has stopped operating.
• Depending on the communication status between the indoor and outdoor units, it may
take several minutes for the system to start operating after settings for the test run are
complete.
• After the test run settings are complete, the outdoor unit and the connected indoor
units will start operating. Room temperature control will not activate during test opera-
tion (continuous operation).
• If a knocking sound can be heard in the liquid compression of the compressor, stop
the unit immediately and then energize the crank case heater for a sufficient length of
time before restarting the operation.
Perform test operation for each refrigerant system.
You can set “cooling test operation" or “heating test operation” with the push button on the
outdoor unit PC board.
