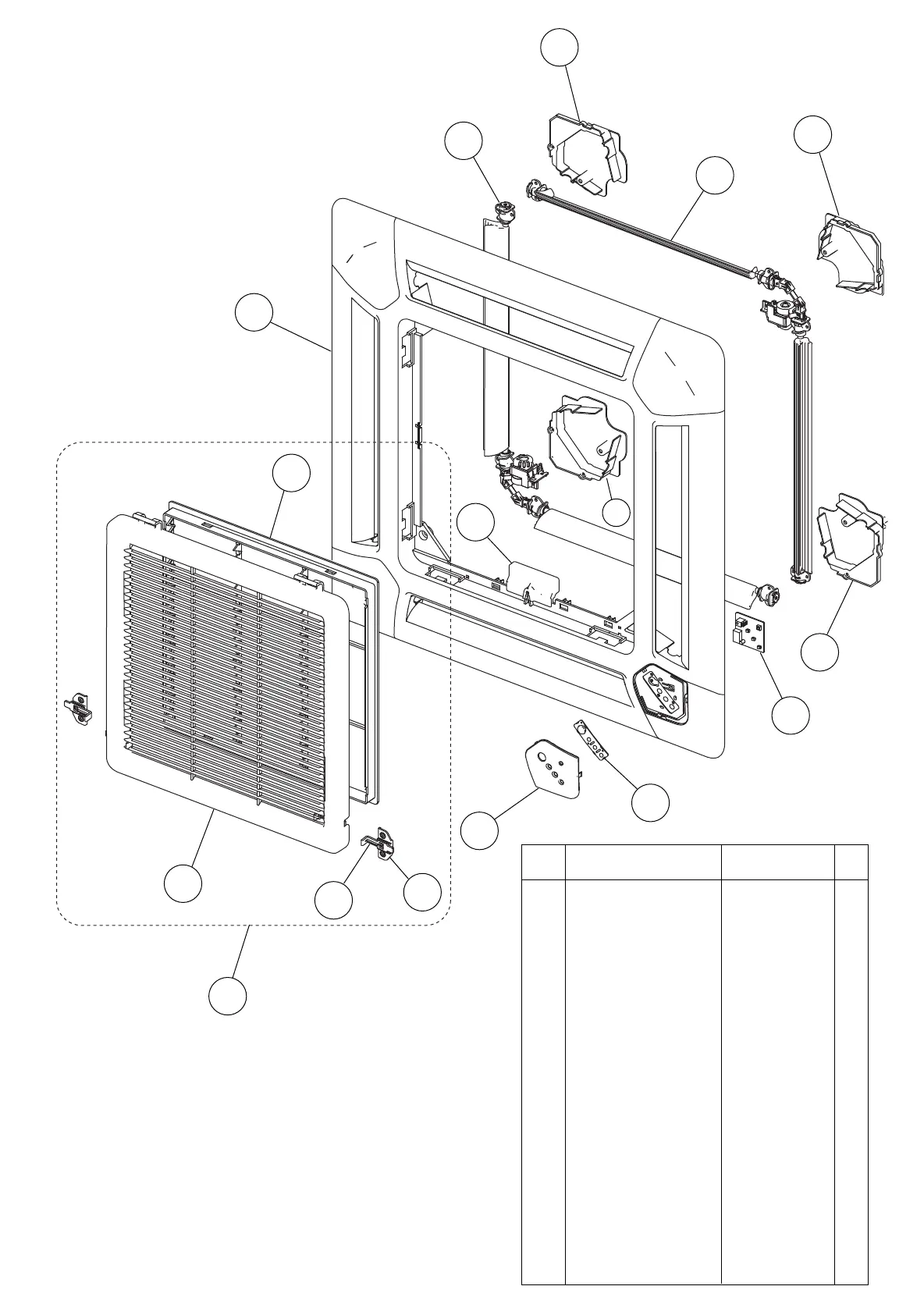

DECORATION PANEL
UTG-CCGF
PARTS
Ref. Description
1 Decoration Panel
without Insulations
9375525033
2 Display Panel 9375529123
3 Receiver Window 9375547011
4 Intake Grille 9375531027
5 Long Life Filter 9375533014
7 Flap Total Assy 9377760029
8 Hook Bracket 9375546014
9375532024
9375530013
9 Grille Hook
10 Panel Cover
without Insulations
11 Indicator PCB 9707371031
12 Connector Cover 9375549015
13 Intake Grille Assy 9375726027
