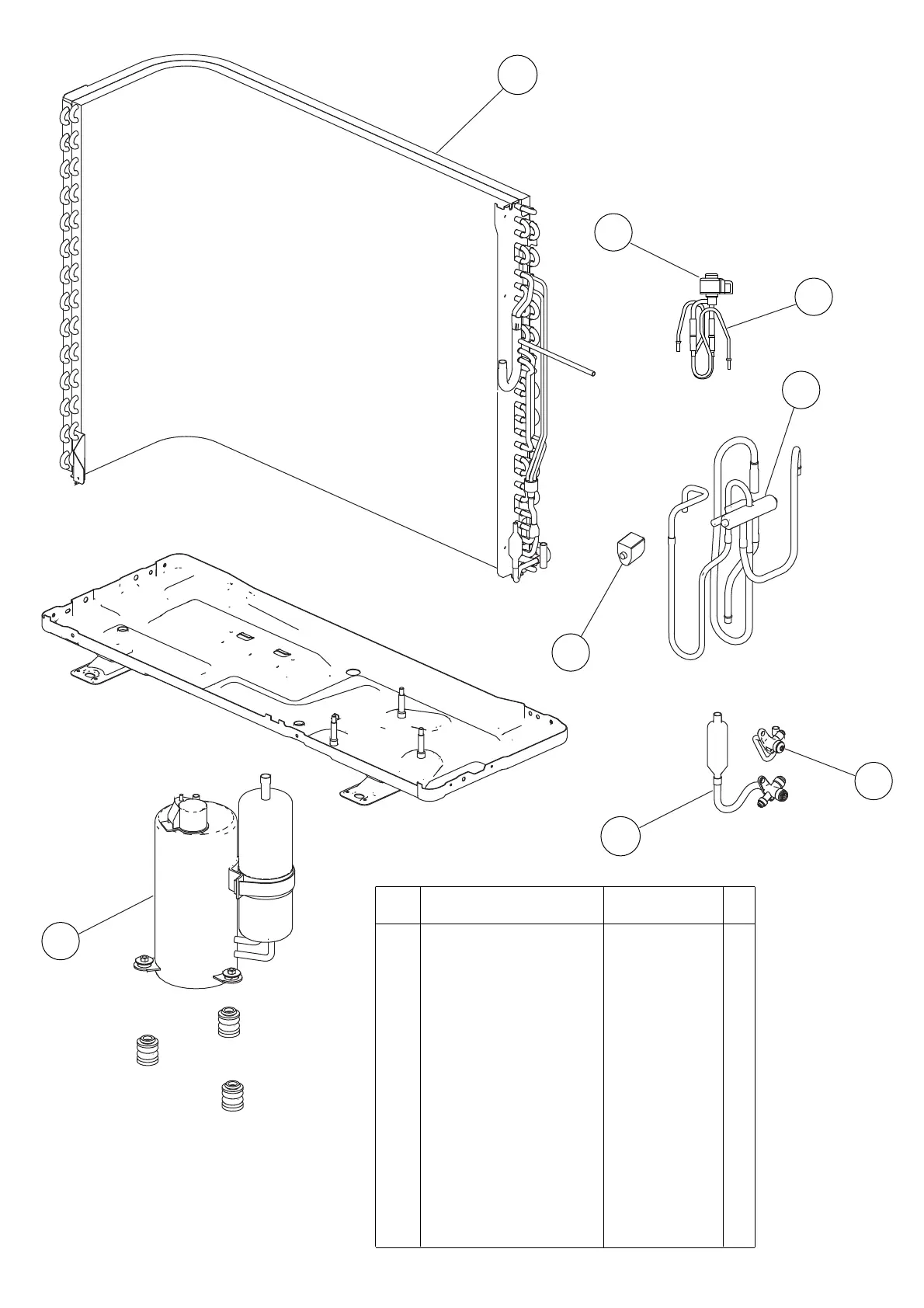

OUTDOOR UNIT
2013.02.28
20
22
Compressor Assy
9317117005
24
3-way Valve Sub Assy
9317109000
27
Pulse Motor Valve Assy
9332368000
4-way Valve Assy
9317110020
26
Solenoid
9970110047
21
Condenser Total Assy
9317089135
28
Expansion Valve Coil
9970095030
25
23
2-way Valve Assy
9332371000
Ref.
Description
Part number
22
21
23
27
24
28
25
26
20
22
Table of Contents
Table of Contents
1
Cassette Type
1
Indoor Unit
1
Specifications
2
Dimensions
3
Refrigerant System Diagram
5
Circuit Diagram
6
Indoor Pcb Circuit Diagram
7
Outdoor Pcb Circuit Diagram
11
Error Detection
13
Parts (Decoration Panel)
15
Parts (Indoor Unit)
17
Parts (Outdoor Unit)
20
Accessories
23
