Fujitsu AOUG36LMAS1 Design & Technical Manual

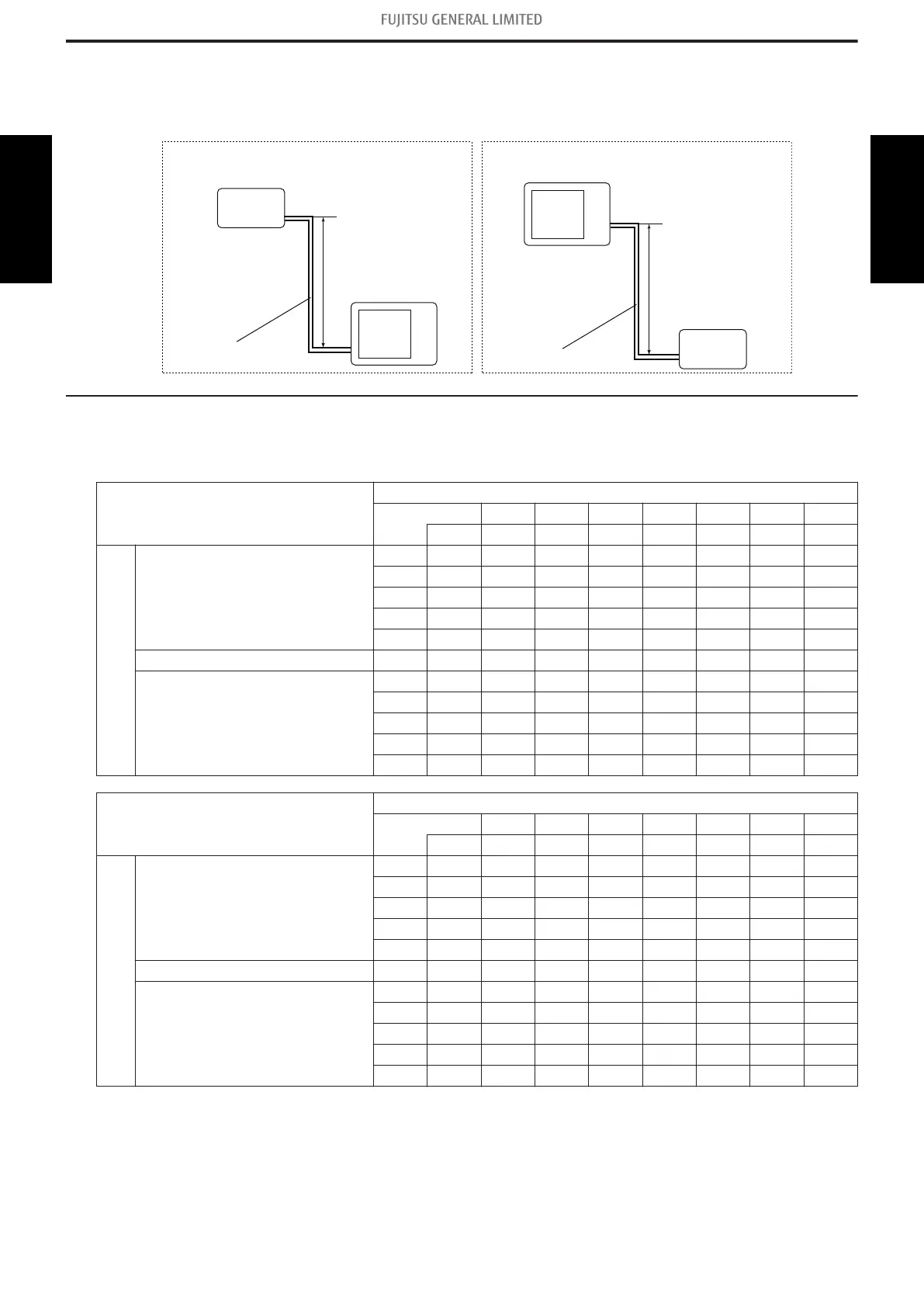

6. Capacity compensation rate for pipe length and height
difference
Height difference H
Indoor unit is higher than outdoor unit *
1
Indoor unit is lower than outdoor unit *
2
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
H H
6-1. Models: AOU24RGLX and AOU30RGLX
NOTE: Values mentioned in the table are calculated based on the maximum capacity.
COOLING
Pipe length
m
5 7.5 10 20 30 40 50
ft 16 24 32 65 98 131 164
Height difference H
Indoor unit is higher than outdoor
unit *1
30 98 — — — — 0.913 0.899 0.881
20 65 — — — 0.941 0.929 0.914 0.896
10 32 — — 0.974 0.957 0.944 0.930 0.911
7.5 24 — 0.988 0.978 0.960 0.948 0.934 0.914
5 16 0.998 0.992 0.982 0.964 0.952 0.938 0.919
0 0 1.000 1.000 0.989 0.972 0.960 0.945 0.926
Indoor unit is lower than outdoor
unit *2
-5 -16 1.000 1.000 0.989 0.972 0.960 0.945 0.926
-7.5 -24 — 1.000 0.989 0.972 0.960 0.945 0.926
-10 -32 — — 0.989 0.972 0.960 0.945 0.926
-20 -65 — — — 0.972 0.960 0.945 0.926
-30 -98 — — — — 0.960 0.945 0.926
HEATING
Pipe length
m
5 7.5 10 20 30 40 50
ft 16 24 32 65 98 131 164
Height difference H
Indoor unit is higher than outdoor
unit *1
30 98 — — — — 0.939 0.922 0.907
20 65 — — — 0.963 0.939 0.922 0.907
10 32 — — 0.999 0.963 0.939 0.922 0.907
7.5 24 — 1.000 0.999 0.963 0.939 0.922 0.907
5 16 1.000 1.000 0.999 0.963 0.939 0.922 0.907
0 0 1.000 1.000 0.999 0.963 0.939 0.922 0.907
Indoor unit is lower than outdoor
unit *2
-5 -16 1.000 0.995 0.995 0.958 0.934 0.917 0.903
-7.5 -24 — 0.983 0.992 0.955 0.932 0.915 0.900
-10 -32 — — 0.990 0.953 0.929 0.912 0.898
-20 -65 — — — 0.943 0.920 0.903 0.889
-30 -98 — — — — 0.911 0.894 0.880
- 81 -
6-1. Models: AOU24RGLX and AOU30RGLX 6. Capacity compensation rate for pipe length and height difference
OUTDOOR UNIT AOU24-30RGLX, AOUG36-48LMAS1 OUTDOOR UNIT AOU24-30RGLX, AOUG36-48LMAS1
