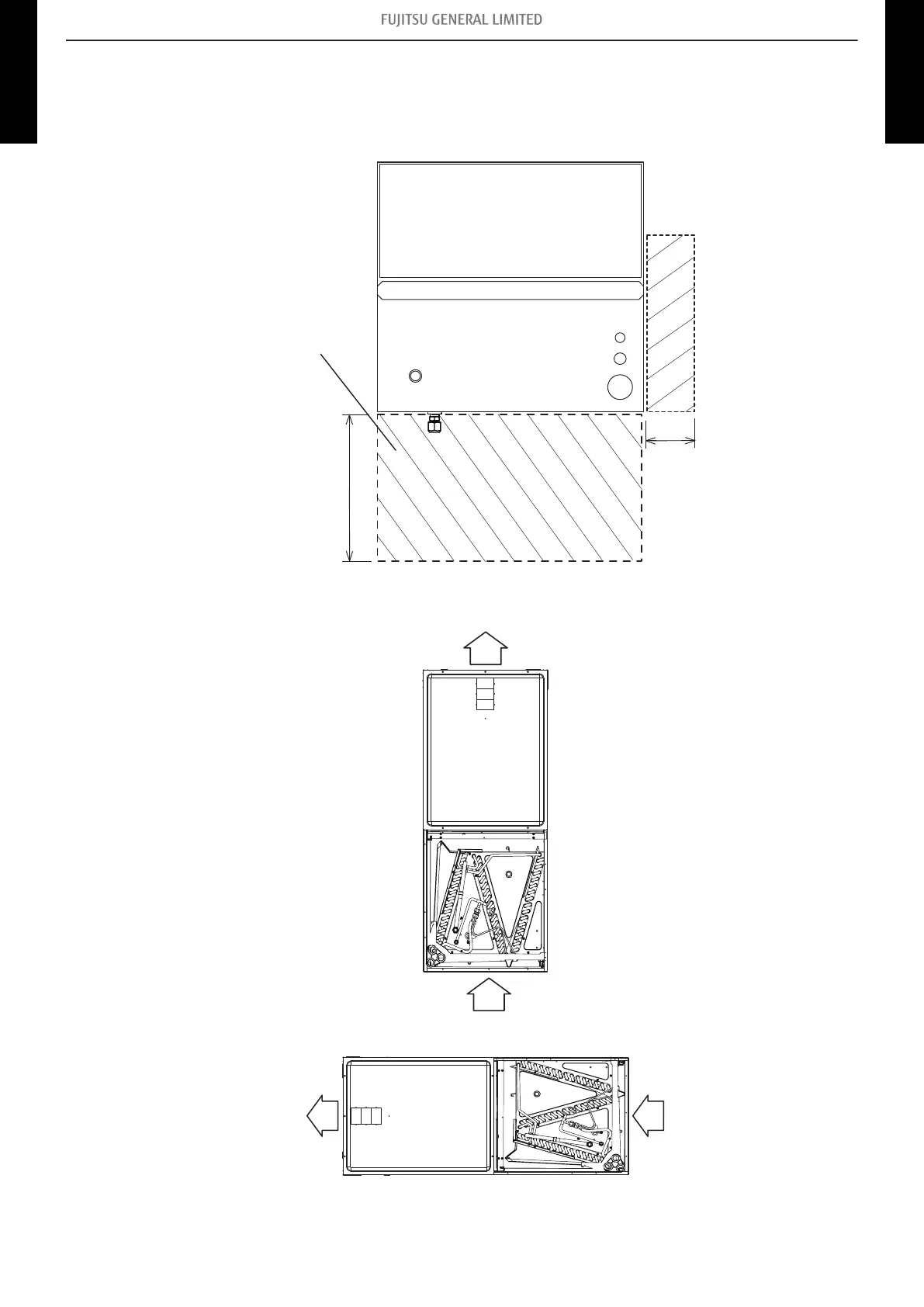

2-2. Installation space requirement
Provide sufficient installation space for product safety.
(Top side)
24 (600)
or more
Service access
4 (100)
or more
For installation method, the following 4 patterns
• Pattern A: Vertical installation, air intake port at the bottom
AIR
AIR
• Pattern B: Horizontal installation, air intake port at the right
AIR AIR
- 5 -
2-2. Installation space requirement 2. Dimensions
DUCT TYPE AMUG24-48LMAS DUCT TYPE AMUG24-48LMAS
