13. Function settings
Perform appropriate function setting locally according to the installation environment.
NOTE: Incorrect settings can cause a product malfunction.
CAUTION
• Before setting up the switch buttons, discharge the static electricity from your body.
• Never touch the terminals or the patterns on the parts that are mounted on the PCB.
13-1. Control PCB and switch buttons location

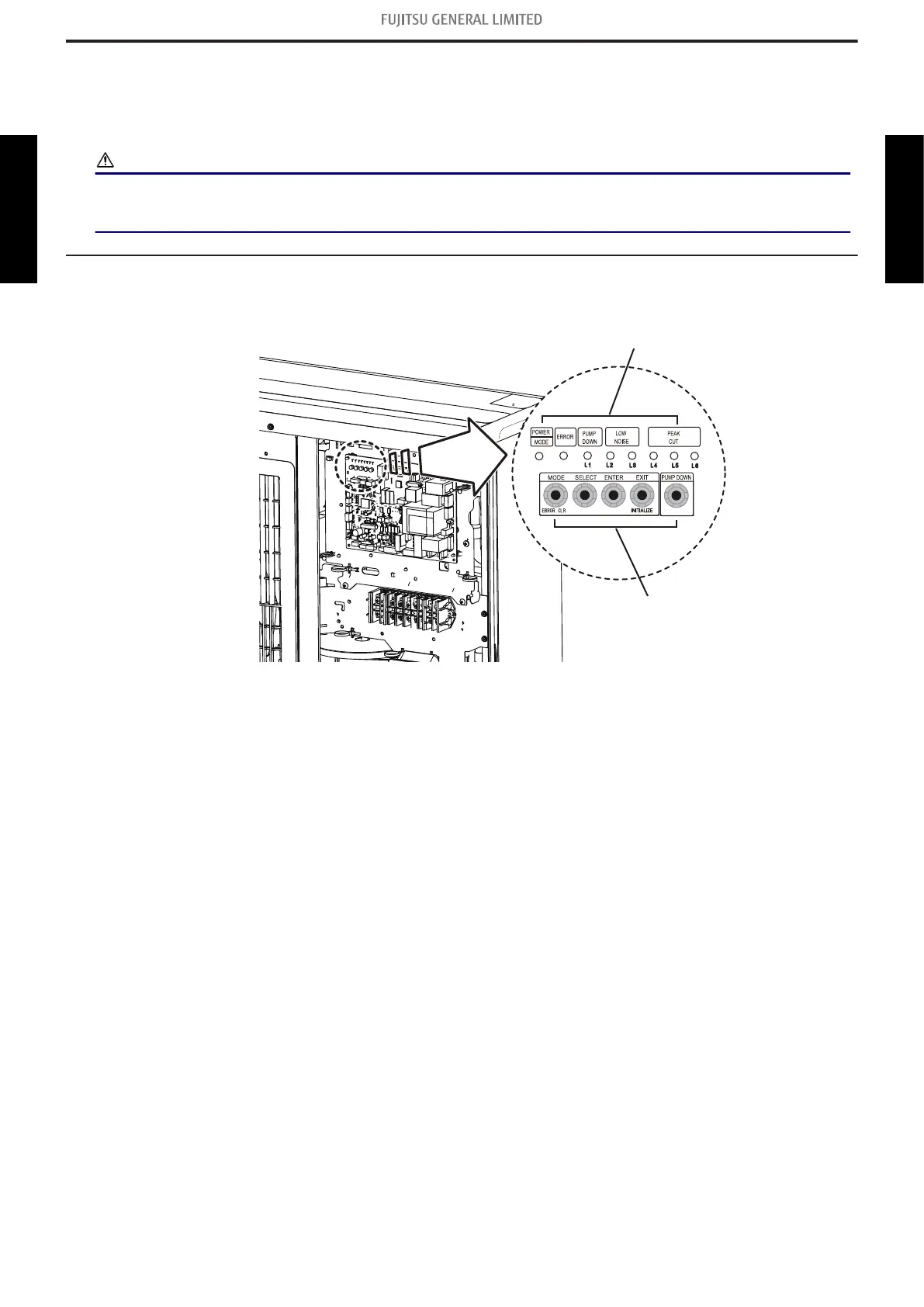

Control PCB of the outdoor unit is located as shown in the following figure.
LED lamps
Switch buttons
- 87 -
13-1. Control PCB and switch buttons location
13. Function settings
OUTDOOR UNIT AOUH18-24LMAS1 OUTDOOR UNIT AOUH18-24LMAS1
