2. Dimensions
2-1. Model: ASUH18LMAS
Unit: in (mm)
38-9/16 (980) 9-7/16 (240)
11 (280)
for pipe inlet
Ø3-1/8 (80)
1-15/16 (50) 1-15/16 (50)
2-3/8 (60)
16-15/16 (430)
2-1/16 (52)

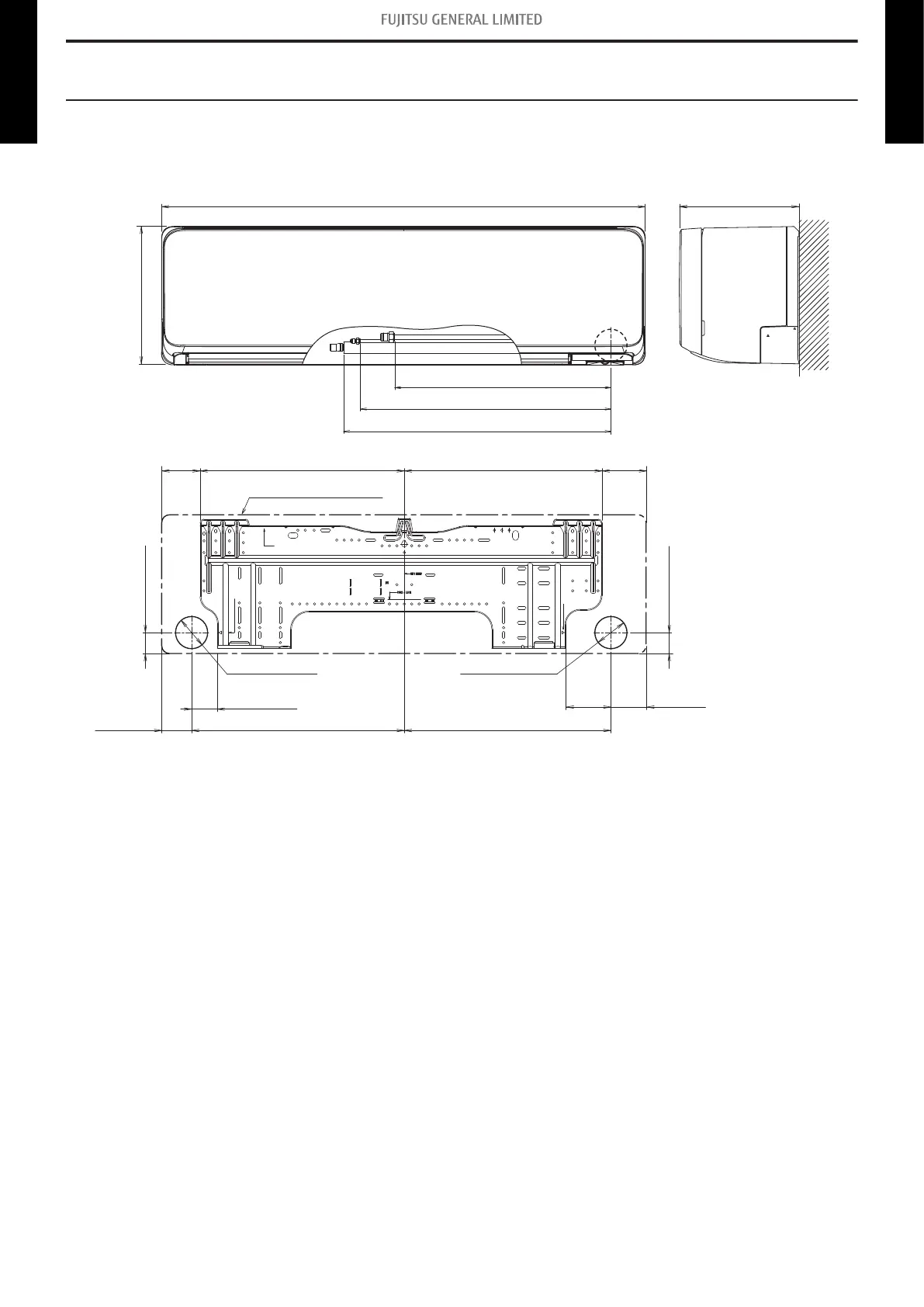

Outline of indoor unit
for pipe inlet
Ø3-1/8 (80)
2-13/16
(72)
16-7/16 (418)
3-9/16
(91)
15-3/4 (400) 3-9/16
(90)
16-1/4 (413)3-1/16
(77)
16-7/16 (417)
19 (482)
20-1/16 (510)
- 4 -
2-1. Model: ASUH18LMAS
2. Dimensions
WALL MOUNTED ASUH18-24LMAS WALL MOUNTED ASUH18-24LMAS
