Outdoor Unit High Pressure Value and Outdoor Total Electric Current Curve (Heating)
Model Name : AS*9LSBCW, AS*12LSBCW
[Condition]
Ambient
temperature
Indoor 15 - 23degC, Outdoor 2 - 12degC
Refrigerant
amount
Standard amount
Piping
7.5m (Height difference 1m)
Power
voltage
50Hz - 230V
Operation
condition
TEST mode (Heating), Hi Fan, Lower direction, Front air flow
Measuring
method
Caution
Start operation with the condition of the Indoor Unit air filter clean.
[Constant Frequency Operation Method (Test mode)]
1. Operate on Heating mode, and press TEST button of remote control.
2. Operate continuously for 30 minutes. (After 60 minutes of operation, Test mode is released automatically.)

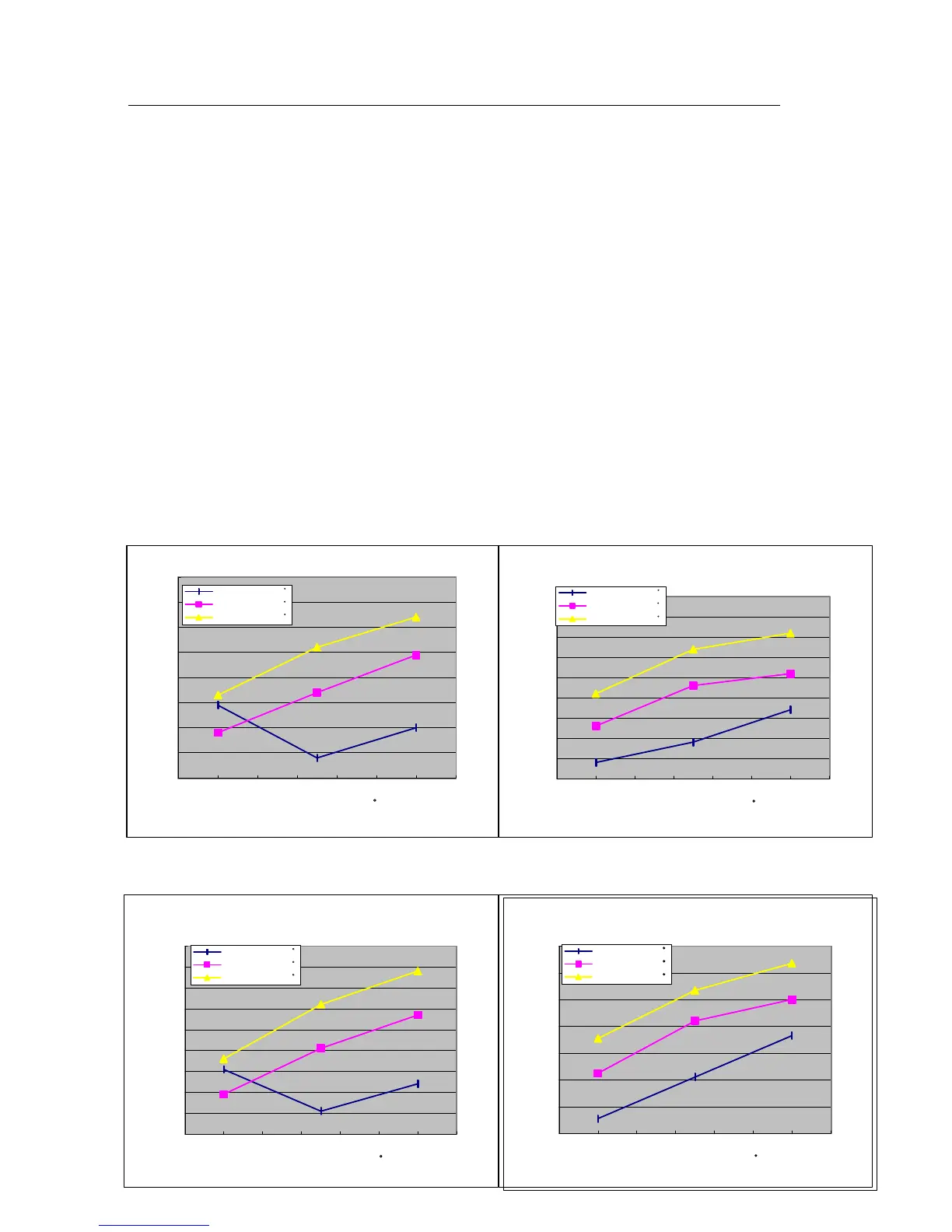

(1) Indoor/Outdoor Temperature - Outdoor High Pressure Curve
AS*9LSBCW series
AS*12LSBCW
(2) Indoor/Outdoor Temperature - Outdoor Total Electric Current Curve
AS*9LSBCW series
AS*12LSBCW
Measure the high pressure with the pressure meter at the service valve. Measure the
outdoor unit overall current with the current clamp meter at Power Cable.
2.10
2.20
2.30
2.40
2.50
2.60
2.70
2.80
2.90
0 2 4 6 8 10 12 14
Outdoor ambient temperature C
Outdoor High Pressure (Mpa)
Indoor inlet temp 15 C
Indoor inlet temp 20 C
Indoor inlet temp 23 C
3.50
3.60
3.70
3.80
3.90
4.00
4.10
4.20
4.30
4.40
0 2 4 6 8 10 12 14
Outdoor ambient temperature C
Outdoor Total Electric Current (A)
Indoor inlet temp 15 C
Indoor inlet temp 20 C
Indoor inlet temp 23 C
2.40
2.50
2.60
2.70
2.80
2.90
3.00
3.10
3.20
3.30
0 2 4 6 8 10 12 14
Outdoor ambient temperature C
Outdoor High Pressure (Mpa)
Indoor inlet temp 15 C
Indoor inlet temp 20 C
Indoor inlet temp 23 C
5.00
5.20
5.40
5.60
5.80
6.00
6.20
6.40
0 2 4 6 8 10 12 14
Outdoor ambient temperature C
Outdoor Total Electric Current (A)
Indoor inlet temp 15 C
Indoor inlet temp 20 C
Indoor inlet temp 23 C
