ROOM TEMPERATURE THERMISTOR
PIPE TEMPERATURE THERMISTOR
BLACK
BLACK
GRAY
GRAY
RED
WHITE
LOUVER
RED
ORANGE
YELLOW
PINK
BLUE
RED
BLACK
BLUE
YELLOW
WHITE
FAN MOTOR
AUTO RESTART
REMOTE CONTROL
CUSTOM CODE
GREEN
GREEN
TERMINAL BOARD
BLUE
RED
WHITE
BROWN
BLACK
GRAY
GRAY
THERMAL FUSE
WHITE
WHITE
WHITE
WHITE
WHITE
POWER SOURCE
220 / 240V
50Hz
GREEN / YELLOW
INDICATOR PCB
EZ-00219HSE-D (F)
I C 1
uPD780024SGB-X09
CONTROLLER PCB ASEMBLY (MAIN PCB)
ASY9LSACW : EZ-00219HSE-C
ASY12LSACW : EZ-0021CHSE-C
INDOOR PRINTED CIRCUIT BOARD

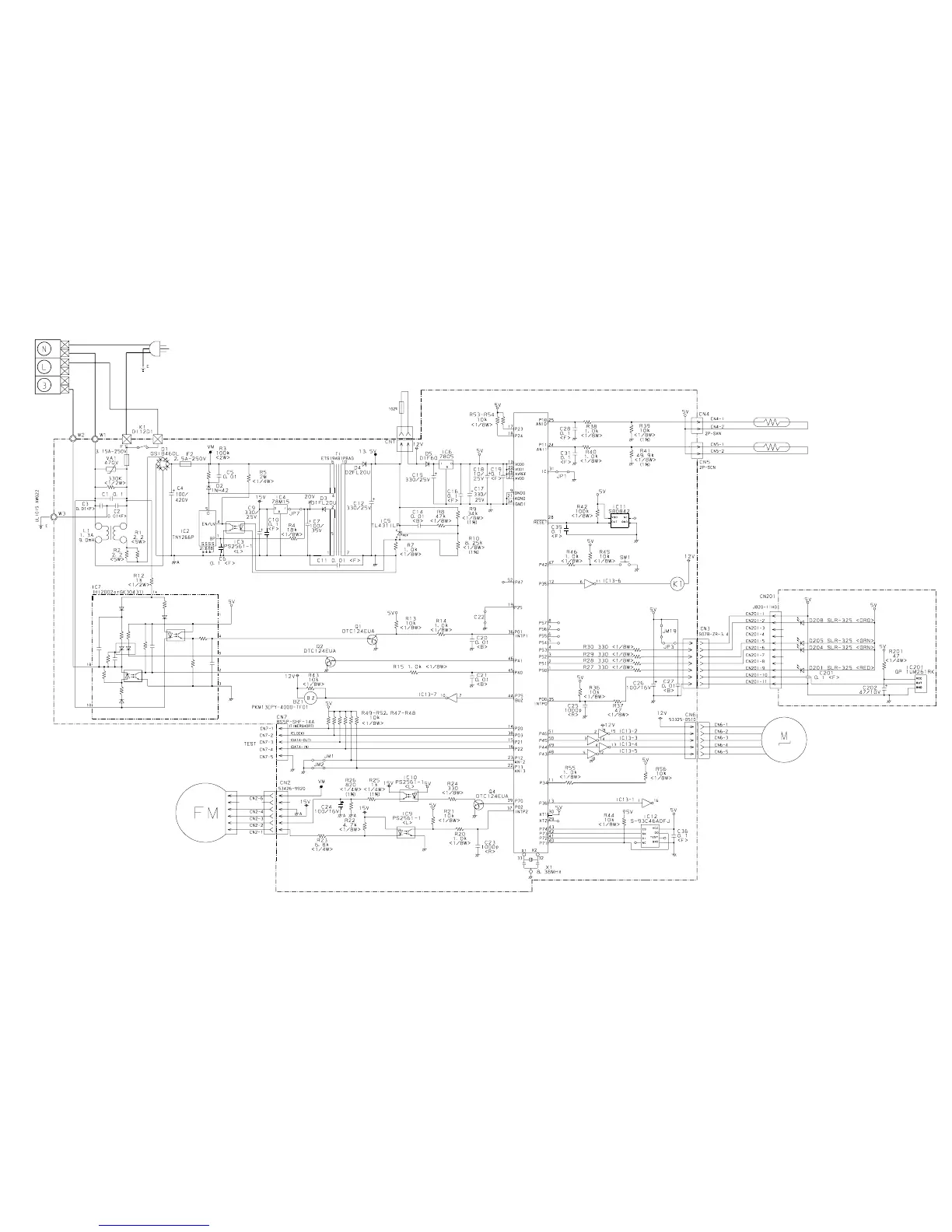

CIRCUIT DIAGRAM
7
2004.10.07
