MB90462-117
N200500K
SC-10-55JH
POWER SOURCE
220 - 240V
50Hz
AOY12LSAC
AOY9LSAC
CONTROLLER PCB ASSEMBLY ( MAIN PCB)
AOY9LSAC : EZ-002LHUE-C
AOY12LSAC : EZ-002GHUE-C

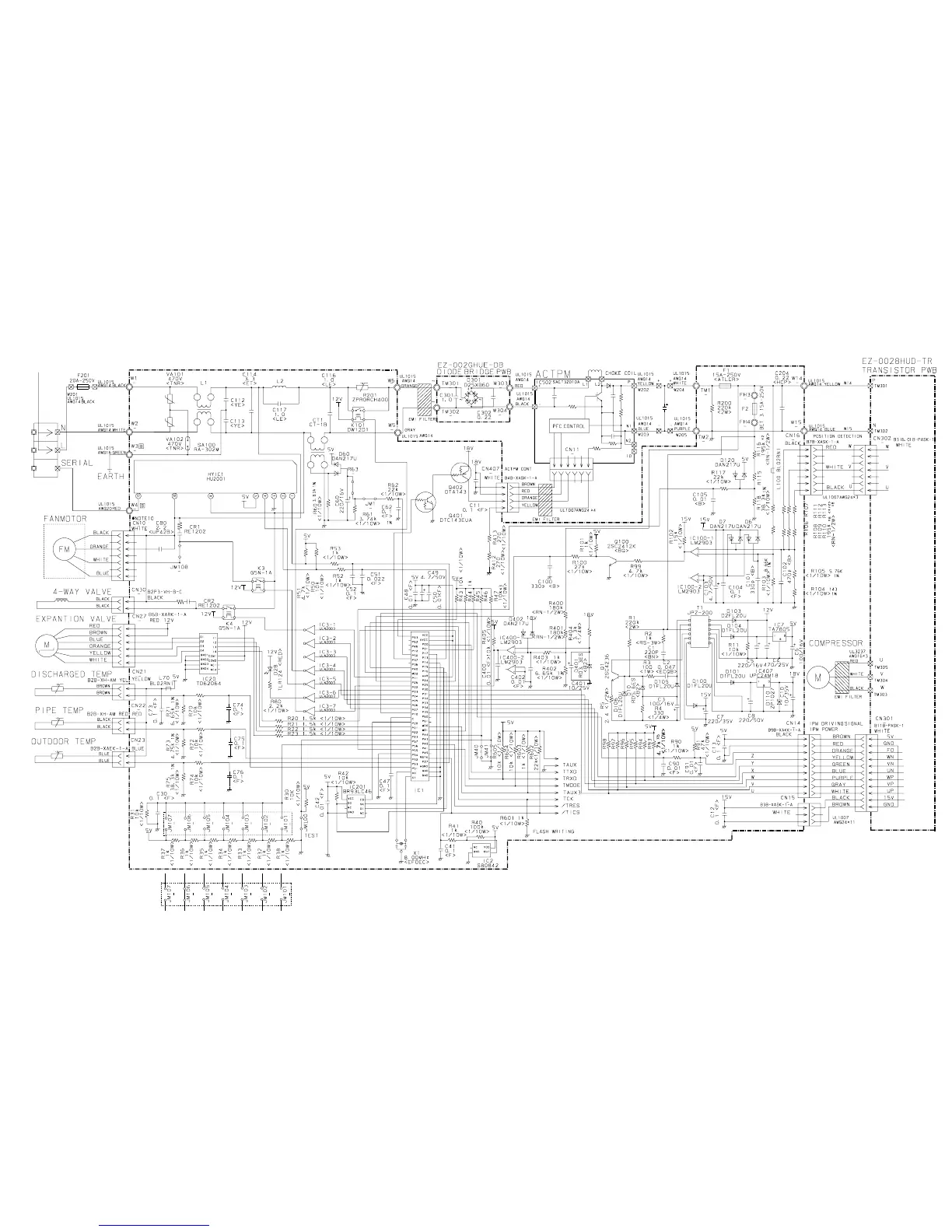

OUTDOOR PRINTED CIRCUIT BOARD
CIRCUIT DIAGRAM
8
2004.10.07
