INDOOR UNIT

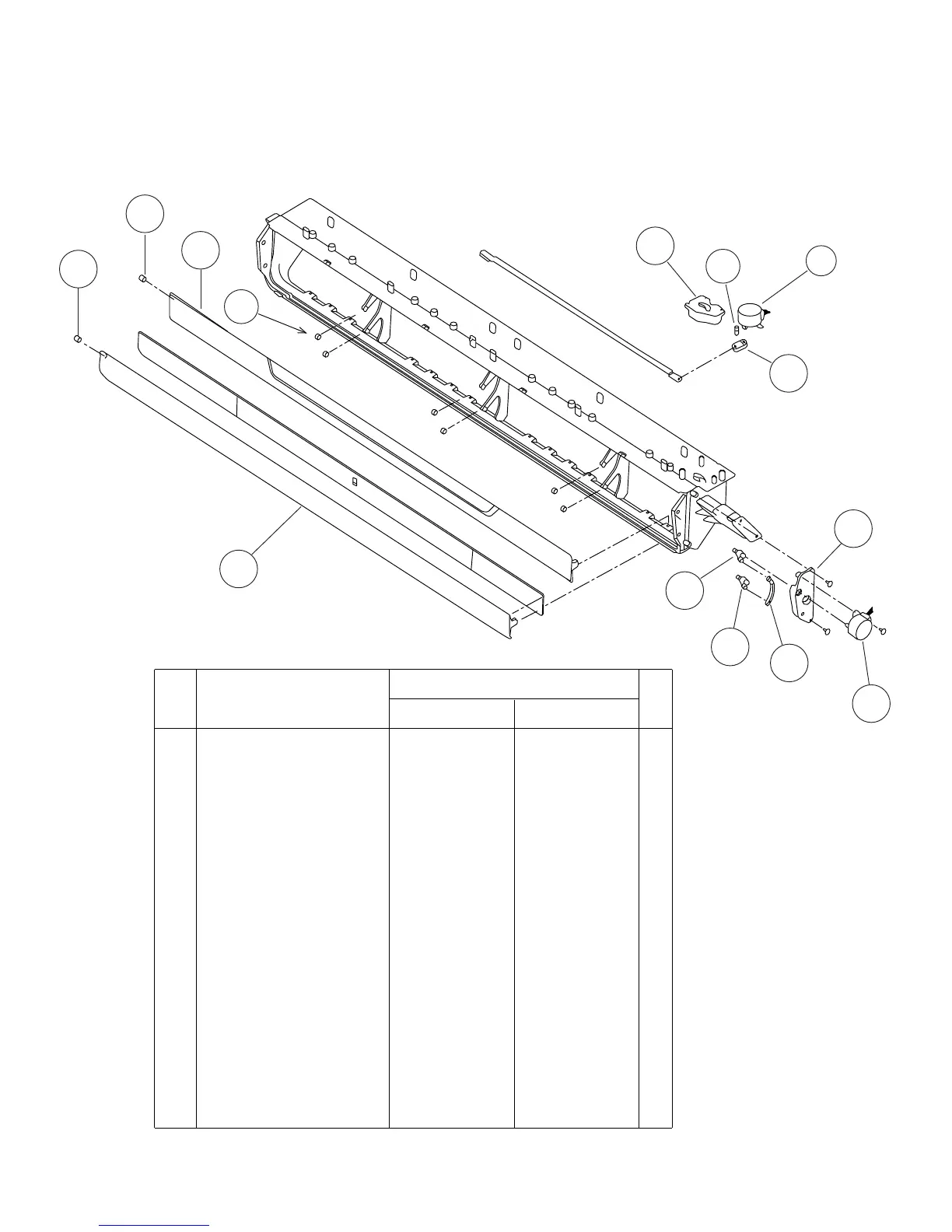

Flap base sub assy
2009.07.13 24
46
48
49
51
50
53
44
45
41
41
43
52
47
42
43 Flap (Upper) F 9358538012
44 Kit (Flap Lower) 9372671016
41 Bushing 9357942001
42 Bushing C 9358553008
46 Louver Link 9358556009
47 Louver Shaft 9358557006
48 Louver Link Cover 9358558003
52 Flap Link-Upper (Step V) 9358551004
53 Flap Link-Lower (Step V) 9358552001
51 Motor Rod-A (Step V) 9358550007
50 Motor Base 9358562000
45 Step Motor H 9900297015
49 Step Motor-V 9900362010
9358538029
9372671023
9357942001
9358553008
9358556009
9358557006
9358558010
9358551004
9358552001
9358550007
9358562017
9900297015
9900362010
Ref. Description
Part number
LAT LBT
