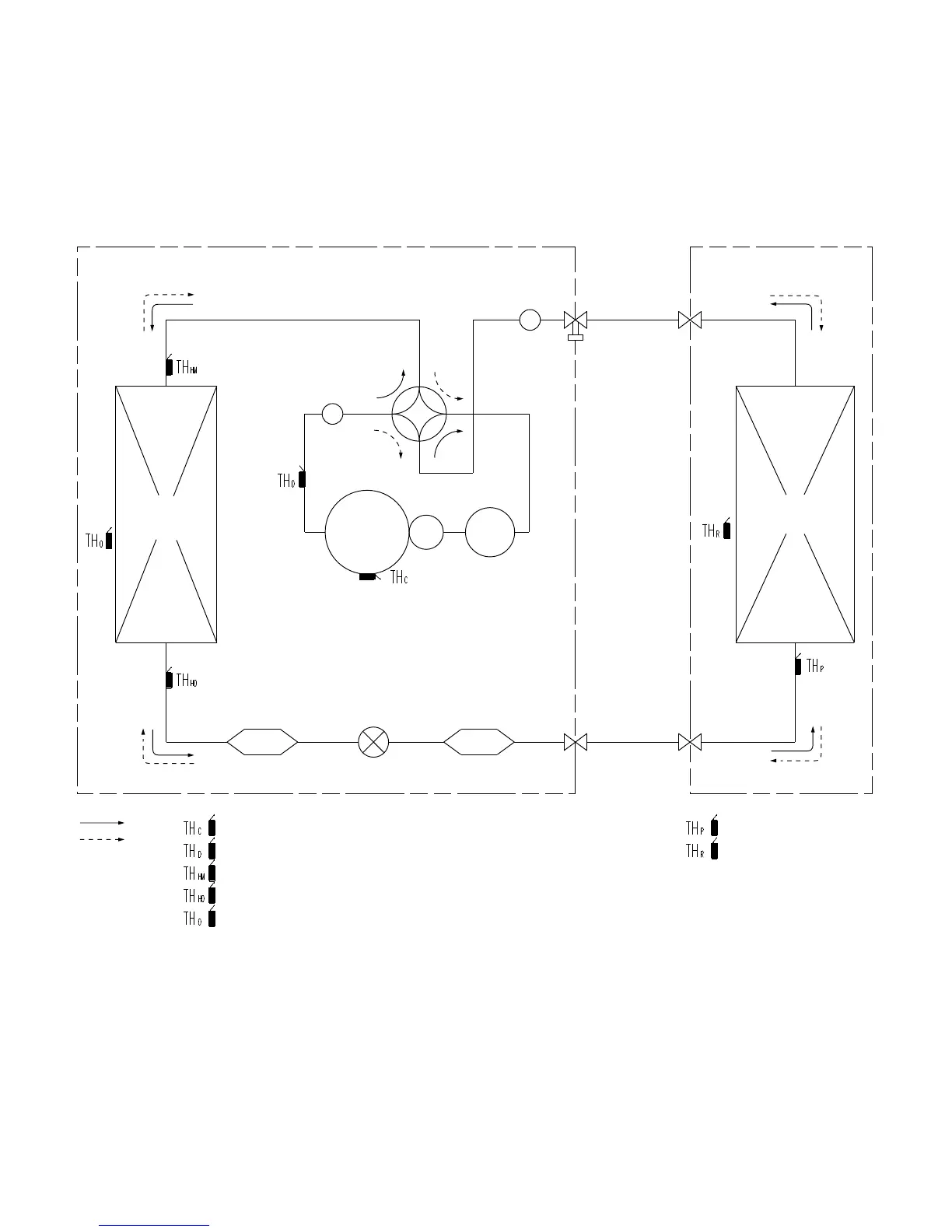

REFRIGERANT SYSTEM DIAGRAM
OUTDOOR UNIT
INDOOR UNIT
2008.06.26
5
Strainer
Strainer
4-Way
valve
2-Way
valve
3-Way
valve
Muffler
Muffler
Expansion
valve
Compressor
Accumulator
Heat exchanger
Heat exchanger
Cool
Heat
: THERMISTOR (COMPRESSOR TEP.)
: THERMISTOR (PIPE TEP.)
: THERMISTOR (ROOM TEP.)
: THERMISTOR (DISCHARGE TEP.)
: THERMISTOR (HEAT EXCHANGER MED TEP.)
: THERMISTOR (HEAT EXCHANGER OUT TEP.)
: THERMISTOR (OUTDOOR TEP.)
Refrigerant pipe diameter
ABYF18L_T / AOY_18LA_L
Liquid : 1/4" (6.35 mm)
Gas : 1/2" (12.70 mm)
ABYF24L_T / AOY_24LA_L
Liquid : 1/4" (6.35 mm)
Gas : 5/8" (15.88 mm)
