5V
PHA201
P I C-37143TH5
JM201
C201
0.1
<F>
C202
10/
16V
+
SW201
EVQPAG04K
CN201
08 / 08 JC / XMR
1430 L=300
R201 - R203
330 <1/4W> x 3
D207 EBR3864X <RED>
D205 EMPG3863X <GREEN>
D206 EMAA3863X <ORANGE>
1
2
3
4
5
6
7
8
OPERATION
TIMER
LOUVER
LOUVER
5V
REMOTE SIGNAL
GND
MANUAL AUTO SWITCH
BROWN
RED
ORANGE
YELLOW
WHITE
BLUE
PURPLE
GRAY
TO MAIN PCB
1
2
3
4
2
1
3
VCC
OUT
GND
MANUAL AUTO SWITCH
2009.12.02 9

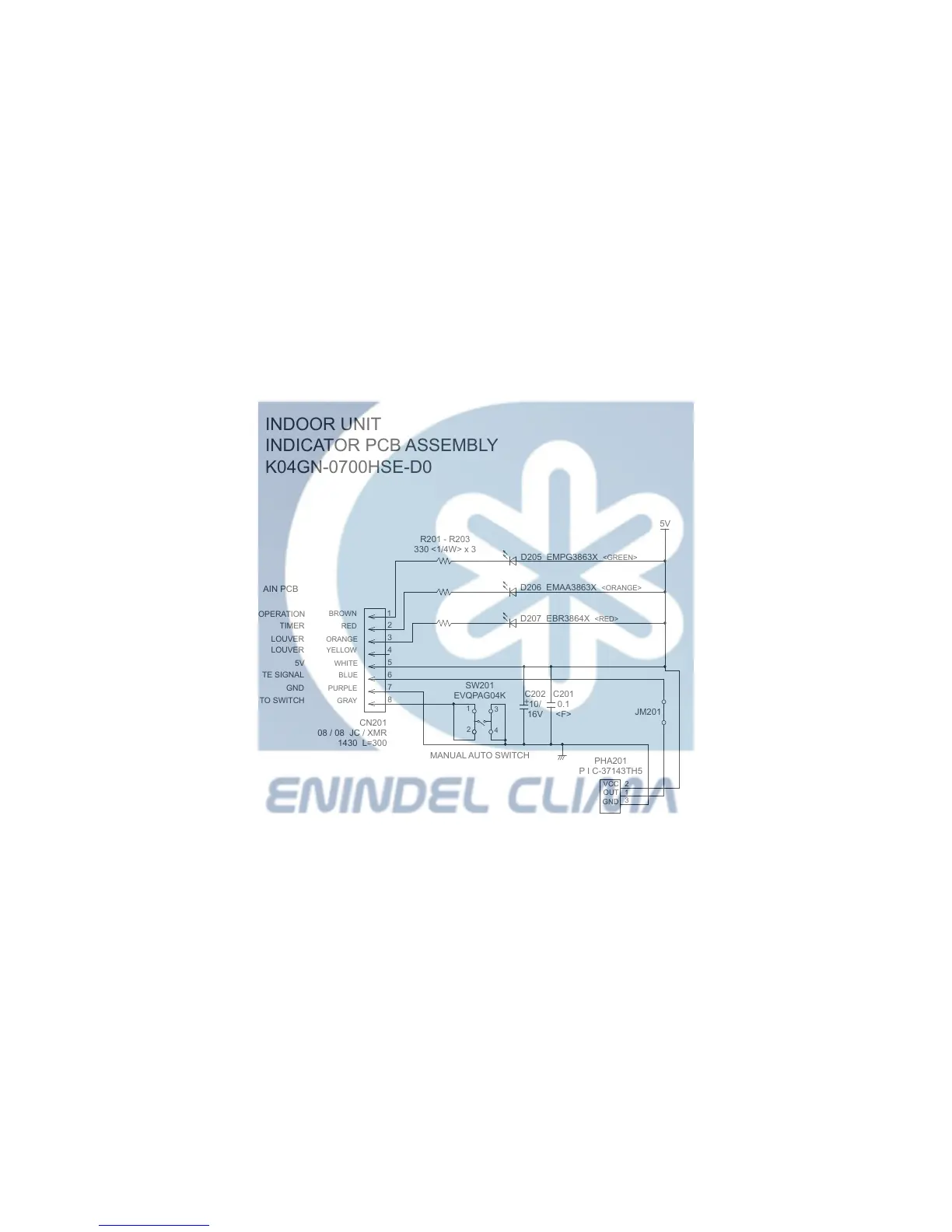

INDOOR UNIT
INDICATOR PCB ASSEMBLY
K04GN-0700HSE-D0
