INDOOR UNIT
2007.10.26 18

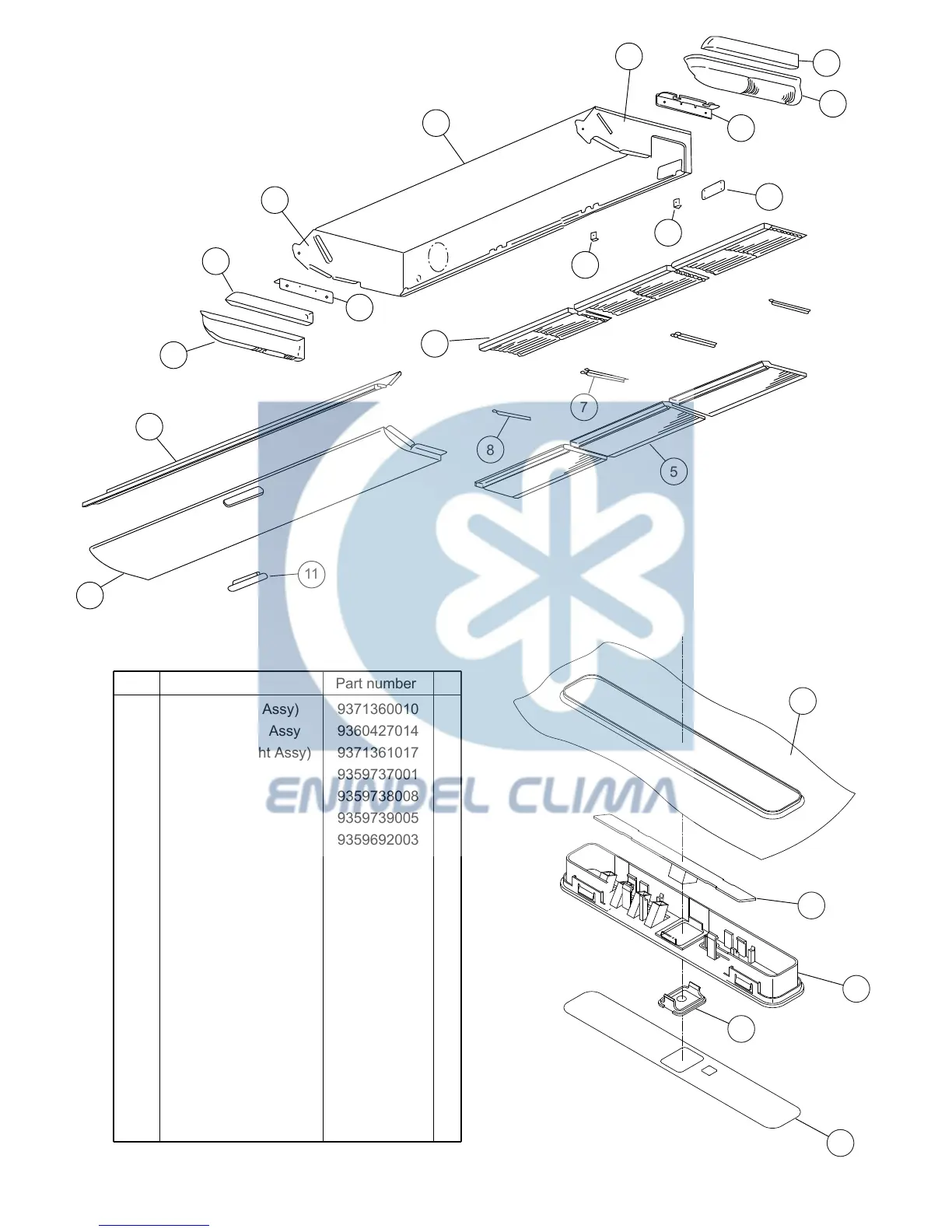

PARTS
10
11
12
20
9
6 Air Filter 9359739005
1 Kit (Base Sub Assy) 9371360010
9 Front Panel 9359734000
5 Intake Grille 9359738008
15 Hanger Bracket 9359742005
13 Hole Cover 9359691006
20 Badge 9359735083
14 Hinge Plate (Grille) 9359694007
7 Filter Guide R 9359692003
8 Filter Guide L 9359693000
16 Cover (Decoration)-R 9359744009
17 Cover (Decoration)-L 9359745006
10 Indicator PCB Assy 9705891043
2 Panel Left Sub Assy 9360427014
3 Kit (Panel Right Assy) 9371361017
4 Cover (Top) 9359737001
18 Kit (Side Cover R) 9371364018
19 Kit (Side Cover L) 9371365015
12 Receiver Cover 9359714002
11 PCB Holder 9359736004
Ref. Description Part number
