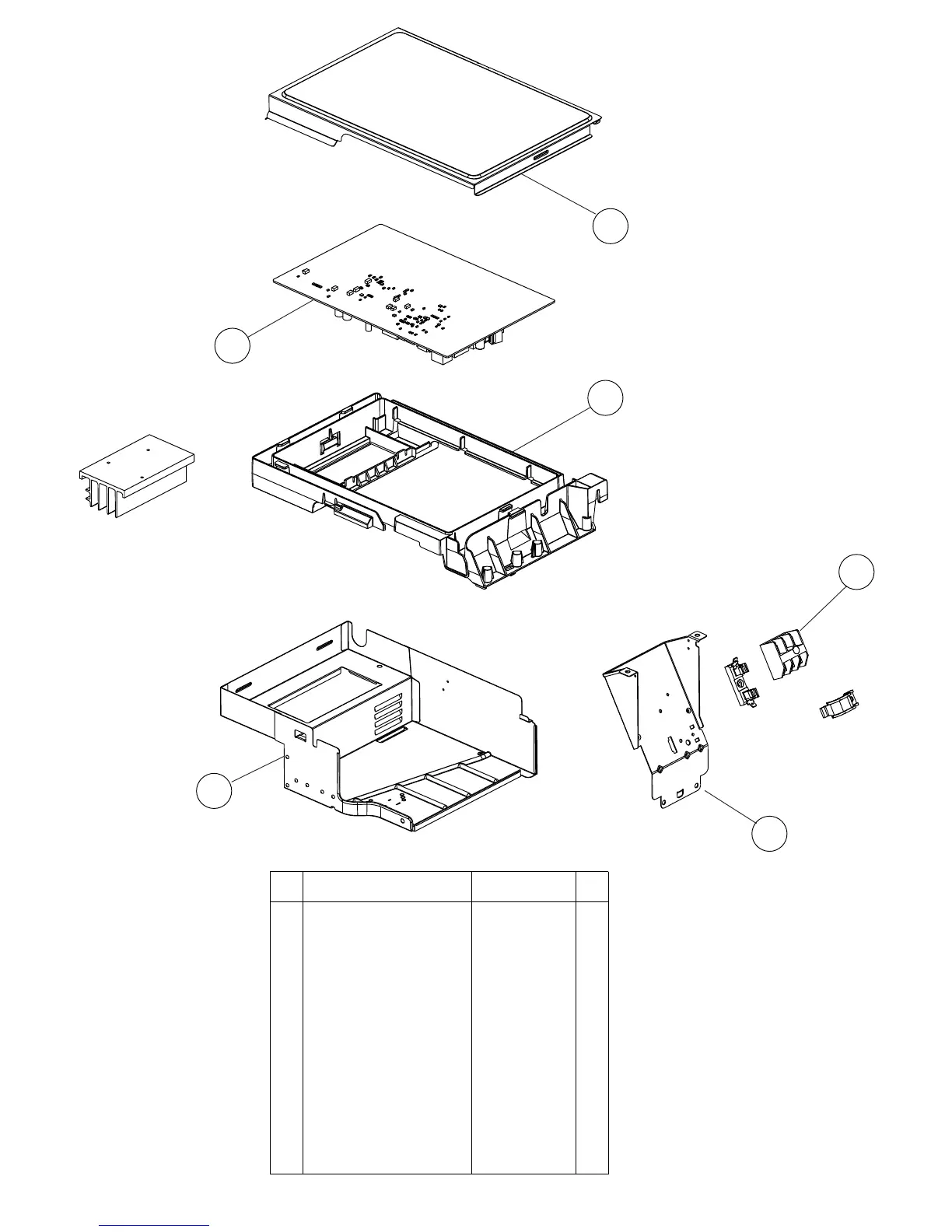

OUTDOOR UNIT
2011.01.24
19
--
Outdoor Thermistor
9900565008
45
Terminal Bracket
9317816038
Terminal
9900435028
46
Controller PCB Assy (07)
--
Thermistor Assy
9900628000
41
Sealed Panel
9318181012
44
9332247008
Inverter Case Assy
42
9708683096
Controller PCB Assy (09)
42
9708683102
43
PCB Holder
9318182002
Ref.
Description
Part number
19
21
Table of Contents
