3. Wiring diagrams

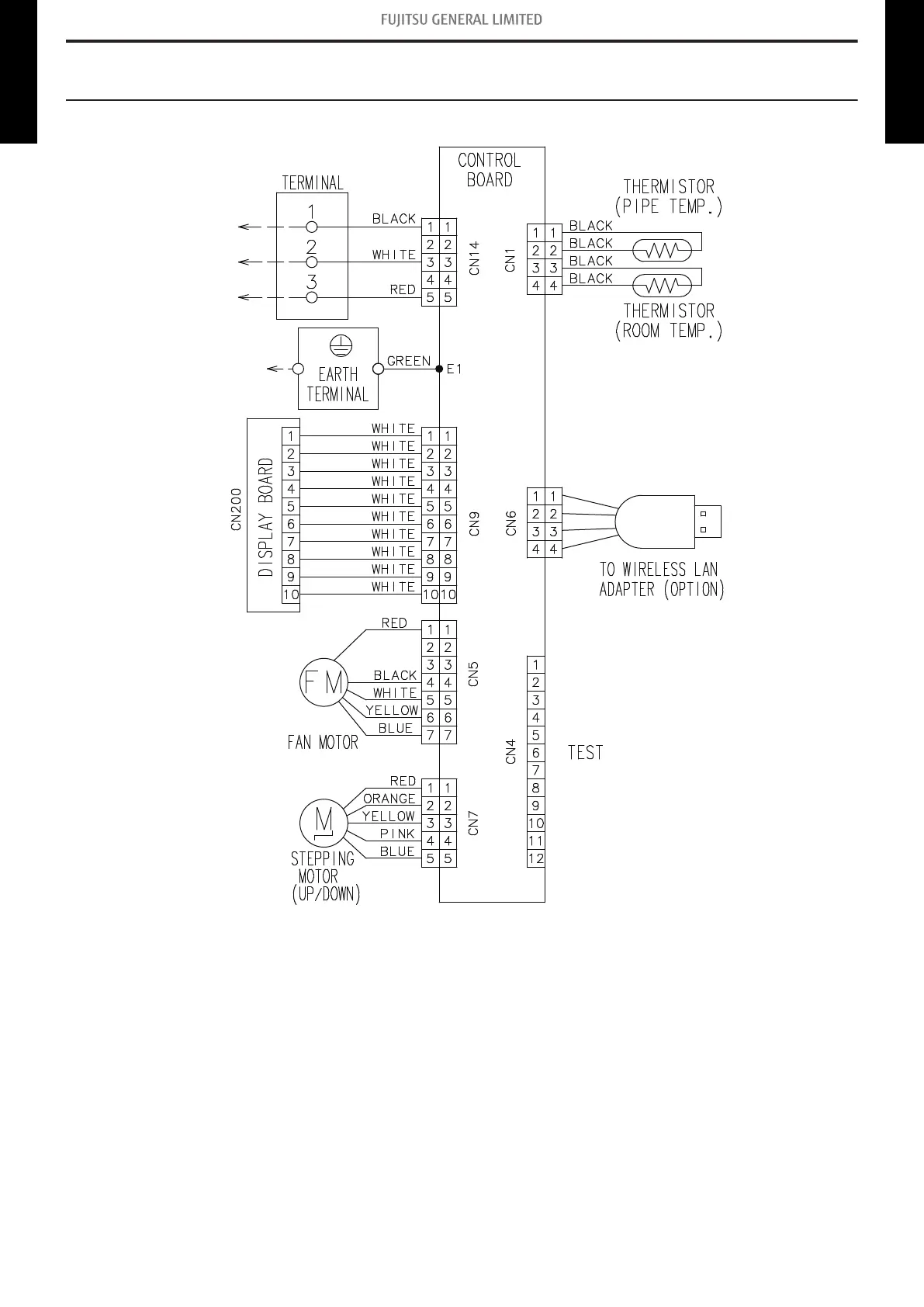

3-1. Models: ASYG07KPCA, ASYG09KPCA, and ASYG12KPCA
- 6 -
3-1. Models: ASYG07KPCA, ASYG09KPCA, and ASYG12KPCA 3. Wiring diagrams
WALL MOUNTED
ASYG07-12KPCA
WALL MOUNTED
ASYG07-12KPCA
