35
34
36
37
32
33
15
31

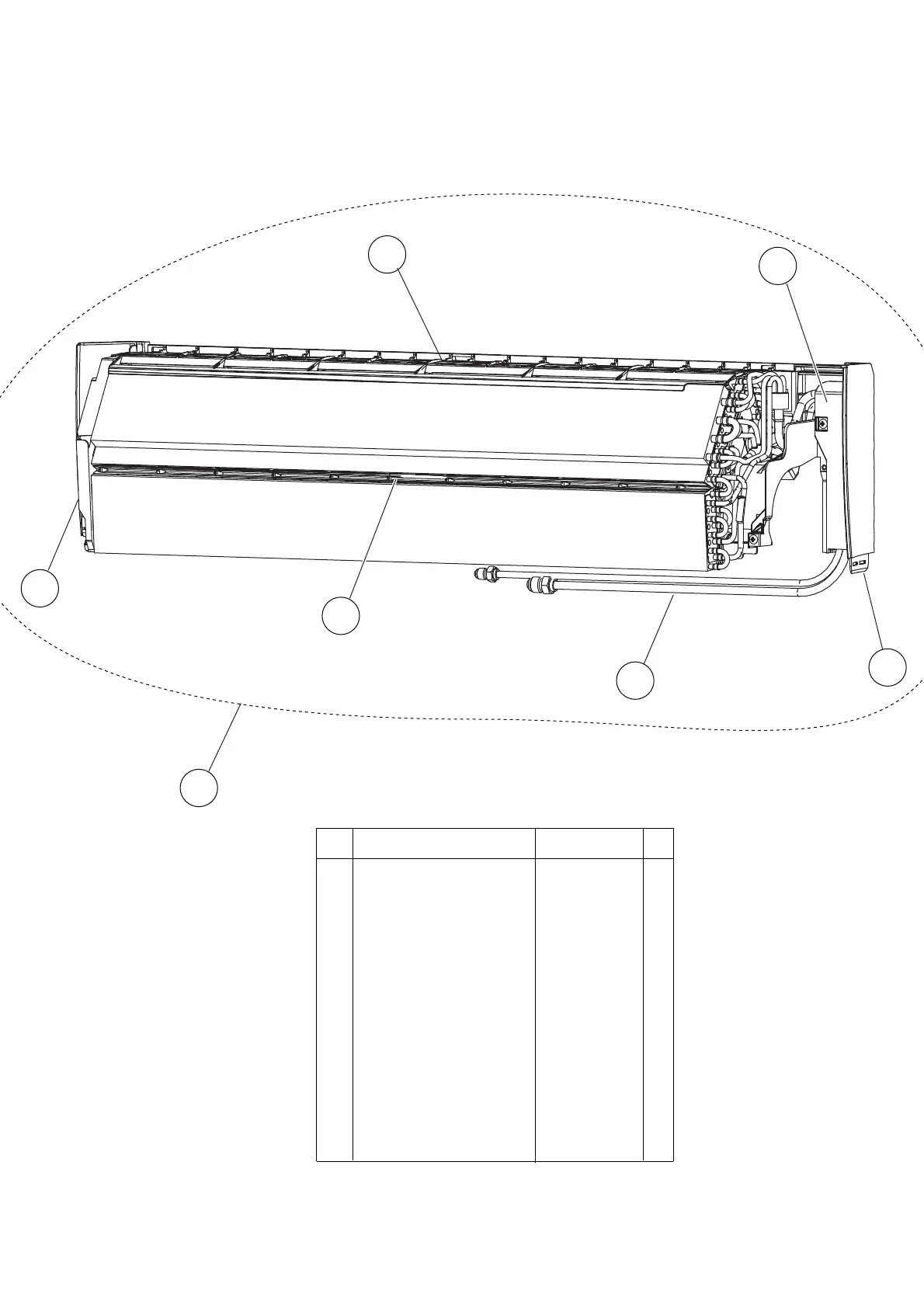

Evaporator Total Assy (12)
9319327006
31
Evaporator Total Assy (14)
9319327013
32
Joint Pipe Assy (14)
9319322018
32
Joint Pipe Assy (12)
9319322001
33
Joint Pipe Holder
9318901009
35
34
Filter Guide
9318887006
36
Evaporator Holder L
9318875003
Base
9318874006
37
Air Seal
9319295008
Ref.
Description
Part number
INDOOR UNIT
Evaporator
2011.03.11
31
15
17
Table of Contents
Table of Contents
1
Wall Mounted Type
1
Specifications
2
Dimensions
3
Refrigerant System Diagram
4
Circuit Diagram
5
Indoor Pcb Circuit Diagram
6
Outdoor Pcb Circuit Diagram
9
Indoor Unit Display
12
Error Code
12
Error Detection
12
Parts (Indoor Unit)
14
Parts (Outdoor Unit)
19
Accessories
22
